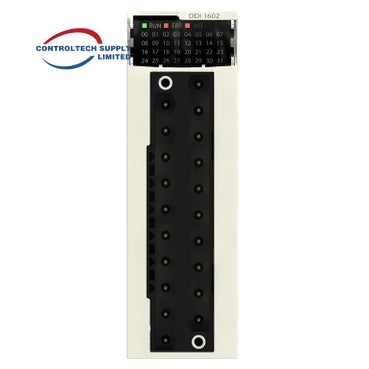

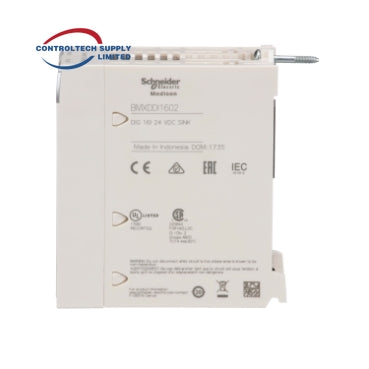

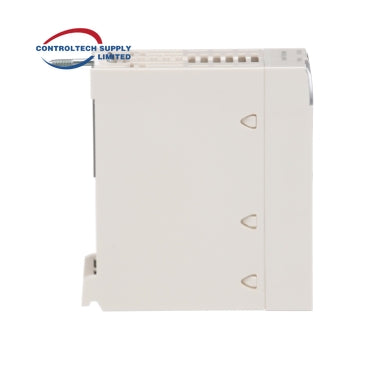

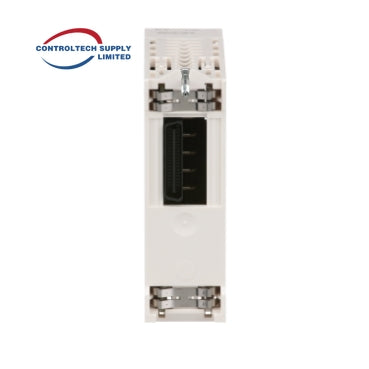

SCHNEIDER BMXDDI1602H is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 16 inputs with sink (positive) logic. It is an input module with an input voltage of 24V DC, a current consumption of 90mA at 3.3V DC and a power dissipation of 2.5W. There is an isolation between channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It has an external fuse per group of channel 0.5A and reverse polarity protection fast blow protection type. It offers 798237 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Specifications
| Range of Product | Modicon X80 |
|---|---|
| Product or Component Type | Discrete input module |
| Product Specific Application | For severe environments |
| Discrete input number | 16 |
| Discrete input type | Isolated |
| Input type | Current sink (logic positive) |
| Discrete input voltage | 24 V DC positive |
| Discrete input current | 3.5 mA |
| Input compatibility | With 2-wire/3-wire proximity sensors IEC 60947-5-2 With 2-wire/3-wire proximity sensors IEC 61131-2 type 3 |
|---|---|
| Sensor power supply | 19...30 V 140 °F (60 °C) 21.1...26.4 V 158 °F (70 °C) |
| Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | <= 1.5 mA |
| Input impedance | 6800 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 2.5 W |
| DC typical response time | 4 ms |
| DC maximum response time | 7 ms |
| Paralleling of inputs | Yes |
| Typical current consumption | 76 mA 3.3 V DC |
| MTBF reliability | 775000 H |
| Protection type | 1 external fuse per group of channel 0.5 A fast blow reverse polarity protection |
| Voltage detection threshold | < 14 V DC sensor fault > 18 V DC sensor OK |
| Status LED | 1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O |
| Net Weight | 0.25 lb(US) (0.115 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Environmental characteristic | Gas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2 |
| Dielectric strength | 1500 V AC 50/60 Hz 1 minute, primary/secondary |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Protective treatment | Conformal coating |
| Operating altitude | 0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor |
| Category | 18160-MODICON M340 |
|---|---|
| Discount Schedule | PC34 |
| GTIN | 3595864025605 |
| Returnability | Yes |
| Country of origin | ID |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.17 in (5.5 cm) |
| Package 1 Width | 4.33 in (11.0 cm) |
| Package 1 Length | 4.53 in (11.5 cm) |
| Package 1 Weight | 5.82 oz (165.0 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.91 in (15 cm) |
| Package 2 Width | 11.81 in (30 cm) |
| Package 2 Length | 15.75 in (40 cm) |
| Package 2 Weight | 6.40 lb(US) (2.901 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 29.53 in (75.0 cm) |
| Package 3 Width | 23.62 in (60.0 cm) |
| Package 3 Length | 31.50 in (80.0 cm) |
| Package 3 Weight | 130.07 lb(US) (59 kg) |
