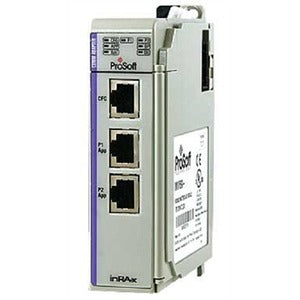

PROSOFT MVI69-PDPS Communication Module
PROSOFT MVI69-PDPS Communication Module
Manufacturer: ProSoft
Product No.: MVI69-PDPS
Product Type: Communication Module
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Description
The MVI69-PDPS PROFIBUS DP Slave Communication Module enables CompactLogix I/O-compatible processors to interface seamlessly with a PROFIBUS DP Master device. It is designed for reliable industrial communication, offering straightforward integration within Rockwell Automation CompactLogix platforms.
Specifications
| Specification | Description |
|---|---|
| Dimensions | Standard 1769 single-slot module |
| Current Load | 800 mA max @ 5 VDC |
| Power Supply Distance Rating | 2 |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | –40 to 85°C (–40 to 185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| LED Indicators | Power and Module Status; Application Status; Serial Port Activity; Serial Activity and Error Status |
| CFG Port (CFG) | RJ45 (DB-9M with supplied cable); RS-232 only; No hardware handshaking |
| Shipped with Unit | RJ45 to DB-9M cables for each port; 6-foot RS-232 configuration cable |
