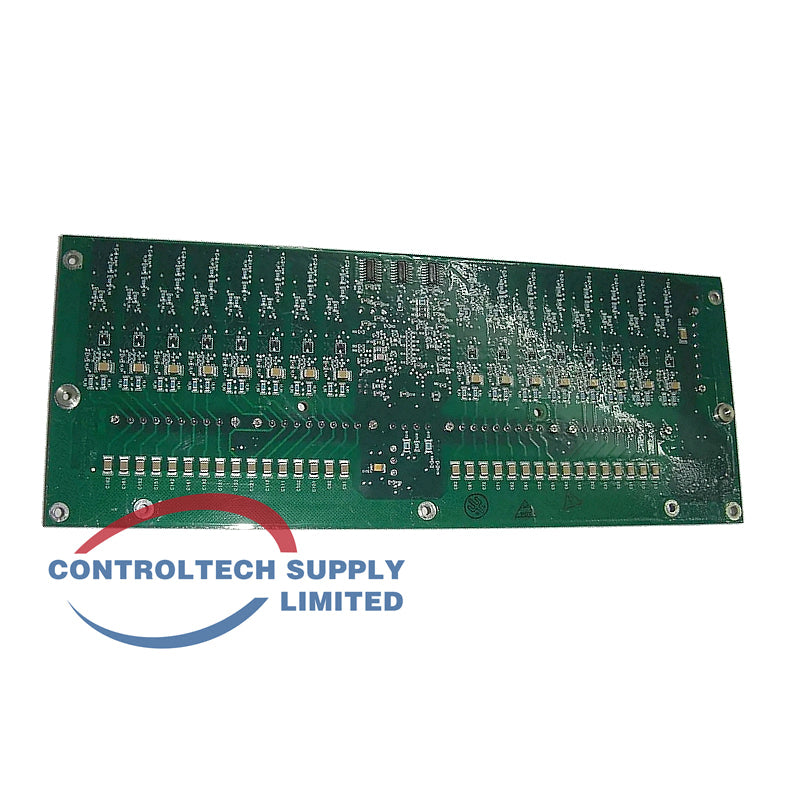

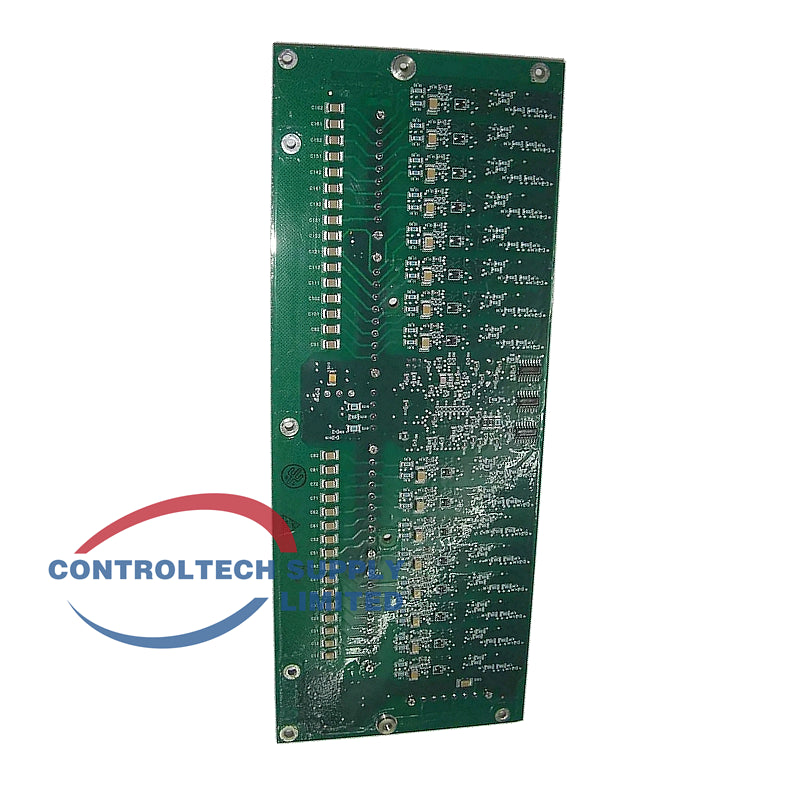

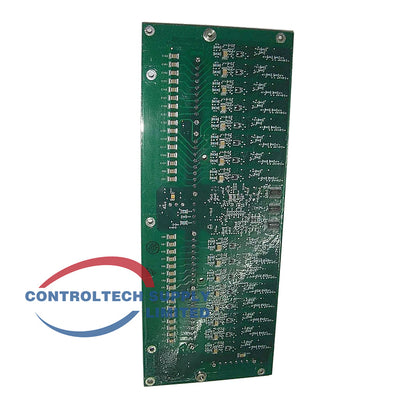

Honeywell 51305844-175 is an Analog Input Module designed for the TC LLMUX2 32PTMUX system. It converts analog sensor signals into digital values for use in control systems.
Technical Specs
Type: Analog Input Module
System: TC LLMUX2 32PTMUX
Channels: Up to 32
Input types: Voltage / current (0–10 V or 4–20 mA typical)
Resolution: 16-bit class
Operating temperature: Wide industrial range
Key Features
High channel density for multiplexed inputs
Supports common industrial analog signals
Designed for TC LLMUX architectures
Reliable signal conversion for process monitoring
FAQ
System? TC LLMUX2 32PTMUX.
Channel capacity? Up to 32 inputs.
Signal types? Analog voltage and current.
Installation Guide
Install the module in the LLMUX system.
Connect analog field signals according to channel mapping.
Configure input ranges in the control system.
Verify readings and scaling.
Secure wiring and perform functional checks.
Selection Tips
Select for high-density analog input in LLMUX systems.
Confirm signal type and range compatibility.
Useful spare for multiplexed analog monitoring applications.
