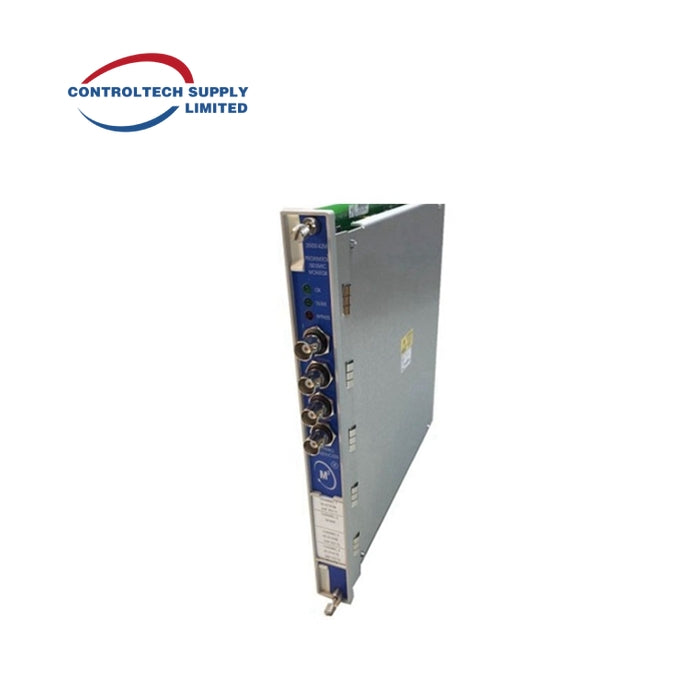

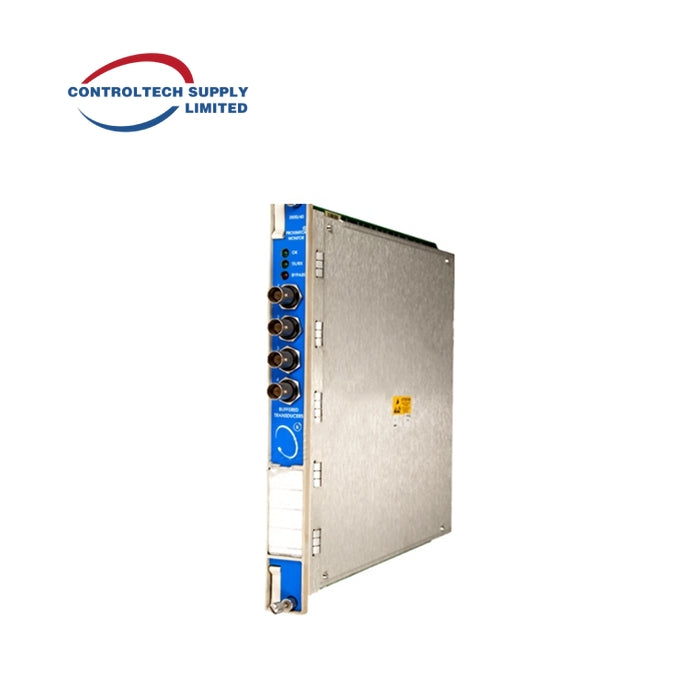

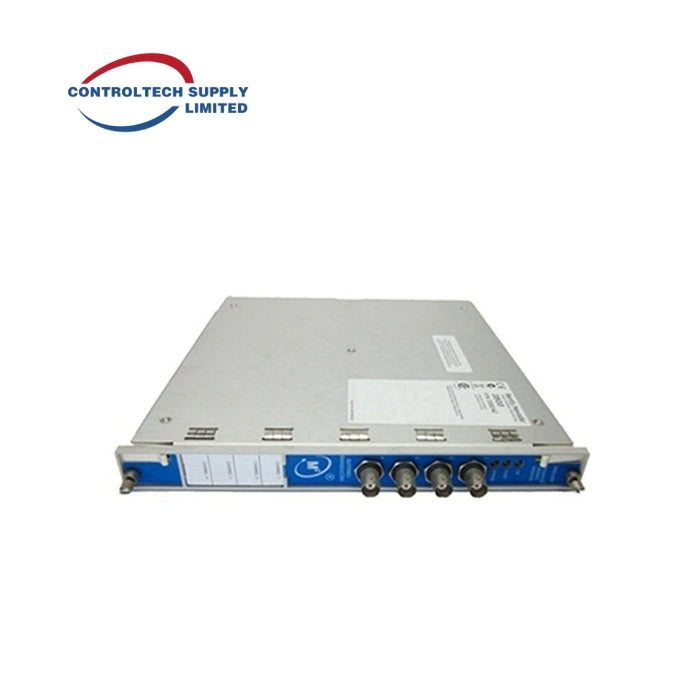

Bently Nevada 3500/70M 136449-09 Reciprocating Impulse Velocity Monitor

Bently Nevada 3500/70M 136449-09 Reciprocating Impulse Velocity Monitor

Product Description

• Manufacturer: Bently Nevada
• Product Type: 3500/70M Reciprocating Impulse Velocity Monitor
• Function: A 4-channel device used in the reciprocating compressor solutions package to monitor compressor crankcase and crosshead vibration. It accepts input from seismic transducers, conditions the signals to derive vibration measurements, and compares the conditioned signals with user-programmable alarms.
• Primary Purpose: Machinery protection for reciprocating compressors by continuously comparing monitored parameters against configured alarm setpoints to drive alarms. Provides essential machine information for operations and maintenance personnel.

Technical Specifications

Inputs

• Accepts from 1 to 4 proximity probe signals.

Input Impedance

• 10 kΩ for acceleration input

• 1 MΩ for velocity input

Sensitivity

• Impulse Acceleration: 0.51 – 11.72 mV/(m/s²) (5 – 115 mV/g)
• Acceleration 2: 0.51 – 11.72 mV/(m/s²) (5 – 115 mV/g)
• Recip Velocity: 3.54 – 22.64 mV/(mm/s) (90 – 575 mV/(in/s))
• Low Frequency Recip Velocity: 3.54 – 22.64 mV/(mm/s) (90 – 575 mV/(in/s))

Power Consumption

• 7.7 watts, nominal

Outputs

• Front Panel LEDs:

  • OK LED: Indicates proper operation of the monitor
  • TX/RX LED: Indicates communication with other modules
  • Bypass LED: Indicates when the monitor is in Bypass Mode

• Buffered Transducer Outputs: 550 Ω typical

• Recorder Outputs: +4 to +20 mA proportional to the monitor full-scale

Operating Specifications

• Operating Temperature Range: -55°C to +85°C (-67°F to +185°F)
• Dimensions: 2.6 cm x 25.6 cm x 24.4 cm
• Weight: 0.85 kg
