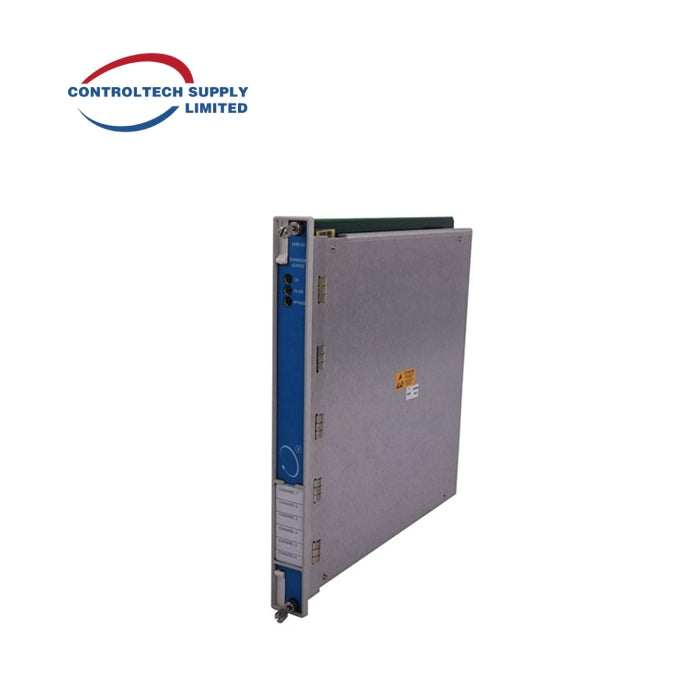

Bently Nevada 3500/65 Channel Temperature Monitor
Bently Nevada 3500/65 Channel Temperature Monitor
Manufacturer: Bently Nevada
Product No.: 3500/65
Product Type: Temperature Monitor Module
Product Origin: USA
Payment: T/T
Weight: 0g
Shipping port: Xiamen
Warranty: 12 months
3500/65 Channel Temperature Monitor
Description
- The 3500/65 monitor provides 16 channels of temperature monitoring and accepts both resistance temperature detector (RTD) and isolated tip thermocouple (TC) temperature inputs.
- The monitor conditions these inputs and compares them against user-programmable alarm setpoints.
- It is programmed using the 3500 Rack Configuration Software.
- The 16-Channel Temperature Monitor can be configured to accept isolated tip thermocouples, 3-wire RTD, 4-wire RTD, or a combination of TC and RTD inputs.
- In Triple Modular Redundant (TMR) configurations, temperature monitors must be installed in groups of 3 adjacent monitors.
- The monitor uses 2 types of voting in TMR configurations to ensure accurate operation and to avoid single-point failures.
Specifications
Inputs
- Power Consumption: 3 watts nominal
- Signal: Accepts from 1 to 16 RTD or isolated tip TC transducer signals.
- Input Impedance: Greater than 1 MΩ for each lead input.
Transducers
-
TCs:
- Type E: -100°C to +1000°C (-148°F to +1832°F)
- Type J: 0°C to +760°C (32°F to +1400°F)
- Type K: 0°C to +1370°C (32°F to +2498°F)
- Type T: -160°C to +400°C (-256°F to +752°F)
Spares
| Part Number | Description |
|---|---|
| 172931 | 3500/65 User Guide |
| 145988-02 | 3500/65 Monitor |
| 172103-01 | 3500/65 RTD/Isolated Tip TC I/O Module, Internal Terminations |
| 173005 | Connector Header, Internal Termination, 20-position, Black |
| 172109-01 | 3500/65 RTD/Isolated Tip TC I/O Module, External Terminations |
| 172115-01 | RTD/Isolated Tip TC External Termination Block (Euro Style Connectors) Specifications |
