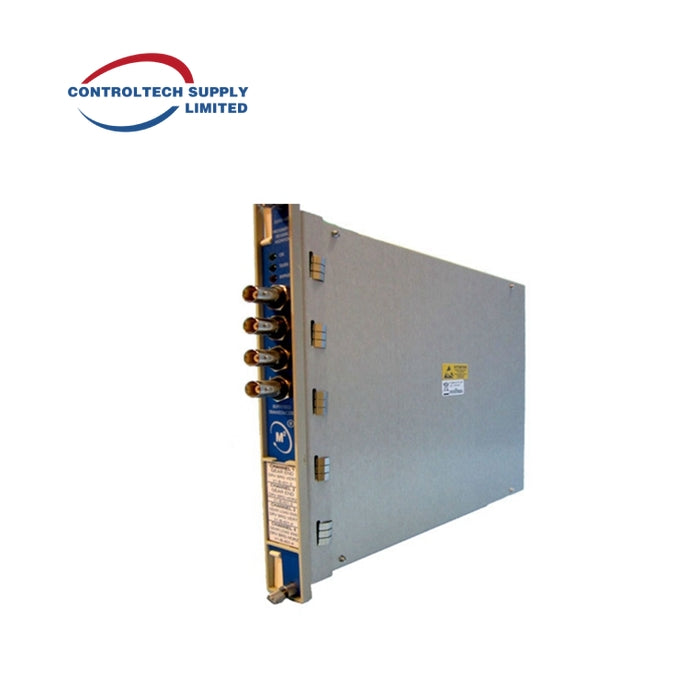

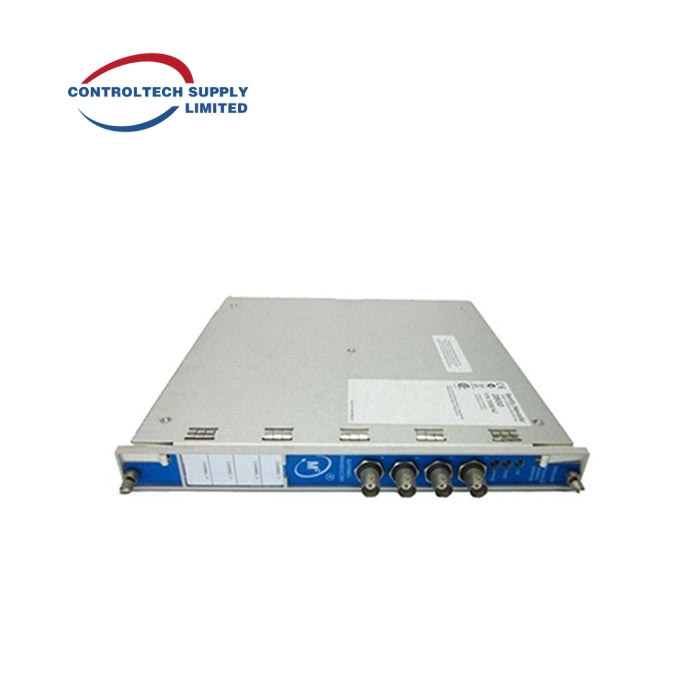

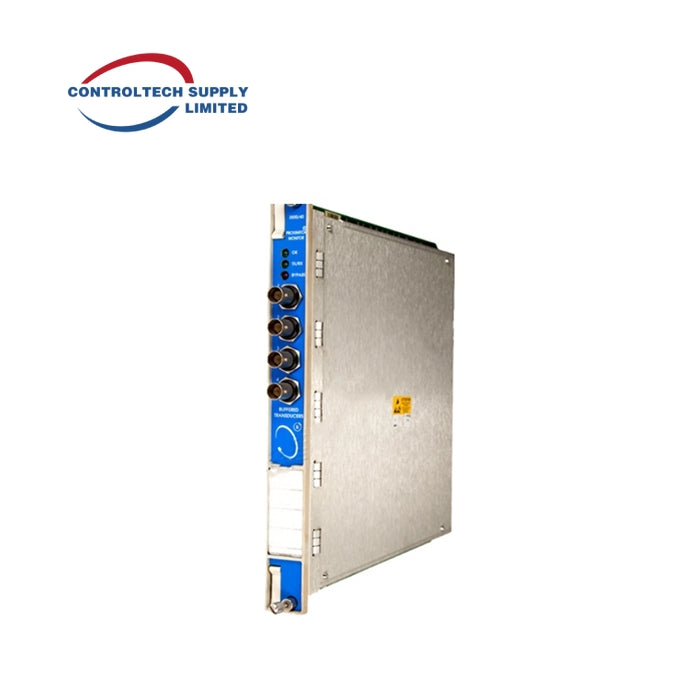

Bently Nevada 3500/64M Dynamic Pressure Monitor

Bently Nevada 3500/64M Dynamic Pressure Monitor

Description

• Type: Single-slot, four-channel monitor designed for high-temperature pressure transducer inputs.
• Measured Variable: Bandpass dynamic pressure (one per channel).
• Configuration:
  • Configurable bandpass corner frequencies and an additional notch filter using 3500 Rack Configuration Software.
  • Alert and danger setpoints can be configured for each active measured variable.
• Recorder Output: Supports control system applications.
• Primary Purpose:
  • Machinery Protection: Continuously compares monitored parameters against alarm setpoints to drive alarms.
  • Operational Insight: Provides essential machine information for operations and maintenance personnel.
• Signal Conditioning: Processes input signals to generate parameters called measured variables, based on configuration.

Specifications

• Inputs:

  • Accepts 1 to 4 pressure transducer signals.
  • Input Impedance:
    • 3-wire transducer: 10 kΩ.
    • 2-wire transducer: 1.5 MΩ to 3.5 MΩ (typical).
  • Sensitivity: 100 mV/psi (1.45 mV/mBar).

• Outputs:

  • Front Panel LEDs:
    • OK LED: Indicates proper operation of the module.
    • TX/RX LED: Shows communication status with other modules in the 3500 rack.
    • Bypass LED: Signals when the module is in Bypass Mode.

Physical Specifications

• Monitor Module (Main Board):

  • Dimensions (H x W x D): 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in).
  • Weight: 0.82 kg (1.8 lb).

• I/O Modules (Non-Barrier):

  • Dimensions (H x W x D): 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in).
  • Weight: 0.20 kg (0.44 lb).

• I/O Modules (With Barrier):

  • Dimensions (H x W x D): 241.3 mm x 24.4 mm x 163.1 mm (9.50 in x 0.96 in x 6.42 in).
  • Weight: 0.46 kg (1.01 lb).
