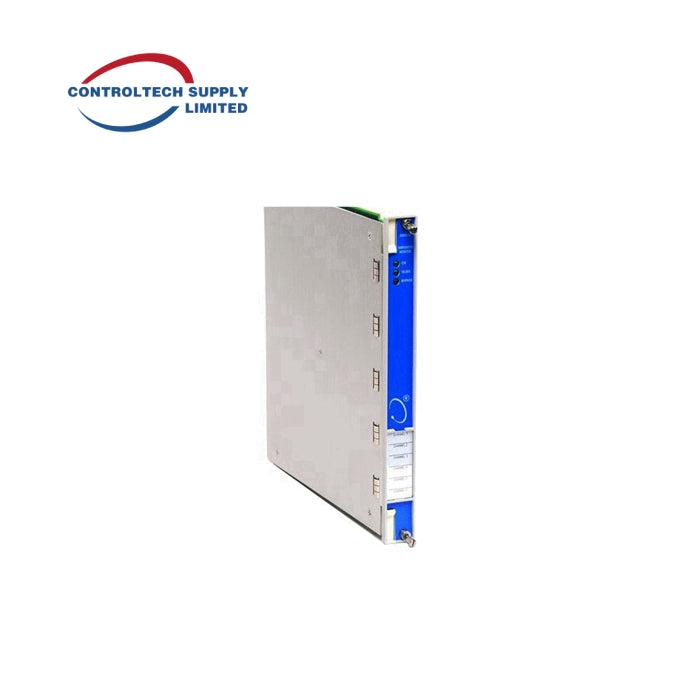

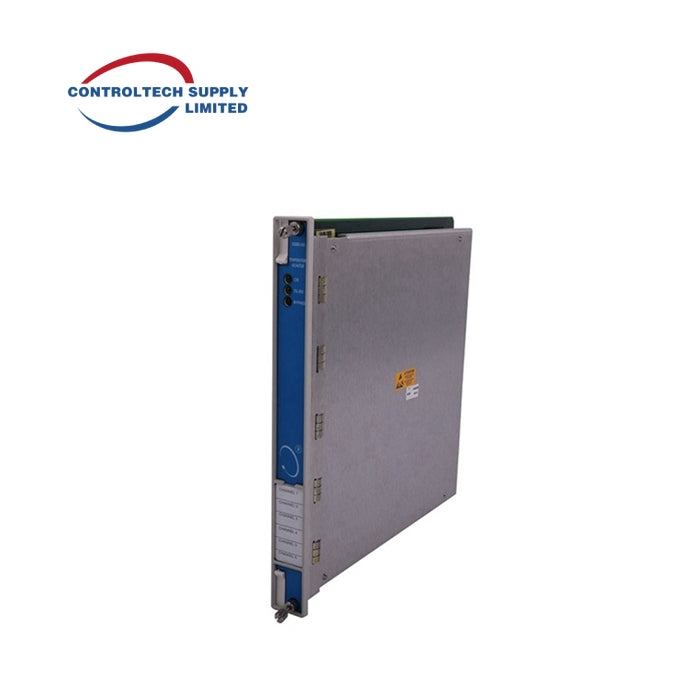

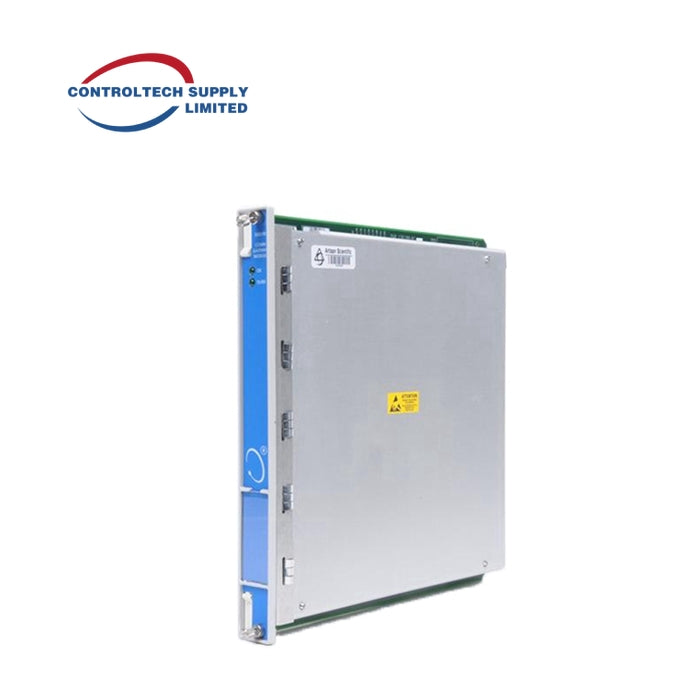

Bently Nevada 3500/62 Process Variable Monitor

Bently Nevada 3500/62 Process Variable Monitor

Brand: Bently Nevada
Product Type: Process Variable Monitor
Payment:T/T, Western Union
Shipping Port:Jinhua China
Lead Time:1-3 Working Days
Condition: Brand New And 100% Original
Warranty: 12 months

3500/62 Process Variable Monitor

Description
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.

Environmental Limits

  • Operating Temperature:
    • -30°C to +65°C (-22°F to +149°F) when used with Internal/External Termination I/O Module.
    • 0°C to +65°C (+32°F to +149°F) when used with Internal Barrier I/O Module (Internal Termination).
  • Storage Temperature:
    • -40°C to +85°C (-40°F to +185°F).
  • Humidity:
    • 95%, non-condensing.

Spares

Part Number Description
163179-03 3500/62 monitor
136590-01 Firmware IC
04425545 Grounding wrist strap (single use)
04400037 IC removal tool
136491-01 -10 Vdc to +10 Vdc I/O Module with internal terminations
136499-01 -10 Vdc to +10 Vdc I/O Module with external terminations
136294-01 Isolated +4 to +20 mA I/O Module with internal terminations
136483-01 Isolated +4 to +20 mA I/O Module with external terminations
137110-01 4 to 20 mA Barrier I/O Module with internal terminations
136973 3500/62 User Guide
01700059 Replacement fuse for barrier I/O
166M2377 Connector Header Push-in-Spring Type (Alternative for PN 00580442)
