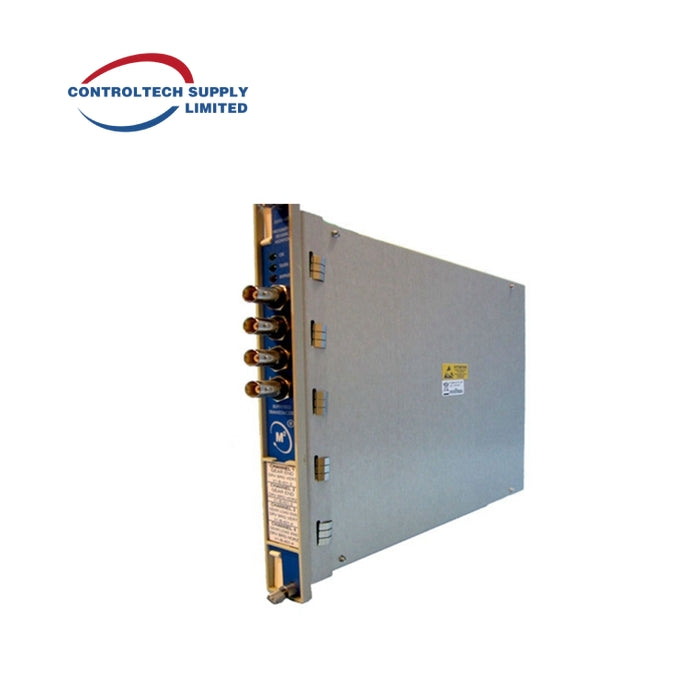

The 3500/40M Proximitor Monitor is a four-channel device designed to receive input from Bently Nevada proximity transducers. It processes these signals to measure various vibration and position parameters and compares the results with user-defined alarm thresholds. Each channel can be configured using the 3500 Rack Configuration Software to perform one of the following functions:
Radial vibration
Eccentricity
REBAM
Thrust position
Differential expansion
Spares
Part Number
Description
176449-01
3500/40M Proximitor Monitor
125680-01
Proximitor I/O Module with Internal Terminations
126615-01
Proximitor I/O Module with External Terminations
135489-04
Proximitor I/O Module with Internal Barriers and Internal Terminations
143488
3500/40M Monitor User Guide
00580434
Internal I/O Module connector header, Euro style, 8-pin
00502133
Internal I/O Module connector header, Euro style, 12-pin
166M4363
Connector header, push-in-spring type (alternative for PN 00580441)
166M2389
Connector header, push-in-spring type (alternative for PN 00580434)
