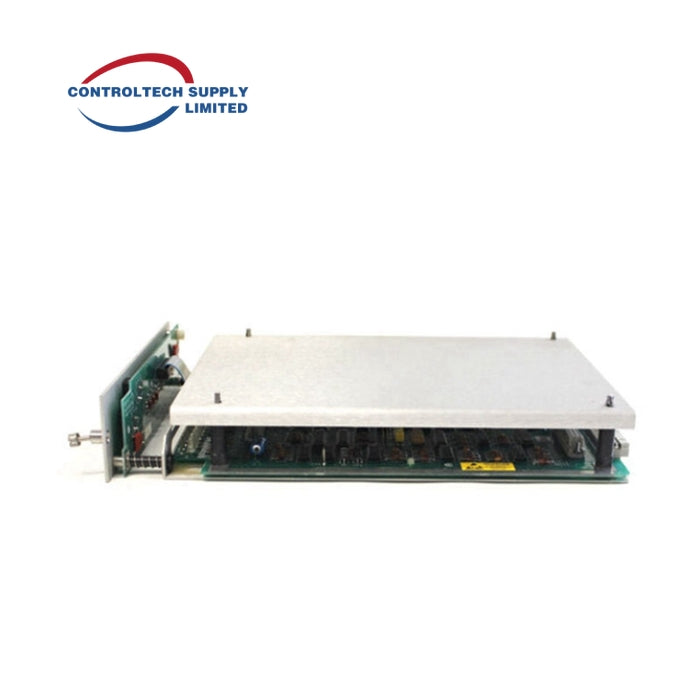

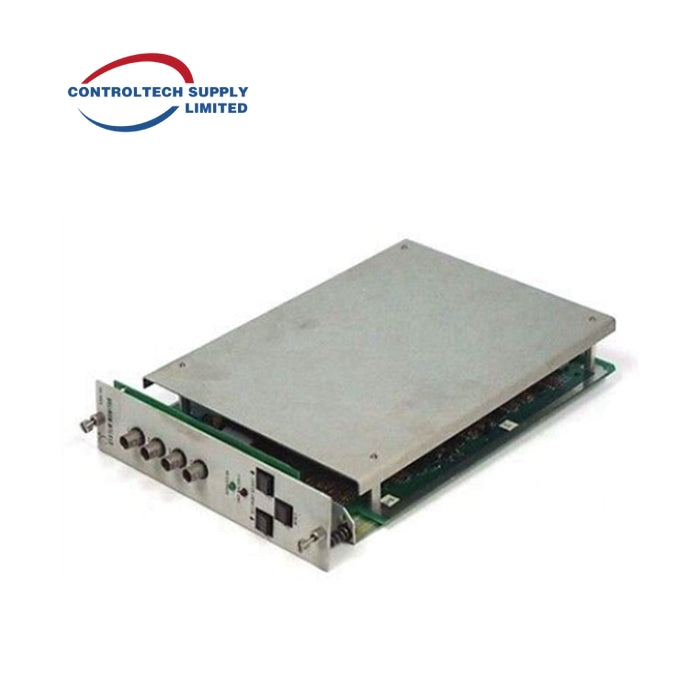

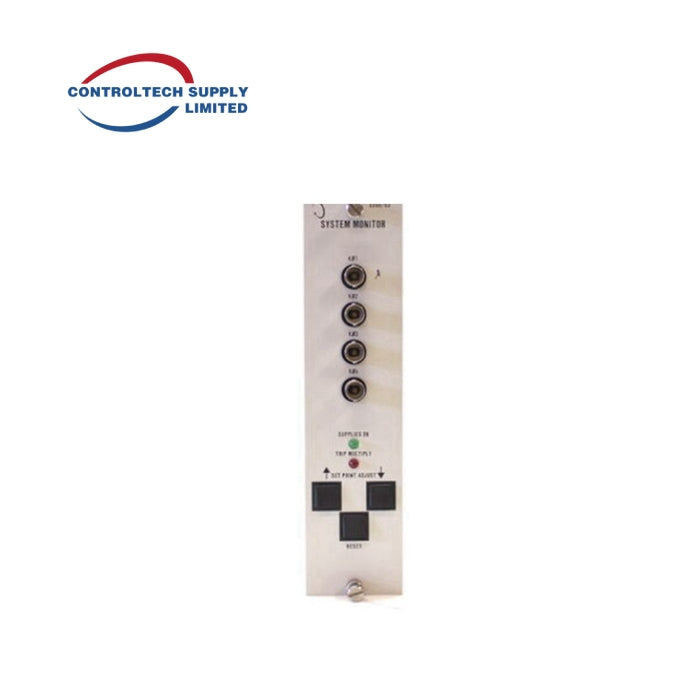

Bently Nevada 3300/03-01-00 System Monitor

Description 3300/03 System Monitor

The System Monitor performs four critical tasks in a 3300 monitor rack:

• Common Functions for All Monitors:
  • Alarm setpoint adjustment
  • Keyphasor® power, termination, conditioning, and distribution
  • Alarm acknowledgement
• External Communication:
  • Connects all installed monitors to an external communications processor via STATIC and DYNAMIC data ports.
• Optional Serial Data Interface (SDI):
  • Enables communication of transducer and monitor data to process computers, DCS, PLCs, and other automation systems.
• Optional Dynamic Data Interface (DDI):
  • Allows transducer and monitor data transmission to Bently Nevada machinery management software.
  • May eliminate the need for an external communications processor depending on data requirements.

Environmental Limits

• Operating Temperature: 0°C to +65°C (+32°F to +150°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Relative Humidity: Up to 95%, non-condensing

3300/03-01-00
