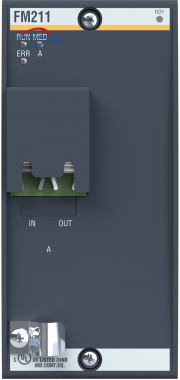

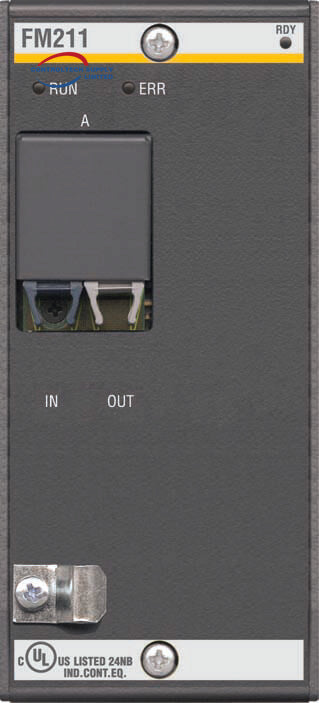

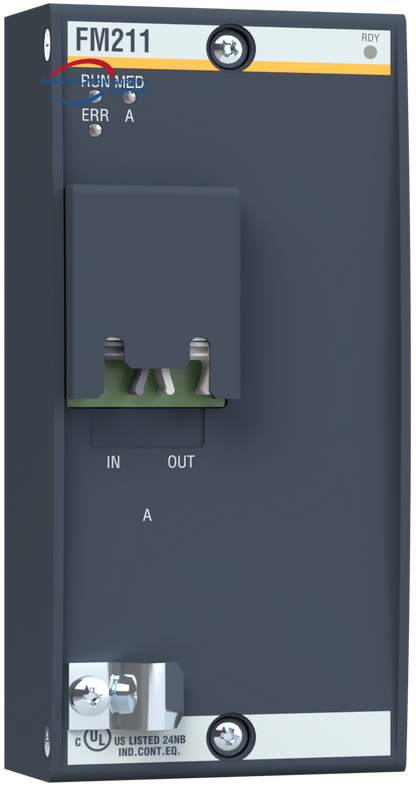

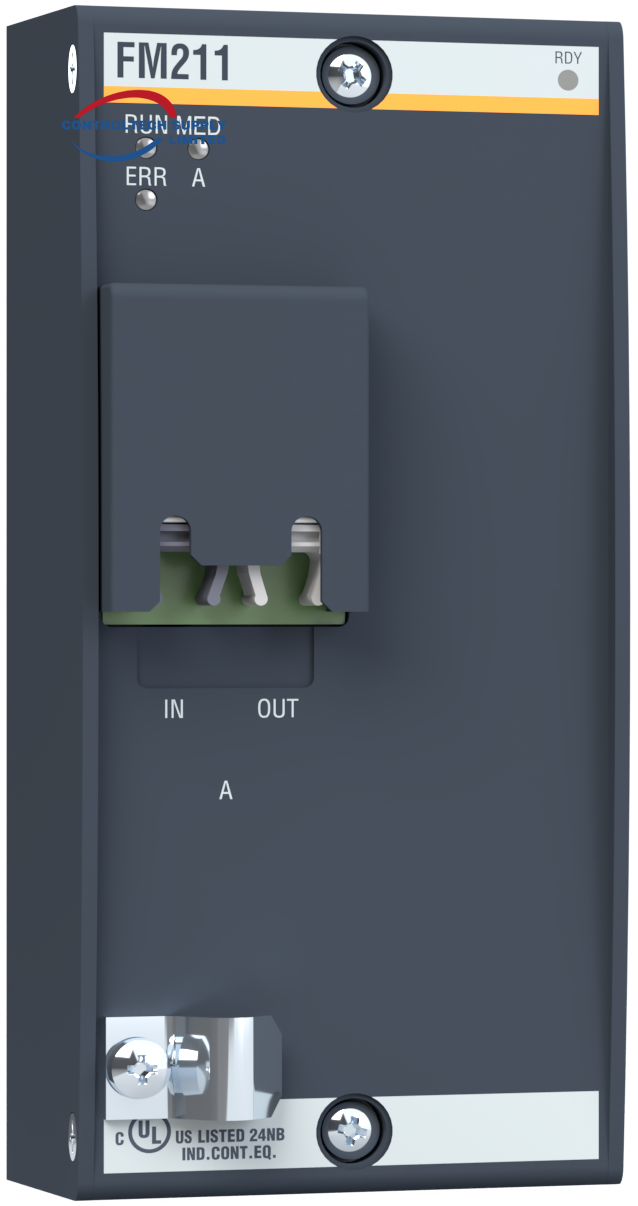

BACHMANN FM211 00017821-00 FASTBUS Modules with 1 FO Interface

The FM211 00017821-00 FASTBUS Module is specifically designed to facilitate the distribution of substations over extended distances with minimal signal delay. Integrated within the FASTBUS slave modules, FS211/N and FS212/N, is the ability to supply power to the I/O modules of a substation.

Key Features:

• FASTBUS master modules with 1 FO (Fiber Optic) interface
• FASTBUS slave modules with 1 FO interface
• FASTBUS slave modules with integrated power supply
• Support for up to 15 distributed substations
• Distances between 2 stations can reach up to:
  • 40 meters for Plastic Optical Fiber (POF) cables
  • 150 meters for Hard Cladded Silica (HCS) cables (sometimes referred to as Plastic Silica Fiber)
  • 180 meters for special HCS cables
• Status display (RUN/ERR) and display for fiber type
• Minimal signal delay

Specifications

• Line length: 40 / 150 / 180 meters between the stations, with a total length maximum of 1000 meters
• Transmission medium:
  • Plastic Optical Fiber (POF) with a maximum length of 40 meters (POF is sometimes referred to as PMMA)
  • Hard Cladded Silica (HCS) with a maximum length of 150 meters (HCS is sometimes referred to as Plastic Silica Fiber - PCF)
  • Special HCS cable with a maximum length of 180 meters
• Number of stations: Up to a maximum of 16
• Integrated power supply:
  • Input voltage: 24 VDC (ranging from 18 to 34 V)
  • Current consumption: Maximum of 1.2 A at 24 V
  • Nominal power (Output): 17 W
  • Output current at +5 V: 2800 mA
  • Output current at +15 V: 250 mA
  • Output current at -15 V: 200 mA
  • Galvanic isolation from the system: 500 V
  • Reverse polarity protection: Yes
• Approvals / Certificates:
  • General: CE, cULus, CCC
  • Marine: DNV GL, LR, ABS, BV, NK, KR, RINA
• Ambient conditions:
  • Operating temperature: 0 to +60 °C
  • Relative humidity during operation: 5% to 95% without condensation
  • Storage temperature: -40 to +85 °C
  • Relative humidity during storage: 5% to 95% without condensation
  • Pollution degree: 2 (without condensation; according to IEC 60664-1)
