CANopen based on the Controller Area Network (CAN) has now developed to become the leading fieldbus system for industrial automation. Proven millions of times over and perfectly mature, it offers the ideal basis for secure, easy, and yet flexible networking tasks.

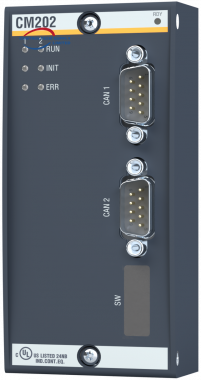

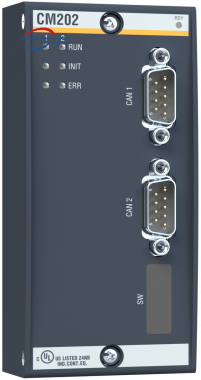

The CAN master module CM202 can operate either one or two separated networks. Both connections can be configured independently as NMT master or slave. In an M1 controller up to four CANopen master modules CM202 can be operated.
Features
- Up to 4 CANopen master modules per M1 controller
- 2 independent CAN buses per CANopen master module
- Can be used as NMT master or slave
- Transfer rate 10 Kbaud to 1 Mbaud
- Bus length to 5000 m (signal repeater required)
- Galvanic isolation
- Short circuit proof
Specifications
System integration
|
Max. number |
4 per M1 controller |
|
Number of CAN buses |
2 per module, 8 per M1 controller |
|
Max. Anzahl Adressen |
127 per network |
|
Protocol |
CANopen, SAE J1939, NMEA 2000 |
|
Current consumption |
320 mA / 5 VDC |
CAN interface
|
Baud rate |
10 k to 1 Mbaud |
|
Bus length |
Max. 5000 m |
|
Connection |
2x 9-pin D-Sub female connectors |
|
Pin assignment |
In accordance with CiA DS 102 / 4 |
|
Signal level |
In accordance with CiA DS 102 / 4 |
|
Galvanic isolation from the system |
500 V |
CANopen
|
CANopen master |
Yes |
|
CANopen slave |
Yes |
|
Extended boot-up |
No |
|
Minimum boot-up |
Yes |
|
Configuration |
SolutionCenter configurator creates DCF from EDS files |
|
Process data |
Max 128 TxPDOs + 128 RxPDOs per network |
|
Variable PDO mapping |
Yes |
|
PDO transmission modes |
Value change with inhibit time; cyclic or acyclic synchronous; RTR |
|
Process data access |
PLC process image, PLC function blocks, C/C++ functions |
|
Service Data (SDO) access |
PLCopen function blocks, C/C++ functions, Simulink blocks Graphical monitor in SolutionCenter |
|
Emergency messages |
NMT slave is producer, NMT Master is consumer |
|
Emergency message access |
Access to message list via function blocks, C/C++ function; Graphical monitor in SolutionCenter |
|
Network monitoring |
Heartbeat and/or node guarding with individual limits per node |
|
Device profiles |
301, 302, 405 |
|
Diagnosis |
|
|
System variables |
Bus load and peak load in %, Frame counters, Error counters, controller status registers |
|
Telegram logging |
built-in protocol sniffer, operation via device console, export logs to file; Configured start of logging from power-up |
Approvals / Certificates
|
General |
CE, cULus, CCC |
|
Marine |
DNV, LR, ABS, BV |
Order Codes
| Item | Item No. | Description |
| CM202 | 00009698-20 | CAN fieldbus master module; 2x CAN/CANopen; up to 1Mbit/s; Master/Slave configurable; CANsync; isolated |
