Description

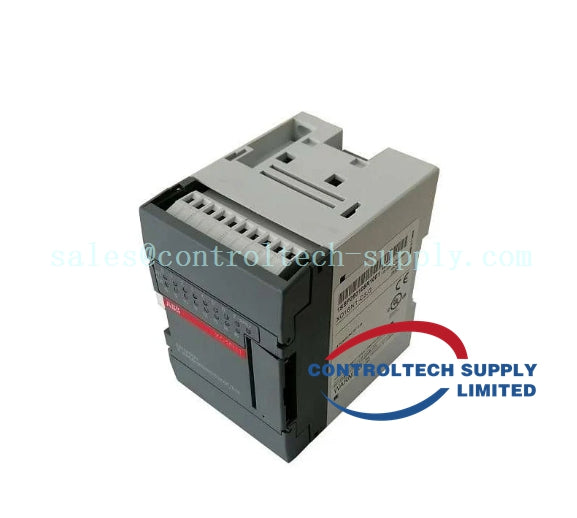

The ABB XO16N1-C3.0 Digital Output Module is a high-reliability output unit designed for ABB PLC and distributed control systems, providing stable switching of field devices such as relays, solenoid valves, indicators, and actuators. With 16 isolated digital output channels, the module ensures fast response, strong electrical protection, and long service life in demanding industrial environments. Its compact design allows easy installation in control cabinets, while robust diagnostics help improve system availability and maintenance efficiency.
Technical Specifications
| Parameter | Description |
|---|---|
| Number of Outputs | 16 digital output channels |
| Output Type | Transistor (sourcing/high-side) |
| Rated Output Voltage | 24 V DC |
| Output Current per Channel | 0.5 A max |
| Total Module Output Current | 8 A max |
| Electrical Isolation | Channel-to-system isolated |
| Switching Time | < 1 ms |
| Short-Circuit Protection | Integrated electronic protection |
| Overload Protection | Automatic current limiting |
| Operating Voltage Range | 19.2 – 30 V DC |
| Power Consumption | Approx. 4 W |
| Diagnostic Functions | Status LED per channel, fault detection |
| Mounting Type | DIN rail / rack mounting (system dependent) |
| Operating Temperature | –25 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Protection Class | IP20 |
| Compliance | Industrial EMC and safety standards |
