Decription

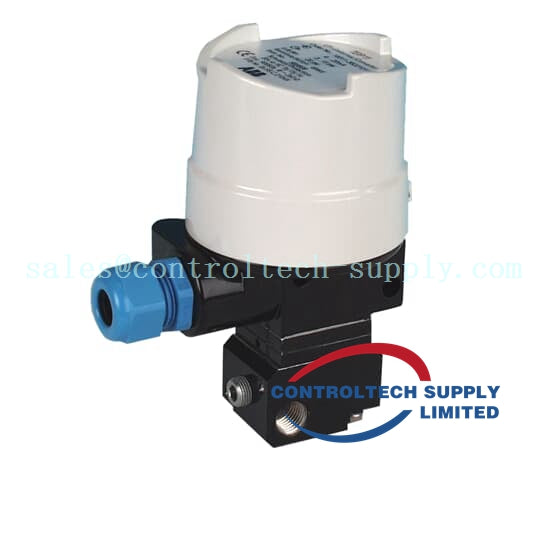

The ABB TEIP11 is a high-precision current-to-pressure (I/P) signal converter designed to transform standard electrical control signals into proportional pneumatic output signals. It is widely used in process automation systems to interface electronic controllers with pneumatic actuators and control valves. With robust environmental resistance, rail-mounting design, and stable long-term performance, the TEIP11 ensures accurate signal conversion even in harsh industrial environments.
Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Input (Electrical) | Signal Range | 0–20 mA or 4–20 mA |
| 0–10 mA or 10–20 mA | ||
| 4–12 mA or 12–20 mA | ||
| (Additional ranges available upon request) | ||
| Input Resistance | Ri = 260 Ω at 20 °C (68 °F), temperature coefficient +0.4 %/K | |
| Overpressure Limit | 30 mA | |
| Capacitance / Inductance | Negligible | |
| Output (Pneumatic) | Signal Range | 0.2–1 bar (3–15 psi) |
| Environmental Capabilities | Climate Class | GPF or FPF according to DIN 40040 |
| Operating Temperature | –55 to +85 °C (–67 to 185 °F) | |
| –45 to +85 °C (–49 to 185 °F) | ||
| Relative Humidity | 75% average, 95% short-term, non-condensing | |
| Housing & Protection | Material / IP Rating | Aluminum housing with plastic cover, IP20 |
| Mounting | Rail Standards | EN 50022 (35 × 7.5 mm) |
| EN 50035 (G 32) | ||
| EN 50045 (15 × 5 mm) | ||
| Electrical Connection | Terminal Type | 2-pole screw terminal for 2.5 mm² (14 AWG) |
| Pneumatic Connection | Port | 1/8 NPT threaded hole (supply air and output) |
| Weight | — | 0.25 kg (0.55 lb) |
| Dimensions | — | Refer to rail-mounted control room housing design |
