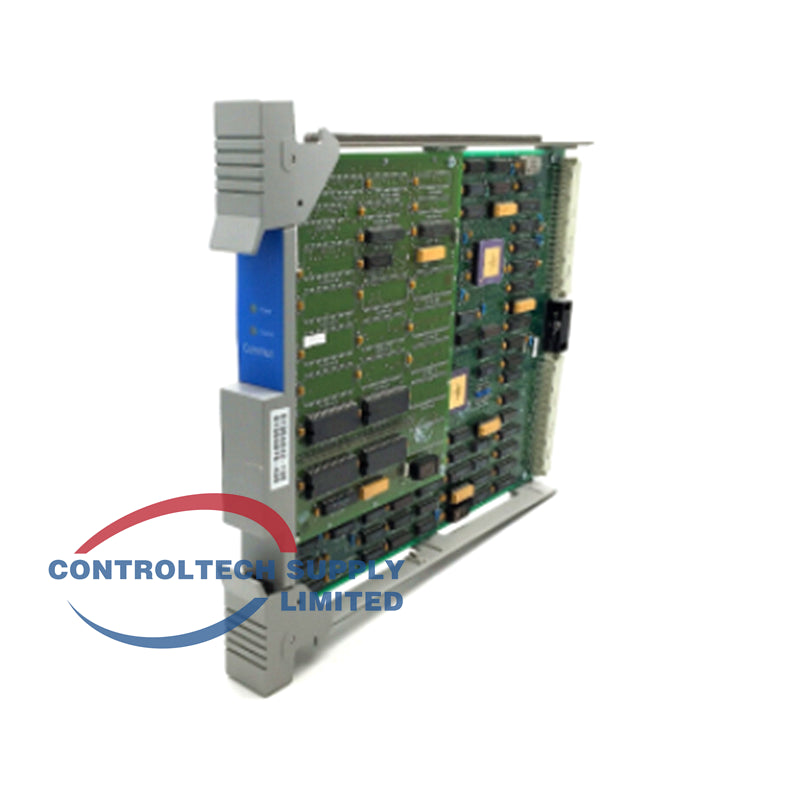

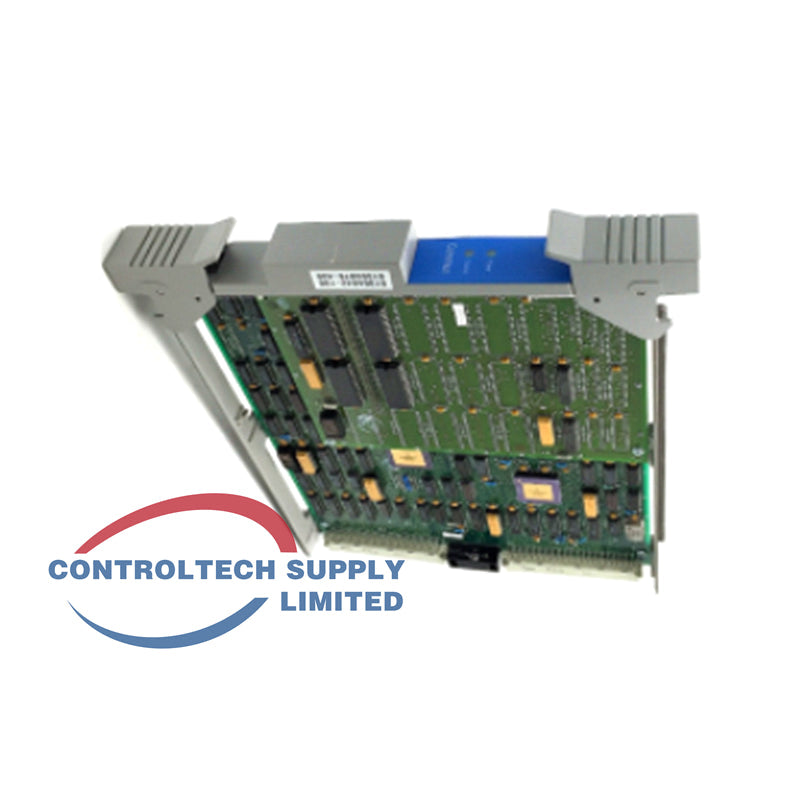

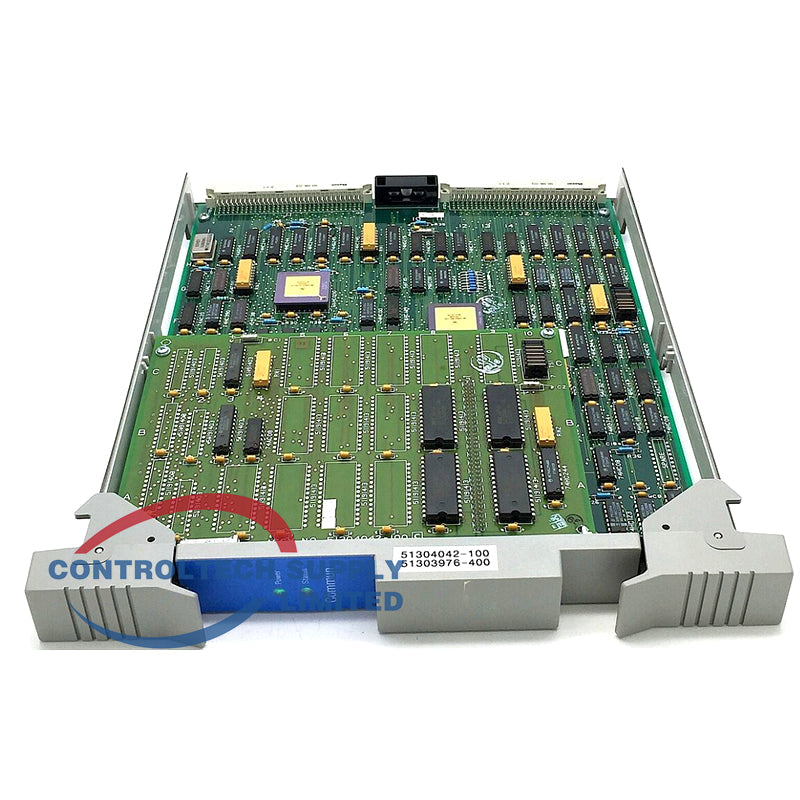

51304042-100 Honeywell TDC 3000 Communication Board

Product Overview

The Honeywell 51304042-100 is a communication board designed for TDC 3000 Process Manager systems. It enables data exchange between controllers and process units with clear power and status indication.

Technical Specs

• Type: Communication Board (COMM DTR PWA)
• System: TDC 3000 Process Manager
• Indicators: 2 LEDs (Power / Status)
• Connectors: 2 × 96-pin chassis connectors
• Mounting: Chassis slot installation

Key Features

• Dedicated communication interface for TDC 3000
• Clear LED status monitoring
• Fits standard Process Manager chassis slots
• Reliable data transfer in industrial environments

FAQ

• Compatible system? Honeywell TDC 3000 Process Manager.
• How many LEDs? Two (Power and Status).
• Connector type? Dual 96-pin chassis connectors.

Installation Guide

1. Locate the correct chassis slot for the communication board.
2. Insert the 51304042-100 firmly into the backplane connectors.
3. Secure the board in place.
4. Power up the system and check the Power and Status LEDs.
5. Verify communication functionality.

Selection Tips

• Use for TDC 3000 Process Manager communication needs.
• Confirm chassis slot and backplane compatibility.
• Ideal replacement or spare for legacy TDC systems.
