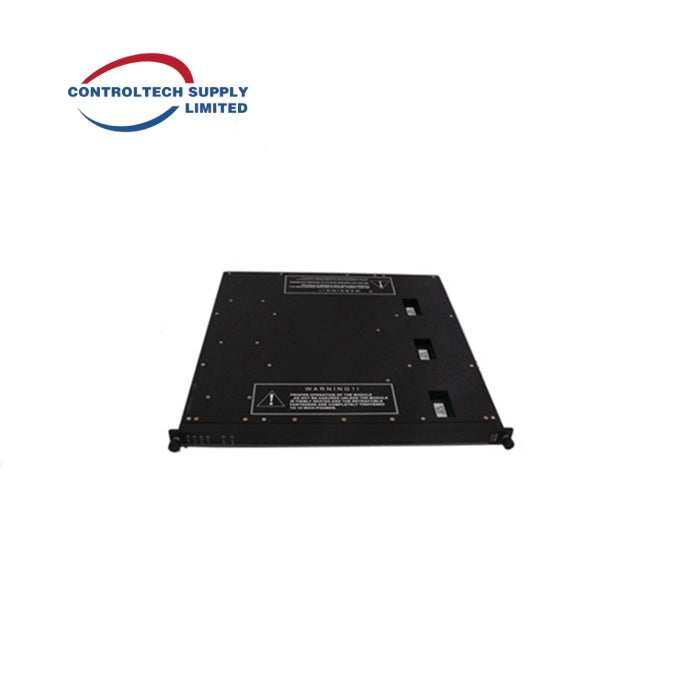

The TRICONEX 3625 is a 32-point digital output module designed for use in Triconex safety instrumented systems. It operates at 24 VDC and supports both supervised and non-supervised outputs, offering high-integrity control for critical applications such as emergency shutdown, fire and gas systems, and turbine protection.
Technical Specifications
Output type: Digital, supervised/non-supervised
Number of output channels: 32, commoned
Nominal voltage: 24 VDC
Voltage range: 16–32 VDC
Maximum voltage: 36 VDC
Voltage drop: < 2.8 VDC @ 1.7 A (typical)
Maximum current per point: 1.7 A
Surge current: 7 A for 10 ms
Minimum load: 10 mA
Load leakage: ≤ 4 mA
Power consumption: < 13 W
Isolation: 1500 VDC point-to-point
Diagnostic indicators: One per point (ON/OFF state), plus PASS, FAULT, LOAD, ACTIVE
