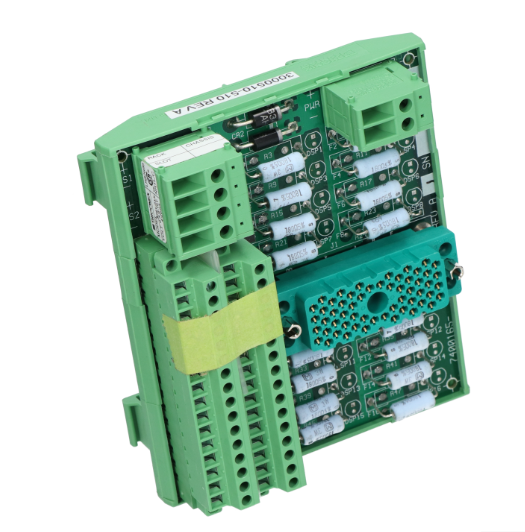

TRICONEX 3000510-510 – Chassis / Backplane Assembly

Product Description

The TRICONEX 3000510-510 is a chassis or backplane assembly designed to accommodate Triconex modules, including main processors, I/O modules, and communication interfaces. It serves as the mechanical frame and electrical bus system, ensuring reliable power and data distribution in safety-critical systems.

Technical Specification

• Function:

• Provides mechanical support for module installation

• Distributes power and signal communications between installed modules

• Enables redundant and fault-tolerant system configurations

• Slot Configuration:

• Supports up to 18 module slots

• Slot layout: configurable for processor, I/O, and communication modules

• Backplane Bus:

• Redundant high-speed data buses for secure communication

• Supports TMR (Triple Modular Redundancy) architecture

• Electrical Parameters:

• Backplane voltage: 5 VDC, ±12 VDC (supplied from external power modules)

• Current rating: Designed to handle full load of populated modules

• Mechanical Specifications:

• Dimensions: 19-inch rack width × 10.5 inches height

• Weight: ~6.5 kg (varies based on configuration)

• Mounting: Rack or cabinet mountable

• Environmental Ratings:

• Operating Temperature: 0°C to +60°C

• Storage Temperature: -40°C to +85°C

• Humidity: 5% to 95%, non-condensing

• Vibration/Shock: Compliant with IEC 60068-2

• Compatibility:

• Compatible with Tricon v10 and v11 systems

• Supports hot-swap and redundant module configurations

• Material & Construction:

• Industrial-grade metal construction

• Gold-plated connectors for enhanced signal integrity and durability
