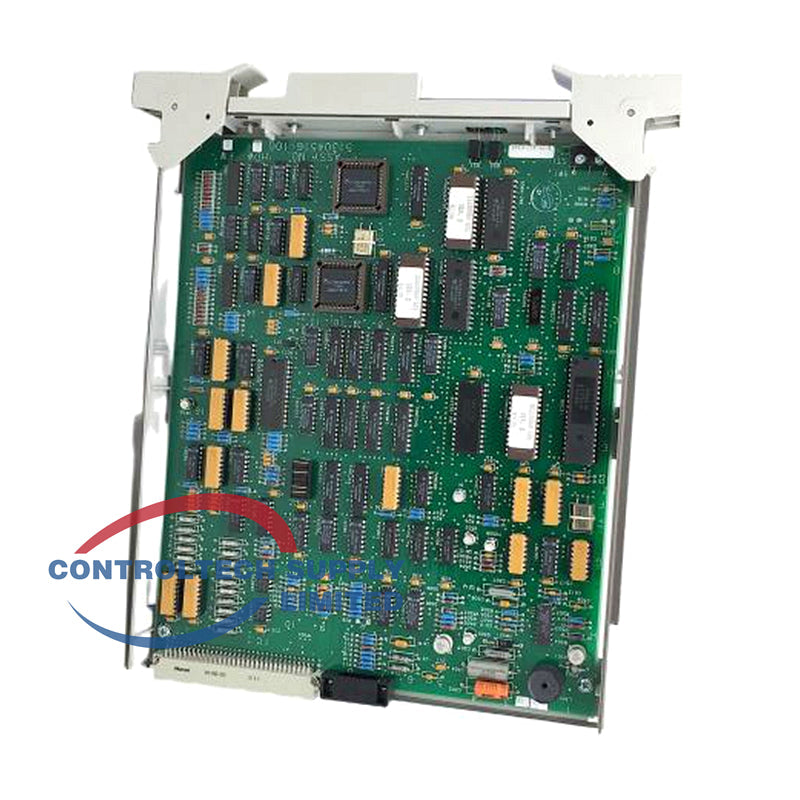

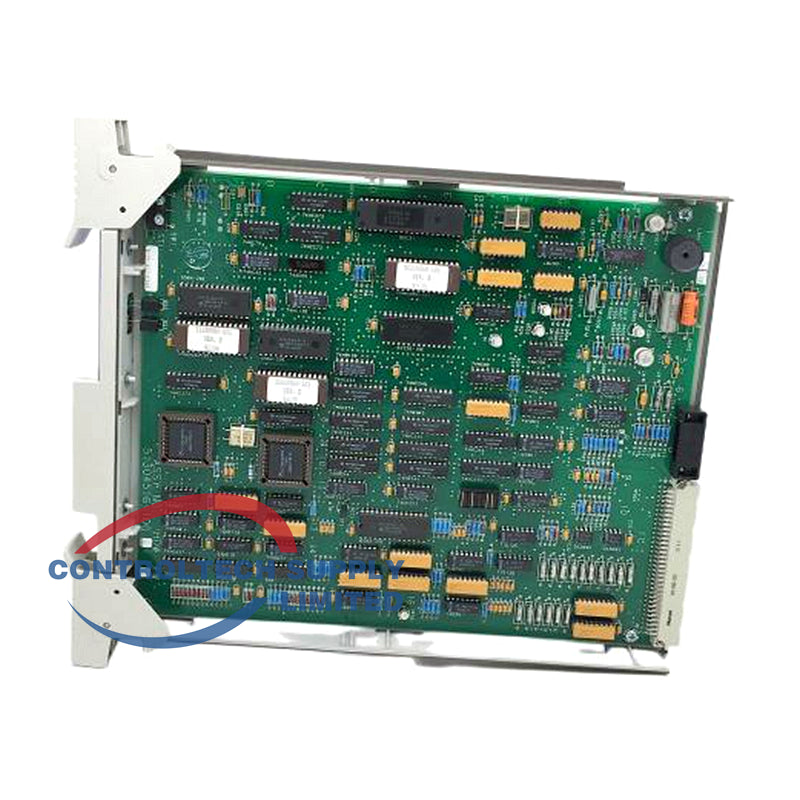

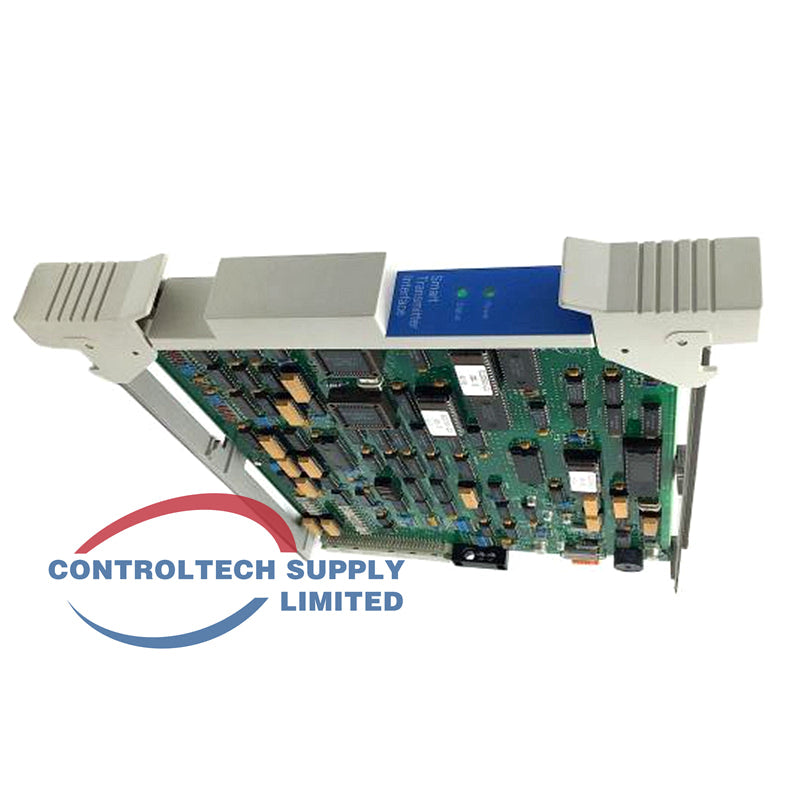

STIM IOP 16ch 51304516-100 Honeywell

Product Overview

Honeywell 51304516-100 is a Smart Transmitter Interface Multivariable (STIM) I/O Processor. It accepts up to 16 smart transmitter high-level analog inputs and supports single-ended or differential configurations in TDC 3000 systems.

Technical Specs

• Type: STIM IOP (Smart Transmitter Interface Multivariable)
• Channels: 16
• Input: High-level analog from smart transmitters
• Version: Non-CE
• Redundancy: Supported
• Compatible FTAs: MU/MC-TAIH and MU/MC-TSTX series

Key Features

• Supports single and multivariable smart transmitters
• Configurable single-ended or differential inputs
• Redundancy capable
• Integrates with Process Manager / APM / HPM

FAQ

• How many channels? 16 smart transmitter inputs.
• CE version? Use 51304516-200 for CE compliance.
• Redundancy? Yes, supported.

Installation Guide

1. Insert the IOP into an available card file slot.
2. Connect the matching Field Termination Assembly.
3. Wire smart transmitter signals to the FTA.
4. Configure channels in the control system.
5. Verify input readings and communication.

Selection Tips

• Choose for non-CE smart transmitter interface needs.
• Match with compatible TAIH or TSTX FTAs.
• Ideal for multi-variable transmitter applications.
