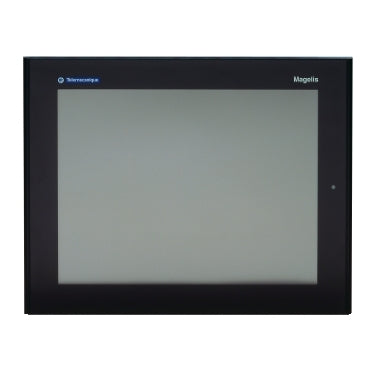

SCHNEIDER XBTGT5230 Advanced Touchscreen Panel
SCHNEIDER XBTGT5230 Advanced Touchscreen Panel
Manufacturer: SCHNEIDER
Product No.: XBTGT5230
Product Type: Advanced Touchscreen Panel
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The Schneider XBTGT5230 is an advanced touchscreen HMI panel in the Magelis XBTGT series. It provides visual interface and control capabilities for industrial machines and processes. Equipped with a backlit color STN LCD and resistive touchscreen, it allows operators to interact with equipment through graphical displays and configurable pages using Vijeo Designer software.
Technical Specifications
| Main | Details |
|---|---|
| Range of Product | Magelis XBTGT |
| Product or Component Type | Advanced touchscreen panel |
| Display Type | Backlit colour STN LCD |
| Display Colour | 4096 colours |
| Display Resolution | 640 × 480 pixels (VGA) |
| Display Size | 10.4 inch |
| Software Type | Configuration software |
| Software Designation | Vijeo Designer |
| Operating System | Magelis |
| Processor Name | CPU RISC |
| Processor Frequency | 266 MHz |
| Memory Description | 512 kB SRAM (backup with lithium battery); 32 MB Flash EPROM (application memory) |
| Integrated Connection Type | RJ45 COM2: RS485 ≤187.5 kbit/s, Siemens MPI ≤187.5 kbit/s; SUB-D 9 COM1: RS232C/RS422/RS485 ≤115.2 kbit/s; RJ45 Ethernet TCP/IP; Removable screw terminal block for power supply, digital output, digital input, audio output; 2 USB Type A master ports (V1.1) |
| Resistance to Electrostatic Discharge | 6 kV IEC 61000-4-2 level 3 |
| Cut-out Dimensions | 301.5 (+1/-0) × 227.5 (+1/-0) mm |
| Complementary | Details |
|---|---|
| Touch Sensitive Zone | 1024 × 1024 |
| Touch Panel | Analogue |
| Backlight Lifespan | 54,000 hours |
| Brightness | 8 levels via touch panel |
| Contrast | 8 levels via touch panel |
| Character Fonts | Taiwanese (Traditional Chinese), ASCII (European), Korean, Japanese (ANK, Kanji), Chinese (Simplified) |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Limits | 19.2 … 28.8 V |
| Inrush Current | 30 A |
| Power Consumption | 26 W |
| Local Signalling | 1 LED (green or orange) for normal operation or backlight fault |
| Number of Pages | Limited by internal memory capacity |
| Packing Units | Details |
|---|---|
| Unit Type of Package | 1 PCE |
| Package 1 Height | 18.5 cm (7.28 in) |
| Package 1 Width | 34 cm (13.39 in) |
| Package 1 Length | 41 cm (16.14 in) |
