Specifications:

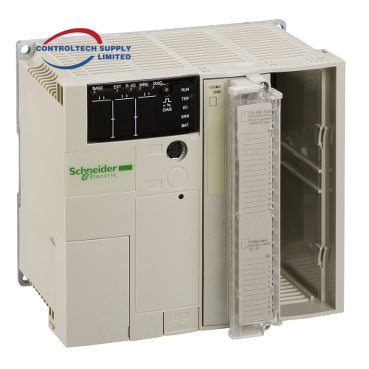

- Product Range: Modicon TSX Micro automation platform
- Product Type: Modular base controller
- Primary Voltage: 100-240 V AC, 90-264 V AC
- Input Current: 2 mA to 60 A
- Immunity to Microbreaks: 20 ms
- Output Current: 0.5 A
- Number of Slots: 3
-
Integrated Connection Types:
- 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s
- 1 Modbus Modbus RTU 19.2 kbit/s
- Realtime Clock: Yes
-
Memory Description:
- Flash: 15 Kwords data
- Internal RAM: 20 Kwords data
- Internal RAM (with PCMCIA card): 128 Kwords program and data
- Internal RAM: 128 Kwords data storage
-
Maximum Size of Object Areas:
- 128 %KWi constant words
- 256 %Mi
- 1 %MWi internal words
-
Execution Time per Instruction:
- 0.13 µs Boolean without PCMCIA card
- 4.5 µs arithmetic REAL floating without PCMCIA card
- 0.19 µs Boolean with PCMCIA card
- 4.5 µs arithmetic REAL floating with PCMCIA card
-
Execution Time for 1 Kinstruction:
- 5.88 µs 100% Boolean without PCMCIA card
- 0.27 µs 65% Boolean and 35% numerical without PCMCIA card
- 4 µs 100% Boolean with PCMCIA card
- 0.266 µs 65% Boolean and 35% numerical with PCMCIA card
-
Application Structure:
- 16 event tasks
- 1 master task
- 1 fast task
-
System Overhead:
- 1.6 ms master task
-
Protection Type:
- Overload protection
- Short-circuit
- Total Useful Secondary Power: 16 W
- Electromagnetic Compatibility: Various immunity and resistance standards
- Operating Temperature: 32°F to 140°F (0°C to 60°C)
- Storage Temperature: -13°F to 158°F (-25°C to 70°C)
- Relative Humidity: 10% to 95% without condensation for operation, 5% to 95% without condensation for storage
- Operating Altitude: 0 to 6561.68 ft (0 to 2000 m)
-
Dimensions:
- Width: 13.44 in (341.4 mm)
- Height: 5.94 in (151 mm)
- Depth: 5.98 in (152 mm)
- Net Weight: 3.79 lb (1.72 kg)
Ordering and Shipping Details:
- Category: 22556-TSX MICRO, PL7 MICRO & ACCESS
- Discount Schedule: PC14
- GTIN: 3389110580518
- Returnability: No
- Country of Origin: FR (France)
Packing Units:
-
Unit Type of Package 1: PCE
- Number of Units in Package 1: 1
-
Package 1 Dimensions:
- Height: 5.91 in (15.0 cm)
- Width: 6.69 in (17.0 cm)
- Length: 9.45 in (24.0 cm)
- Package 1 Weight: 4.02 lb (1.824 kg)
-
Unit Type of Package 2: S04
- Number of Units in Package 2: 4
-
Package 2 Dimensions:
- Height: 11.81 in (30.0 cm)
- Width: 15.75 in (40.0 cm)
- Length: 23.62 in (60.0 cm)
- Package 2 Weight: 17.61 lb (7.99 kg)
