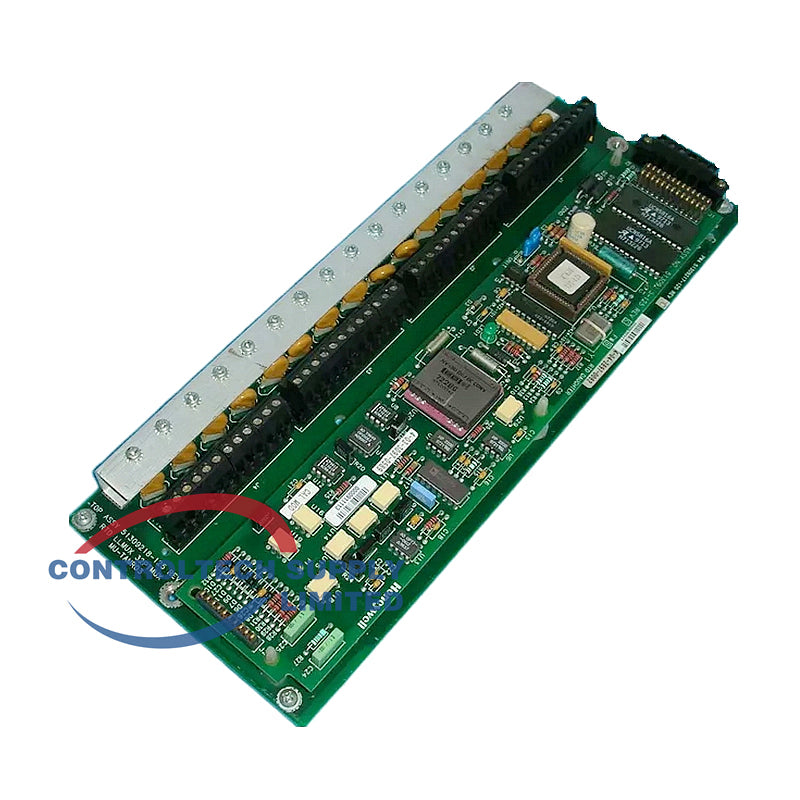

The Honeywell 51309218-125 is a low-level analog multiplexer Field Termination Assembly associated with RTD signal handling in TDC 3000 / Process Manager systems. It supports precise temperature measurement applications.
Technical Specs
Type: Low-Level / RTD Multiplexer FTA
System: TDC 3000 / Process Manager
Signal focus: RTD and low-level analog
Version: Non-coated / standard (125 series)
Key Features
Supports RTD low-level signal multiplexing
Designed for Process Manager architectures
Compatible with matching IOP modules
Industrial FTA construction
FAQ
Primary signal? RTD / low-level analog.
System? TDC 3000 family.
Function? Field termination and multiplexing.
Installation Guide
Mount the FTA on the mounting channel.
Connect the IOP interface cable.
Wire RTD sensors according to channel assignment.
Verify readings and compensation settings.
Secure terminations and covers.
Selection Tips
Select for RTD low-level multiplexing needs.
Confirm matching IOP compatibility.
Use genuine FTAs for accurate temperature measurement.
