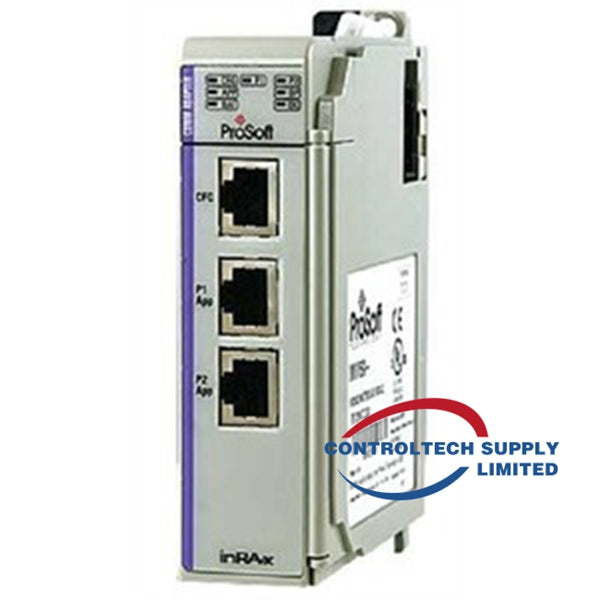

The Prosoft MVI69-ADMNET is a single-slot, backplane-compatible module for the CompactLogix/MicroLogix platform. It allows CompactLogix and MicroLogix processors to communicate with Ethernet devices and hosts using the Ethernet protocol. This makes it an ideal solution for applications that require the CompactLogix or MicroLogix processor to communicate with a variety of Ethernet devices, such as PLCs, HMIs, and SCADA systems.
Specification:
- Supported Modbus TCP/IP Functions: 1, 2, 3, 4, 5, 6, 8, 15, 16, 17, 22, and 23
- Modbus TCP/IP Master/Slave Operation: Enables the module to initiate or respond to Modbus TCP/IP communication requests, providing flexibility for various network configurations.
- Data Table Size: Up to 4096 data points, allowing for storing and managing a large amount of data.
- Ethernet Port Type: 10BASE-T/100BASE-TX
- Ethernet Communication Protocol Support: Modbus TCP/IP (Transmission Control Protocol/Internet Protocol), ensuring compatibility with a wide range of Modbus TCP/IP devices.
- Environmental Specifications: Designed to operate in extreme environments, withstanding temperatures from -25°C to 60°C (-13°F to 140°F) and humidity levels of 5% to 95%.
Features:
- Plug-and-play configuration: Easy integration with ControlLogix processors using RSLogix 5000 software, simplifying setup and implementation.
- Real-time data exchange: Enables efficient and reliable data transfer between the ControlLogix processor and Modbus TCP/IP devices, facilitating real-time communication and monitoring.
- Modbus TCP/IP Master/Slave Operation: Supports communication as a Modbus TCP/IP master or slave, providing versatility in network configurations and data exchange patterns.
- Flexible addressing: Supports various addressing modes for input and output data, ensuring compatibility with diverse Modbus TCP/IP devices.
- Comprehensive diagnostics: Provides detailed error and status information for efficient troubleshooting and maintenance.
- Rugged design: Built to withstand harsh industrial environments, ensuring reliable operation under demanding conditions.
Applications:
- Industrial automation: Connecting ControlLogix processors to Modbus TCP/IP devices in various industrial applications, such as manufacturing, process control, and robotics.
- Distributed control systems: Integrating ControlLogix processors into distributed control systems that utilize Modbus TCP/IP for communication.
- SCADA systems: Enabling real-time data exchange between ControlLogix processors and SCADA systems for monitoring and control purposes.
- Remote I/O communication: Facilitating communication between ControlLogix processors and remote I/O devices connected to the Modbus TCP/IP network.
- Legacy system integration: Interfacing ControlLogix processors with legacy Modbus TCP/IP devices in existing industrial systems.
