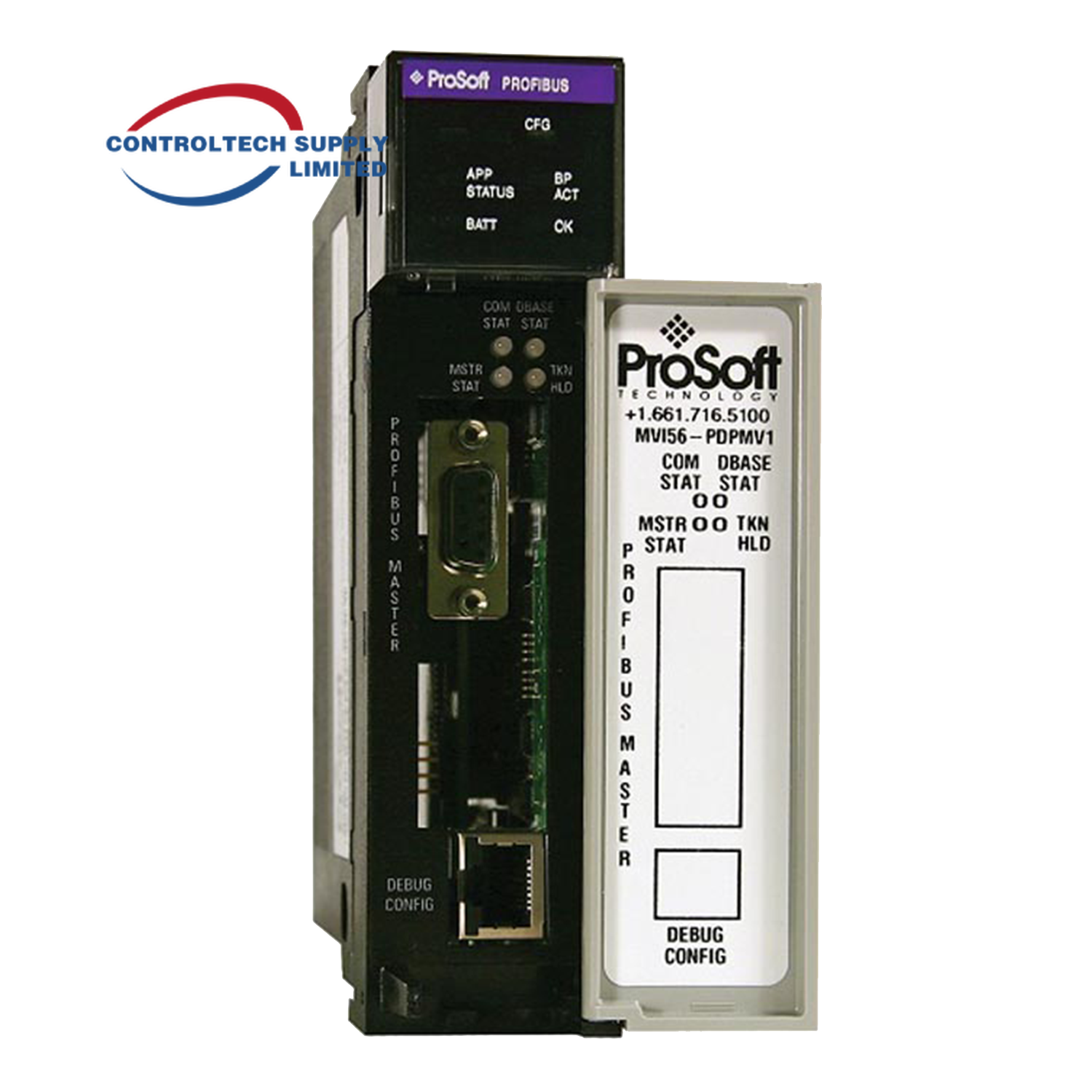

Prosoft MVI56-PDPMV1 PROFIBUS DPV1 Master Communication Module

The MVI56 PROFIBUS DP-V1 Master Network Interface Module allows ControlLogix processors to easily communicate with slave devices supporting PROFIBUS DP-V0 and DP-V1 protocol. The module acts as an input/output module between the PROFIBUS network and the processor supporting complete Master specifications according to IEC 61158.

Features and Benefits

The module supports complete Master specifications according to IEC 61158. Acyclic parameter data can be transferred with Class 1 or Class 2 DPV1 services, allowing processors to easily communicate with slave devices supporting PROFIBUS DPV0/V1 protocol.

The module acts as an input/output module between the PROFIBUS network and the ControlLogix processor. Data transfer from the processor is asynchronous with the I/O data transfer on the PROFIBUS network. Databases are user-defined and stored in the module to hold the data required by the protocol.

Specifications

• Single Slot - 1756 backplane compatible
• The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module
• Ladder Logic is used for data transfer between module and processor. Sample ladder file (add-on instruction) included.
• Local or remote rack
• Configurable I/O backplane sizes allow optimal performance for remote rack applications
• CIPconnect™ enabled. Module supports communications with ProSoft Configuration Builder and FDT comDTM via Ethernet routing using Rockwell Automation Ethernet interface.

Hardware

Specification	Description
Backplane Current Load	800 mA @ 5.1 VDC 3mA @ 24 VDC
Operating Temperature	32° F to 140° F (0° C to 60° C)
Storage Temperature	-40° F to 185° F (-40° C to 85° C)
Shock	30 g Operational 50 g non-operational
Vibration	5 g from 10 to 150 Hz
Relative Humidity	5% to 95% (without condensation)
LED Indicators	Module Status Backplane Transfer Status Application Status Serial Activity and Error LED Status
Debug/Configuration port (CFG)
CFG Port (CFG)	RJ45 (DB-9M with supplied cable) RS-232 only CIPconnect™ Ethernet routing using 1756-ENBT, 1756-EN2T or similar
Shipped with Unit	RJ45 to DB-9M cables for each port 6-foot RS-232 configuration cable
