PanelView Plus 600 Grayscale Touch 2711P-T6M3D Allen-Bradley DC

Product Overview

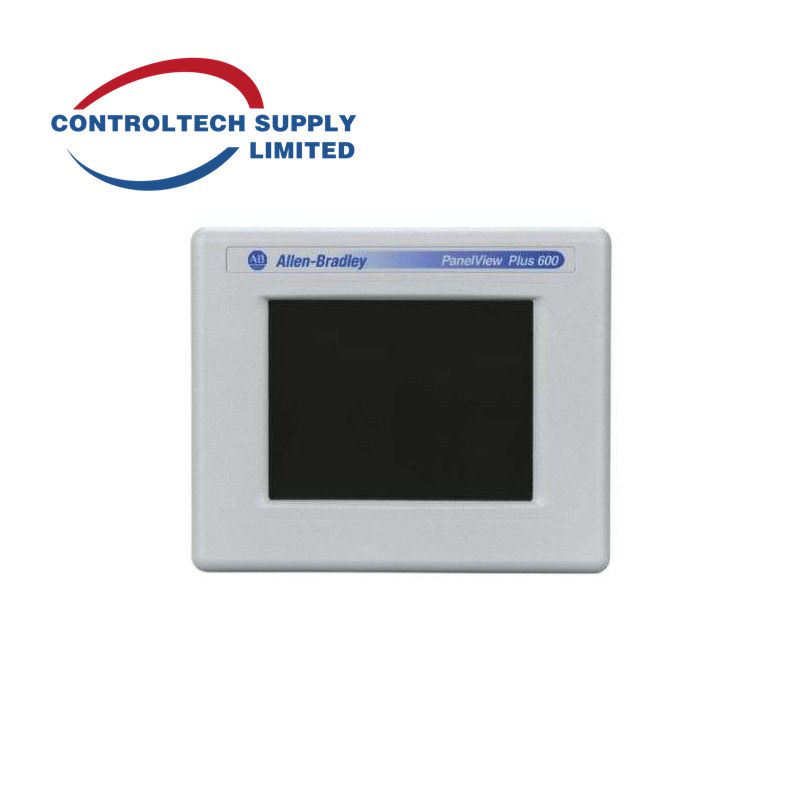

Allen-Bradley 2711P-T6M3D is a PanelView Plus 600 operator terminal with a 5.5-inch monochrome (grayscale) touchscreen display. It is DC powered (18–32 V) and includes RS-232, Ethernet and DH-485 communication ports for legacy and modern network connectivity.

Technical Specs

• Display: 5.5" grayscale FSTN, 320 × 240 resolution
• Input: Analog resistive touch
• Power: 18–32 V DC (24 V DC nominal)
• Power consumption: Max 25 W (1 A at 24 V DC)
• Ports: RS-232, Ethernet, DH-485, USB host
• Memory: 5 MB system memory class
• Backlight: CCFL, 50 000 h min

Key Features

• Compact grayscale touch HMI
• Built-in Ethernet and DH-485
• DC-powered for flexible installation
• Compatible with FactoryTalk View ME applications

FAQ

• Screen? 5.5 inch grayscale touch.
• Power? 18–32 V DC.
• Networks? Ethernet, DH-485, RS-232.

Installation Guide

1. Prepare the panel cut-out.
2. Mount and secure the terminal.
3. Connect 24 V DC power and network cables.
4. Download the FactoryTalk View ME application.
5. Test touch operation and communication.

Selection Tips

• Suitable replacement for existing PanelView Plus 600 grayscale units.
• Confirm application and firmware compatibility.
• Optional communication modules can be added for additional networks.
