LCN I/O Paddle Board 51305072-100 Honeywell

Product Overview

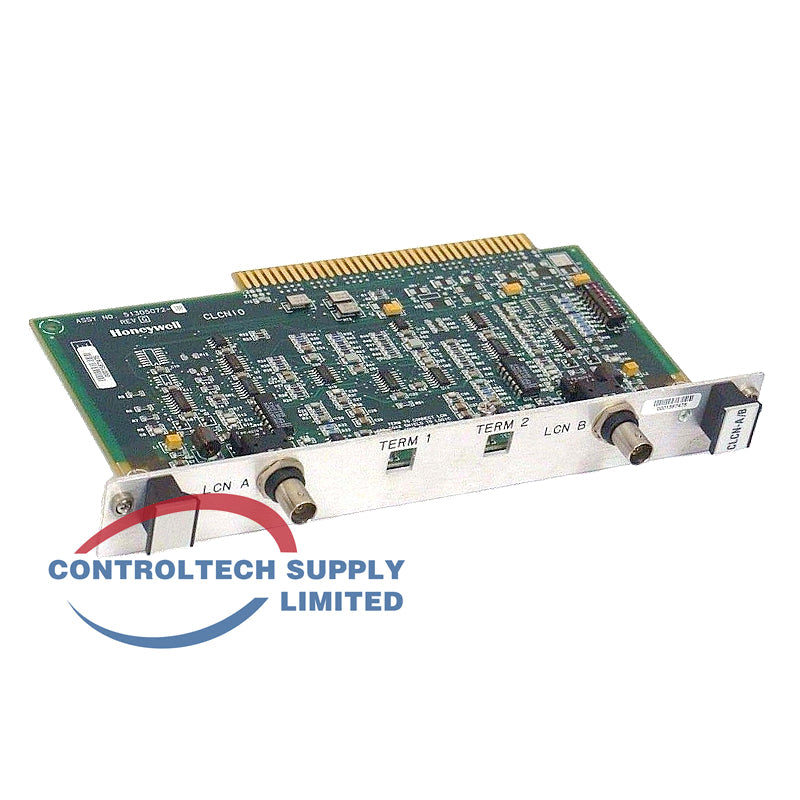

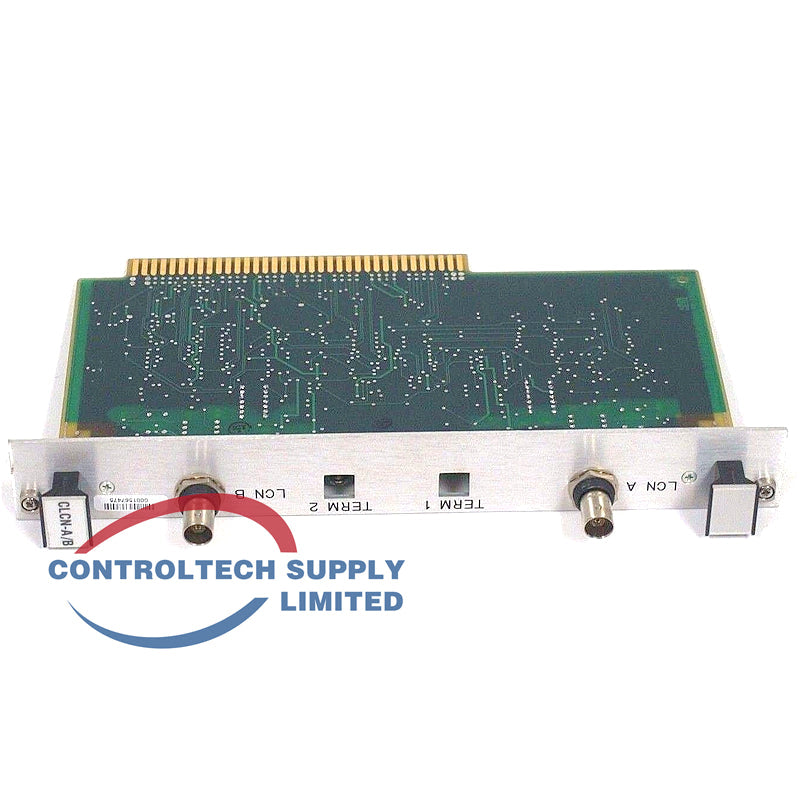

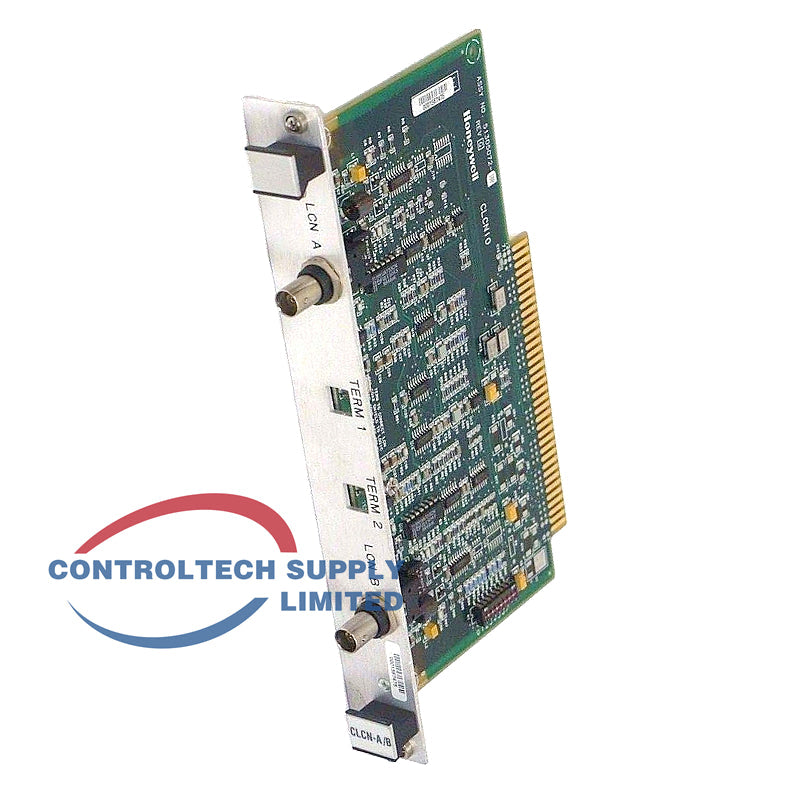

The Honeywell 51305072-100 is a Local Control Network (LCN) I/O paddle board for 5-slot or 10-slot chassis. It sets the LCN node address and provides LCN A/B cable connections.

Technical Specs

• Type: LCN I/O Card / Paddle Board
• Chassis: 5-slot or 10-slot
• Function: LCN node address setting and A/B cable interface
• System: TDC 3000 Local Control Network

Key Features

• LCN A and B cable connections
• Node address configuration
• Designed for LCN chassis integration
• Essential for LCN network communication

FAQ

• What network? Local Control Network (LCN).
• Chassis support? 5-slot or 10-slot.
• Main function? Address setting and cable interface.

Installation Guide

1. Install the paddle board in the chassis.
2. Set the LCN node address via jumpers or switches.
3. Connect LCN A and B cables.
4. Secure the board and restore power.
5. Verify network communication.

Selection Tips

• Match the exact revision to your chassis.
• Required for LCN node connectivity.
• Keep spares for critical LCN nodes.
