Description

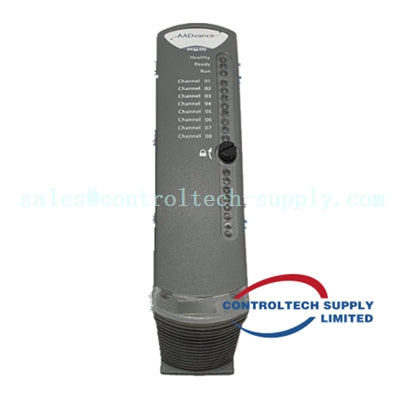

The T9451 Digital Output Module provides eight output channels for controlling up to eight field devices. Each channel is capable of switching up to 1 A at 32 VDC. The module incorporates comprehensive diagnostics, including per-channel voltage and load current monitoring, reverse current protection, and short-circuit and open-circuit line monitoring.
The T9451 is designed to always switch an output off when demanded. No single failure within the module can result in a stuck-on output condition, ensuring a high level of operational safety. Dual redundant power feeds for field devices are supported without the need for external diodes, simplifying system design and improving reliability in safety-critical applications.
Specifications
| Attribute | Specification |
|---|---|
| Functional Characteristics | |
| Output Channels | 8 |
| Performance Characteristics | |
| Safety Integrity Level | IEC 61508 SIL 3 |
| Safety Architecture / Degradation | 1oo1D, 1oo2D |
| Self-Test Interval | < 30 minutes (30 s per module) |
| Electrical Characteristics | |
| Module Supply Voltage | Redundant +24 VDC nominal, 18 to 32 VDC |
| Module Power Dissipation | 3.0 W (10.2 BTU/hr) |
| Maximum Voltage Without Damage | −1 V to +60 VDC |
| Operating Field Supply Voltage | 18 to 32 VDC |
| Maximum Field Voltage Slew Rate | 150 V/s |
| Output Current | 1 A continuous per channel |
| Minimum Current for Line Monitoring | 10 mA per module (20 mA for dual pair) |
| Maximum Voltage Drop | 1 VDC |
| Maximum Output Current (Derated) | 8 A all channels @ 60 °C |
| Derated Output Current at Max Temperature | 6 A all channels @ 70 °C |
| Max De-energised Output Voltage Slew Rate | 12 V/ms |
| Max Energised Output Current Slew Rate | 0.9 A/ms |
| Output Off Resistance (Leakage) | 50 kΩ |
| Voltage Monitoring Accuracy | ±0.5 V |
| Current Monitoring Accuracy | ±10 mA |
| Output Overload Protection (Surge) | 2 A for up to 50 ms |
| Output Overload Protection (Continuous) | 1.5 A |
| Max Field Loop Power Dissipation | 0.57 W per field loop (1.94 BTU/hr) |
| Mechanical Specifications | |
| Dimensions (H × W × D) | 166 × 42 × 118 mm (6½ × 1-21/32 × 4-21/32 in) |
| Weight | 340 g (12 oz) |
| Enclosure Material | Non-flammable plastic |
