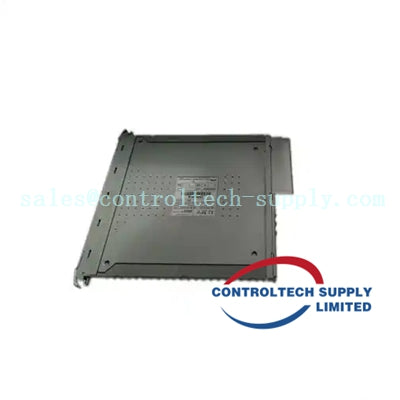

ICS Triplex T8110B Trusted TMR Processor
ICS Triplex T8110B Trusted TMR Processor
Manufacturer: ICS Triplex
Product No.: T8110B
Product Type: TMR Processor
Product Origin: USA
Payment: T/T
Weight: 2940g
Shipping port: Xiamen
Warranty: 12 months
Description
The Trusted TMR Processor is a fault-tolerant design based on a Triple Modular Redundant (TMR) architecture operating in a lock-step configuration. Figure 1 illustrates, in simplified form, the basic structure of the Trusted TMR Processor module.The module contains three Processor Fault Containment Regions (FCRs). Each FCR includes a Motorola PowerPC series processor and its associated memory resources (EPROM, DRAM, Flash ROM, and NVRAM), memory-mapped I/O, as well as voter and glue logic circuits. Each Processor FCR provides voted two-out-of-three (2oo3) read access to the memory systems of the other two Processor FCRs, thereby eliminating divergent operation and ensuring high system integrity.
Specifications
| Parameter | Specification |
|---|---|
| Voltage Range | 20 Vdc to 32 Vdc |
| Maximum Load | 80 W |
| Heat Dissipation | 80 W |
| Compatible Chassis | T8100 |
| Processor Type | Motorola PowerPC series |
| Processor Clock Speed | 100 MHz |
| I/O Interface | Triple redundant Inter-Module Bus |
| Memory Type and Capacity | |
| DRAM | 16 MB EDO, 60 ns |
| EPROM | 512 kB |
| Flash Memory | 2 MB |
| NVRAM | 128 kB |
| Retained Variable Storage | |
| Storage Requirement per Variable | 4 kB |
| Boolean Variables | 1 byte |
| Analogue Variables | 4 bytes |
| Timer Variables | 5 bytes |
| SOE Buffer Size | 1000 events, transferred to CI buffer of 4000 events |
| Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
| Non-operating Temperature | −25 °C to 70 °C (−13 °F to 158 °F) |
| Relative Humidity (Operating, Storage & Transport) | 10% to 95%, non-condensing |
| Physical Dimensions | |
| Height | 266 mm (10.5 in) |
| Width | 93 mm (3.6 in) |
| Depth | 303 mm (12.0 in) |
| Weight | 2.94 kg (6.48 lb) |
