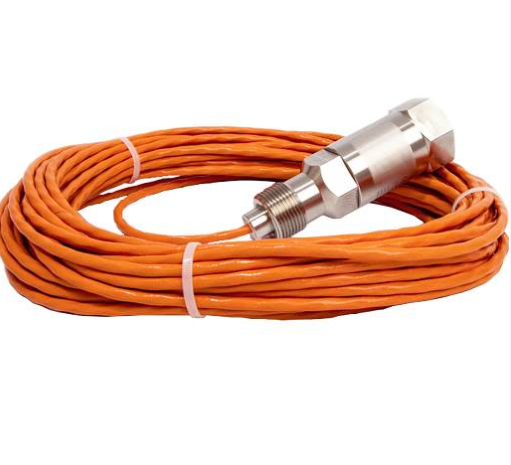

Honeywell LG1093AC05 Flame Detector

Honeywell LG1093AC05 Flame Detector

The LG1093AC05 is a high-reliability solution designed for monitoring gas turbine flames. Ideal for power generation and compressor applications, it utilizes advanced UV radiation detection technology for accurate flame monitoring.

Description:
The Honeywell LG1093AC05 flame detector detects UV radiation emitted by hydrocarbon flames, providing reliable signals for flame presence or absence. With over 35 years of proven performance on General Electric (GE) gas turbines, this system is a trusted choice in the industry. Key features include:

• Proven Performance: Trusted by GE gas turbines for over 30 years.
• High Sensitivity: Utilizes a Geiger-Mueller-type sensor phototube to detect UV radiation in the 180-260 nm range.
• Durability: Offers a two-year shelf life and a Mean Time Between Failures (MTBF) of 10,000 hours.
• Wide Temperature Range: Operates effectively in temperatures from -40°C to 176°C.
• Hardware Outputs: Compatible with EG1033 amplifier modules (e.g., EG1033AA, EG1033AB, and EG1033AC).

Technical Specifications:

• Sensor Type: Geiger-Mueller-type sensor phototube
• UV Detection Range: 180-260 nm
• Response Times:
  • Flame Present: 0.1 seconds
  • Flame Loss: 0.2 seconds
• Voltage Requirements:
  • 28 Vdc
  • 20-35 Vdc
  • 115 Vac
• Operating Distance: Up to 330 meters (1000 feet) from sensor to amplifier
• Temperature Range: -40°C to 176°C
• Approvals:
  • CE/ATEX (EEx d IIA T3)
  • Factory Mutual (Class I, Div 1 and 2, Groups B, C, and D)
• Cable Length: 24 feet (7.3 meters)
• Shipping Weight: 3 Kg
