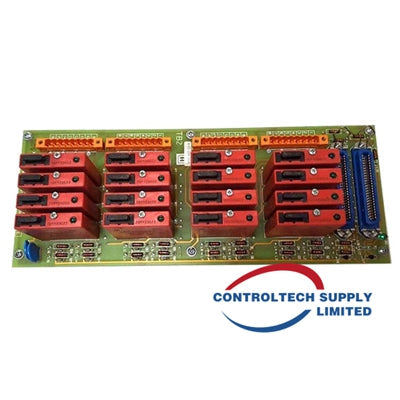

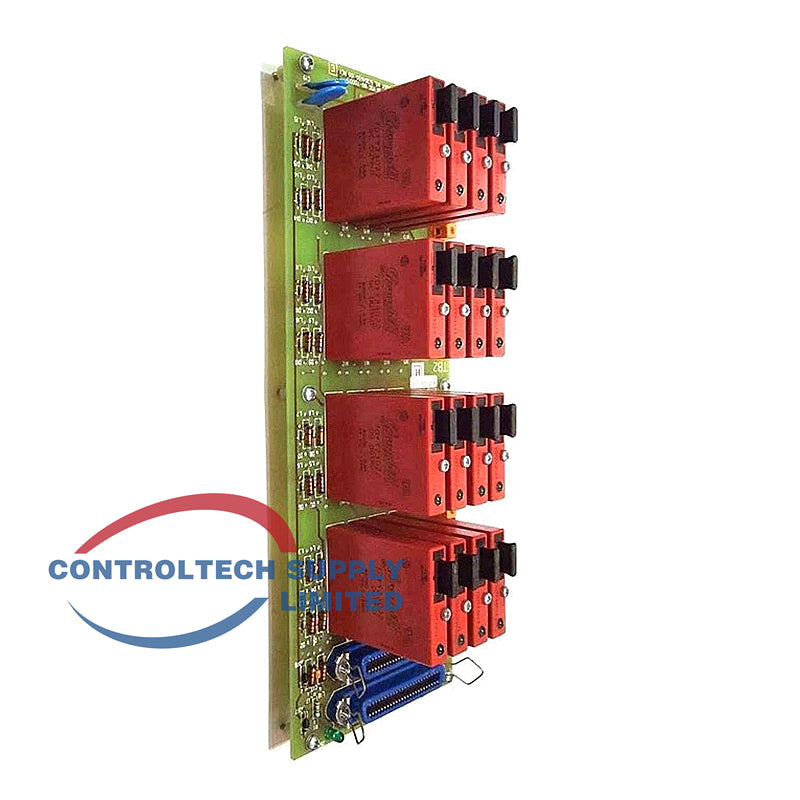

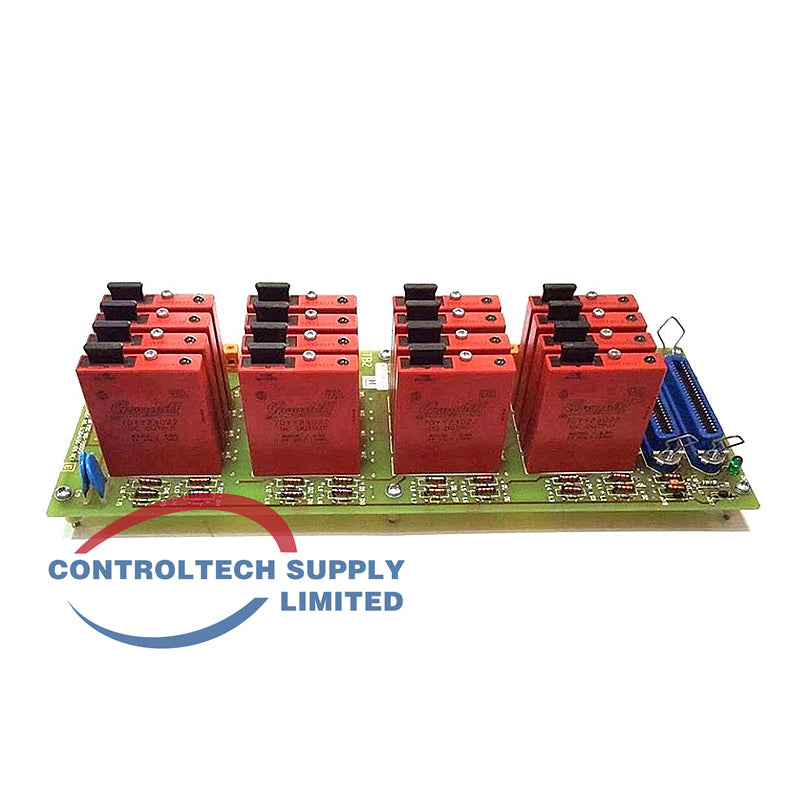

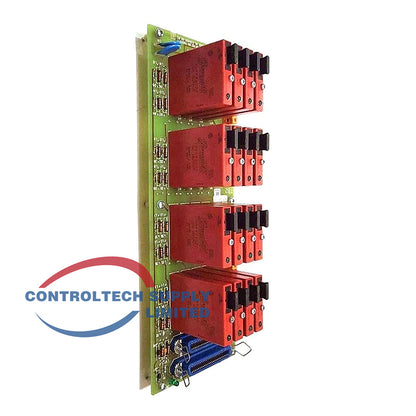

Honeywell DO FTA 3-30V 16ch 51304650-150

Product Overview

The Honeywell 51304650-150 is a 16-channel solid-state Digital Output FTA for 3–30 VDC loads. It provides optically isolated outputs and is commonly referenced as MC-TDODI3.

Technical Specs

• Channels: 16 optically isolated
• Load voltage: 3–30 VDC
• Compatible IOPs: MU/MC-PDOX01 / PDOX02
• Terminals: Compression
• Fuse: 2.5 A
• Size: B (307 mm)

Key Features

• Solid-state optically isolated outputs
• Wide 3–30 VDC load range
• Compression terminals
• Reliable for low-voltage DC switching

FAQ

• Channel count? 16.
• Output type? Solid-state 3–30 VDC.
• Isolation? Optical isolation.

Installation Guide

1. Mount the FTA on the channel.
2. Connect the IOP interface cable.
3. Wire field loads observing polarity.
4. Install fuses and verify ratings.
5. Test each output channel.

Selection Tips

• Choose for 3–30 VDC solid-state digital outputs.
• Confirm IOP compatibility.
• Suitable for low-voltage DC field devices.
