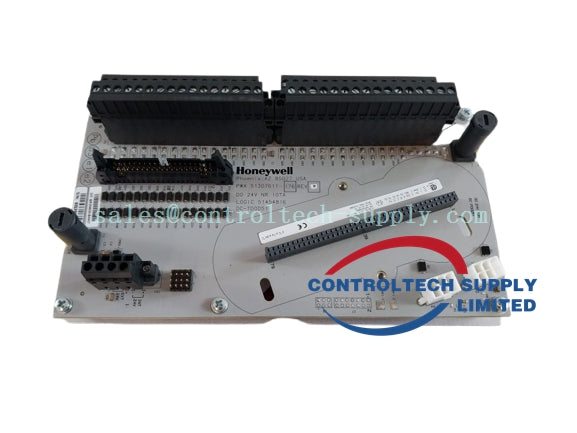

Honeywell CC-TDOD51 Series C Digital Output Module
Honeywell CC-TDOD51 Series C Digital Output Module
Manufacturer: HONEYWELL
Product No.: CC-TDOD51
Product Type: Digital Output Module
Product Origin: USA
Payment: T/T
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months
Description
The Honeywell CC‑TDOD51 Control Module is a rugged industrial digital output module designed for use in Honeywell Series C I/O systems. It provides multiple solid-state digital output channels to control field devices such as solenoid valves, indicators, relays, and other 24 VDC loads in process automation and distributed control systems. The module’s SINK-type design and field isolation ensure reliable switching performance with galvanic isolation for safety and signal integrity. It is suitable for harsh industrial environments with broad temperature and humidity tolerance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | CC-TDOD51 |
| Product Type | Series C Digital Output Module |
| Manufacturer | Honeywell |
| I/O System Compatibility | Honeywell Series C I/O system |
| Output Channels | 32 digital outputs |
| Output Type | SINK (open drain) |
| Load Voltage | 15 – 30 V DC maximum |
| Load Current per Channel | 0.1 A (maximum) |
| Galvanic Isolation | 1000 VAC RMS system-to-field isolation |
| On-State Voltage | ~0 V DC (at max load) |
| Off-State Voltage (Typical) | 24 V DC |
| Off-State Leakage Current | 100 µA (maximum) |
| Turn-On / Turn-Off Time | ≤ 10 ms |
| FAILOPT Safe-State Support | Configurable per channel (hold last value or shed to safe state) |
| Operating Temperature Range | −40 °C to +70 °C |
| Storage Temperature Range | −55 °C to +85 °C |
| Humidity | 0 % to 95 % RH (non-condensing) |
| Dimensions (Approx.) | 263 mm × 58 mm × 28 mm |
| Weight (Approx.) | 0.45 kg |
| Protection Features | Short-circuit and over-voltage protection |
| Country of Origin | USA |
