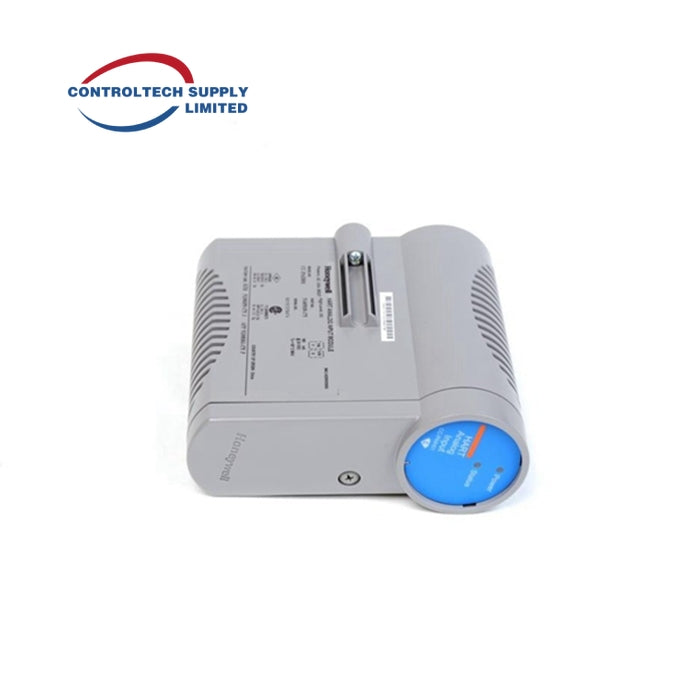

Honeywell Analog Input Module CC-PAIH02 In Stock 2023

Honeywell Analog Input Module CC-PAIH02 In Stock 2023

Brand: Honeywell
Product Type: Analog Input Module
Payment:T/T, Western Union
Shipping Port:Jinhua China
Lead Time:1-3 Working Days
Condition: Brand New And 100% Original
Warranty: 12 months



Item No:



Network Interface Module


1 year


One Year Warranty


100% New And Original

Delivery Time:

1-3 Days



Product INFO.:

With certificate of origin

With warranty letter

The Honeywell CC-PAIH02 is a high-level analog input module with HART communication. It is designed for use in the Experion PKS system, but can be used with other systems that support HART communication.

The CC-PAIH02 has 16 channels, 12 of which are single-ended and 4 of which are differential. The input range for each channel is 0 to 5 V, 1 to 5 V, 0.4 to 2 V, or 4 to 20 mA. The common mode rejection ratio is 70 dB, and the normal mode rejection ratio is 60 dB. The A/D converter resolution is 16 bits.

The CC-PAIH02 has a number of features that make it a valuable tool for industrial automation applications. These features include:

HART communication: This allows the module to communicate with HART-enabled devices, such as transmitters and sensors.
Extensive self-diagnostics: The module provides a number of self-diagnostics that can be used to troubleshoot problems.
Optional redundancy: The module can be configured for redundancy, which provides increased reliability.
Open wire detection: This feature helps to protect the module from damage caused by open wires.
Non-incendive power: The module can be powered using non-incendive power, which makes it suitable for use in hazardous areas.
The CC-PAIH02 is a versatile and reliable analog input module that can be used in a wide variety of industrial automation applications. It is a good choice for applications that require HART communication, self-diagnostics, redundancy, or open wire detection.

Here are some of the applications where the Honeywell CC-PAIH02 can be used:
Process control
Temperature monitoring
Level measurement
Flow measurement
Pressure measurement
Vibration monitoring
Asset tracking
Condition monitoring
Safety systems
