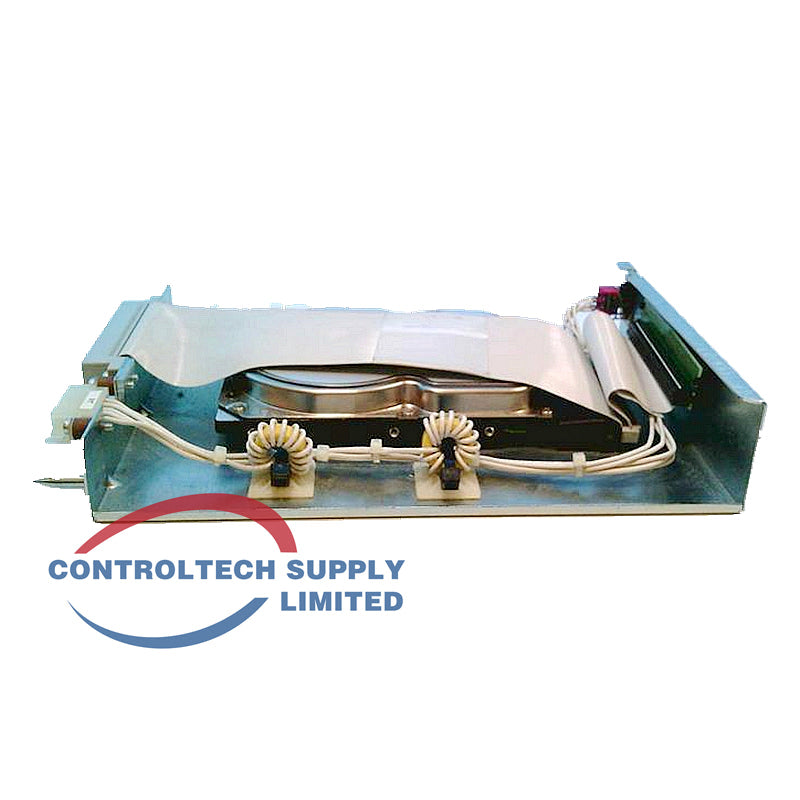

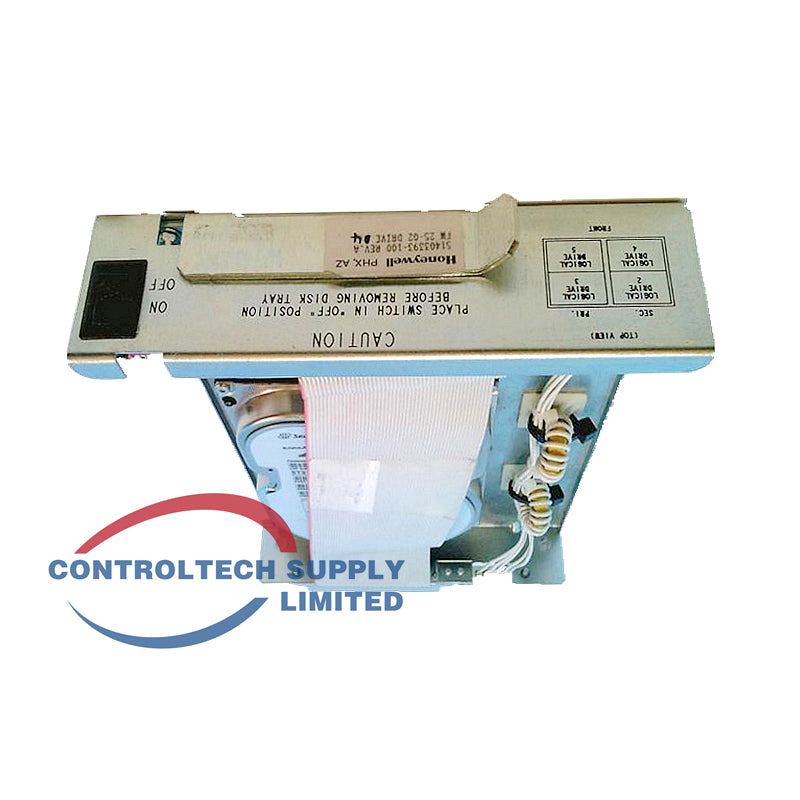

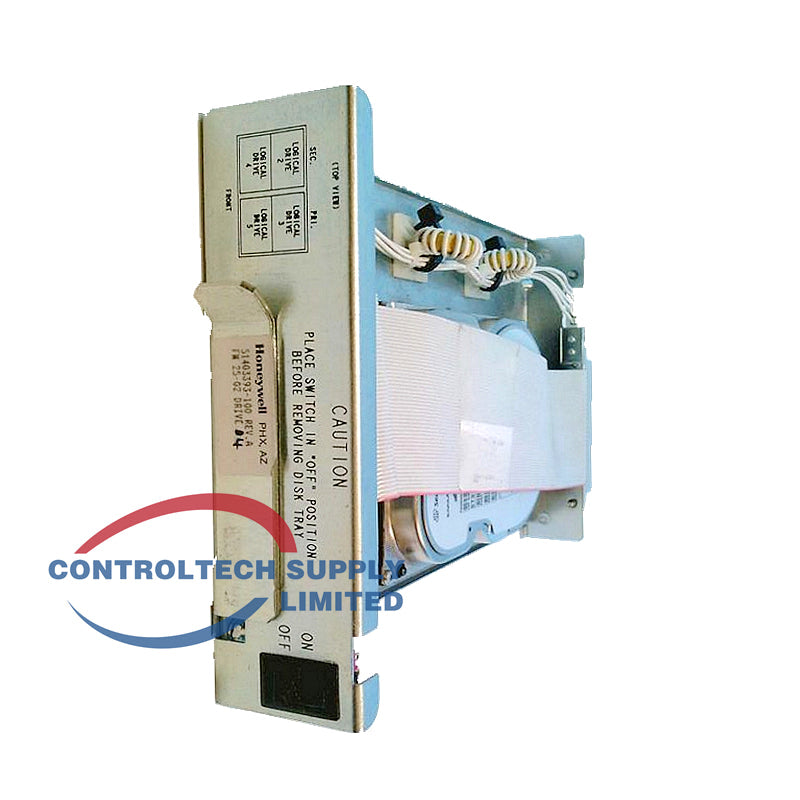

Honeywell 51403393-100 Drive Disk Tray for WDA Chassis

Product Overview

The Honeywell 51403393-100 is a Drive Disk Tray designed for five-slot WDA (Winchester Disk Array) chassis used with History Modules in TDC 3000 systems. It supports vertical-mounted drives and provides mechanical and power interfacing for the disk assemblies.

Technical Specs

• Type: Drive Disk Tray
• Compatibility: Five-slot WDA chassis (supports two drive trays)
• Drive orientation: Vertical mounted drives
• Power switch: Located on the right side for maintenance access
• System: TDC 3000 History Module / WDA
• Operating temperature: 0 °C to 50 °C typical

Key Features

• Secure mounting for History Module disk drives
• Designed specifically for WDA five-slot chassis
• Convenient power switch placement
• Supports dual-tray configurations

FAQ

• Purpose? Drive tray for WDA History Module chassis.
• Chassis? Five-slot WDA.
• Drives? Vertical mounted.

Installation Guide

1. Install the tray into the WDA chassis slot.
2. Mount the compatible disk drives vertically in the tray.
3. Connect power and data interfaces.
4. Secure the assembly and verify power switch operation.
5. Confirm disk recognition by the History Module controller.

Selection Tips

• Required when replacing or expanding History Module disk capacity.
• Confirm chassis type (five-slot WDA) before ordering.
• Useful spare for History Module maintenance.
