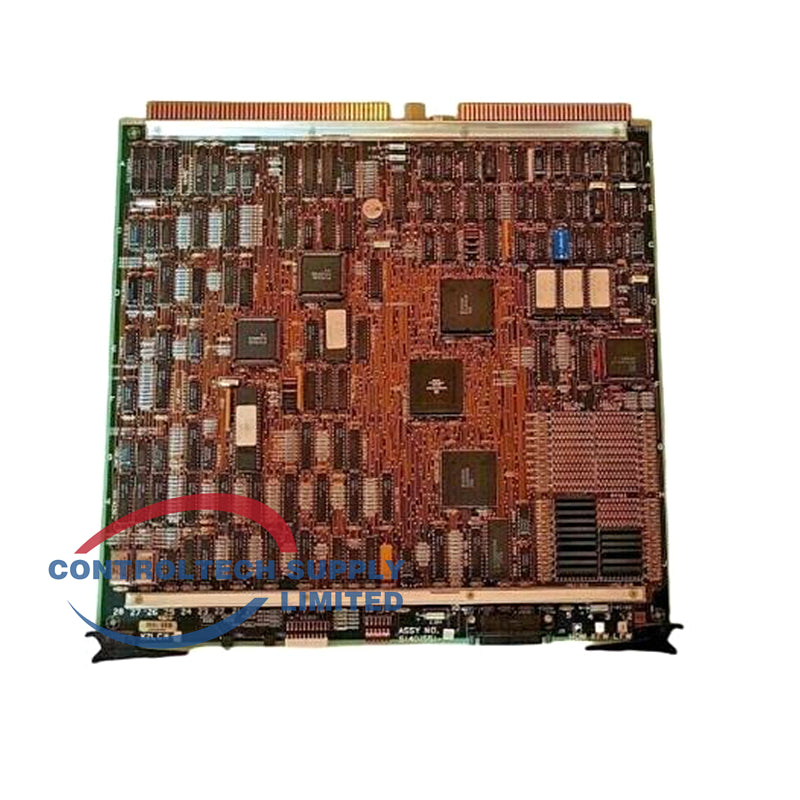

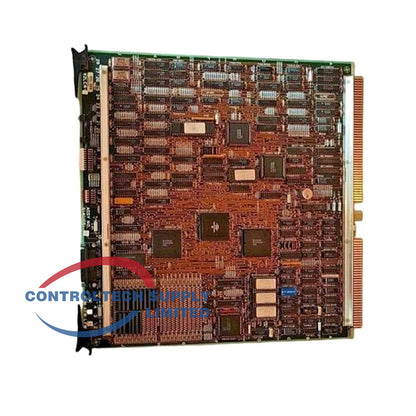

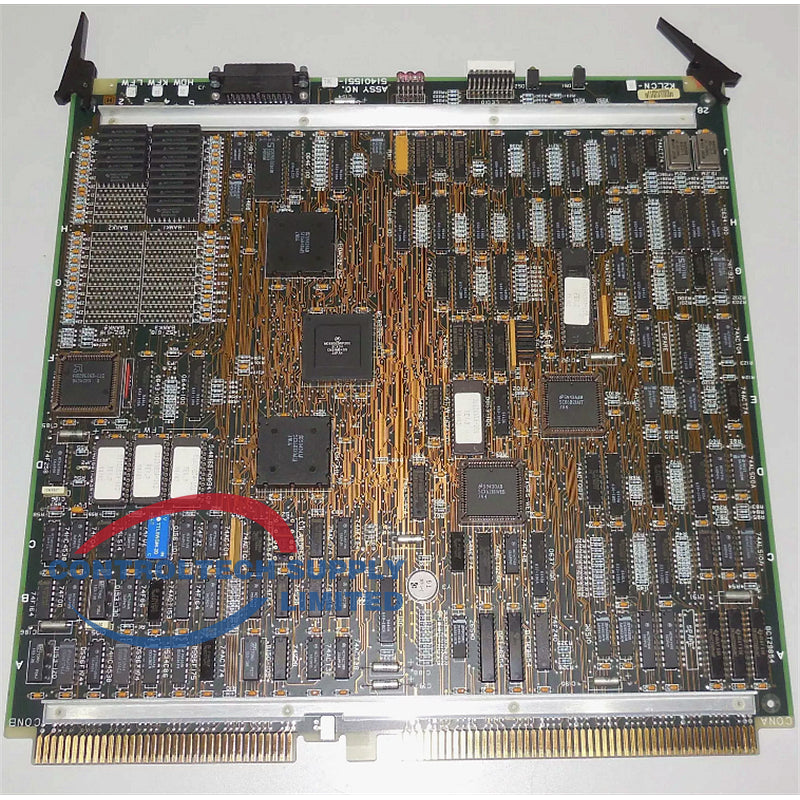

The Honeywell 51401551-301 is a processor module used in TDC 3000 and related HPM/APM systems. It serves as a main controller board providing processing capability for control and communication functions within the chassis.
Technical Specs
Type: Processor / Main Controller Board
System: TDC 3000, HPM/APM, Experion PKS legacy
Mounting: Slot-in card cage installation
Power: Backplane powered (24 VDC class)
Operating temperature: 0 °C to 60 °C typical
Key Features
Core processing for TDC 3000 nodes
Compatible with HPM and APM architectures
Industrial-grade construction for continuous operation
Direct replacement by exact part number
FAQ
System? TDC 3000 / HPM/APM.
Function? Main processor / controller board.
Mounting? Chassis card slot.
Installation Guide
Power down the chassis if required by procedure.
Insert the processor into the designated slot.
Secure the board and restore power.
Verify status indicators and network communication.
Confirm application loading and node operation.
Selection Tips
Match the exact -301 variant to the installed system.
Confirm memory and processor family compatibility.
