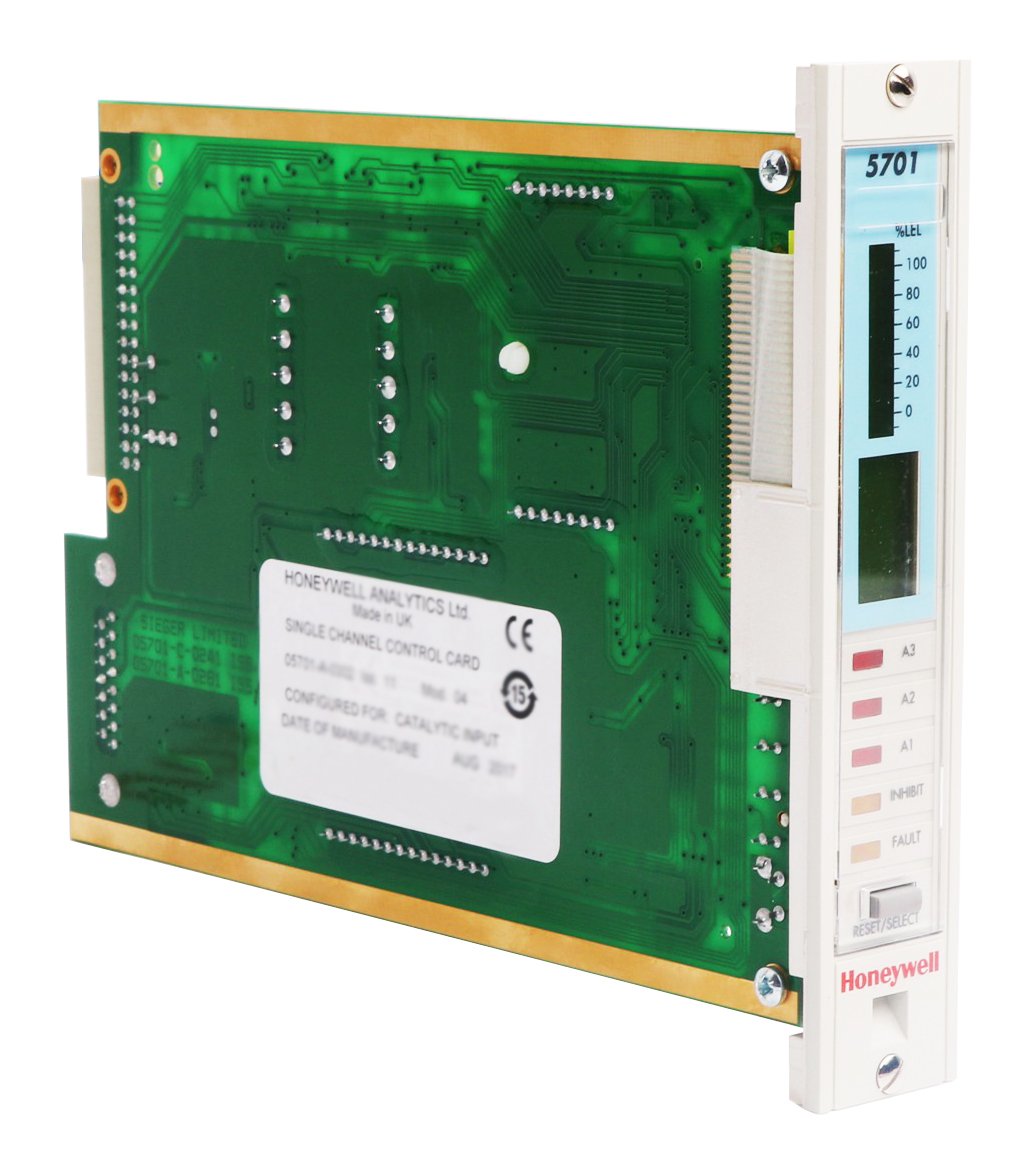

Honeywell 05701-A-0302 Single Channel Control Card

Honeywell 05701-A-0302 Single Channel Control Card

  • Manufacturer: Honeywell

  • Product No.: 05701-A-0302

  • Product Type: Control Card

  • Product Origin: USA

  • Payment: T/T

  • Weight: 165g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product Description

The Honeywell 05701-A-0302 Single Channel Control Card is designed for catalytic gas detection applications. It serves as a control interface for gas sensors, processing signals and triggering alarms when hazardous gas levels are detected. The card features real-time monitoring, alarm notifications, and user-friendly controls for industrial environments.

Technical Specifications

  • Display:

    • Analog Display: 25-segment

    • Digital Display: Four-character

    • Message Display: Four-character

    • Icon Section: Power On/Card Select

  • Alarm Indicators:

    • LEDs: A1, A2, A3 gas alarms

    • Fault and Inhibit indicators

  • Control Features:

    • Push-Button: Alarm Reset/Card Select

    • Alarm Setting Point Resolution: 1% FSD steps

  • Power Requirements:

    • Catalytic: 3.75W (typical) (includes catalytic sensor)

    • 4-20mA: 3.25W (typical)

    • DC Supply: 18V to 32V DC

    • Power Consumption:

  • Performance & Stability:

    • Electronic Drift: Less than ±2% / 6 months

  • Physical Dimensions:

    • Size: 17cm x 2.5cm x 11.2cm

    • Weight: 0.165 Kg

    • Shipping Weight: 1.5 Kg
