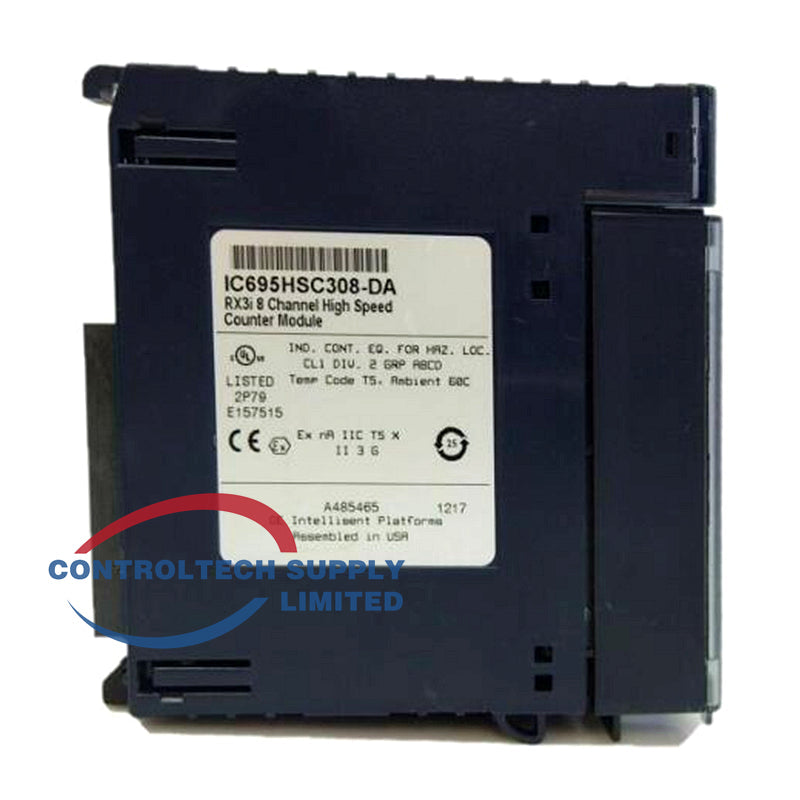

High Speed Counter Module IC695HSC308 GE RX3i 8 Counters
High Speed Counter Module IC695HSC308 GE RX3i 8 Counters
Manufacturer: GE
Product No.: IC695HSC308
Product Type: High Speed Counter Module
Product Origin: USA
Payment: T/T
Weight: 1900g
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The GE IC695HSC308 is a High Speed Counter module for PACSystems RX3i. It provides up to 8 configurable counters, 16 high-speed digital inputs and 14 digital outputs, supporting rates up to 1.5 MHz for encoder and pulse applications.
Technical Specs
- Counters: 8 configurable types
- Count range: −2 147 483 648 to +2 147 483 647
- Max count rate: 1.5 MHz class
- Inputs: 16 high-speed digital
- Outputs: 14 digital sourcing
- Input voltage: 4.7–5.5 V DC / 10–26.4 V DC class
- System: PACSystems RX3i
Key Features
- High-speed counting up to 1.5 MHz
- Multiple counter types and user-defined modes
- Integrated high-speed inputs and outputs
- Suitable for encoder and motion-related applications
FAQ
- Counters? 8 configurable.
- Max rate? 1.5 MHz class.
- System? RX3i.
Installation Guide
- Install the module in an RX3i I/O slot.
- Wire high-speed inputs and outputs according to the application.
- Configure counter type, range and triggers in the software.
- Power up and verify count operation.
- Test under actual process speeds.
Selection Tips
- Select for high-speed pulse or encoder counting needs.
- Confirm input voltage levels match field devices.
- Critical module for RX3i high-speed counting applications.
