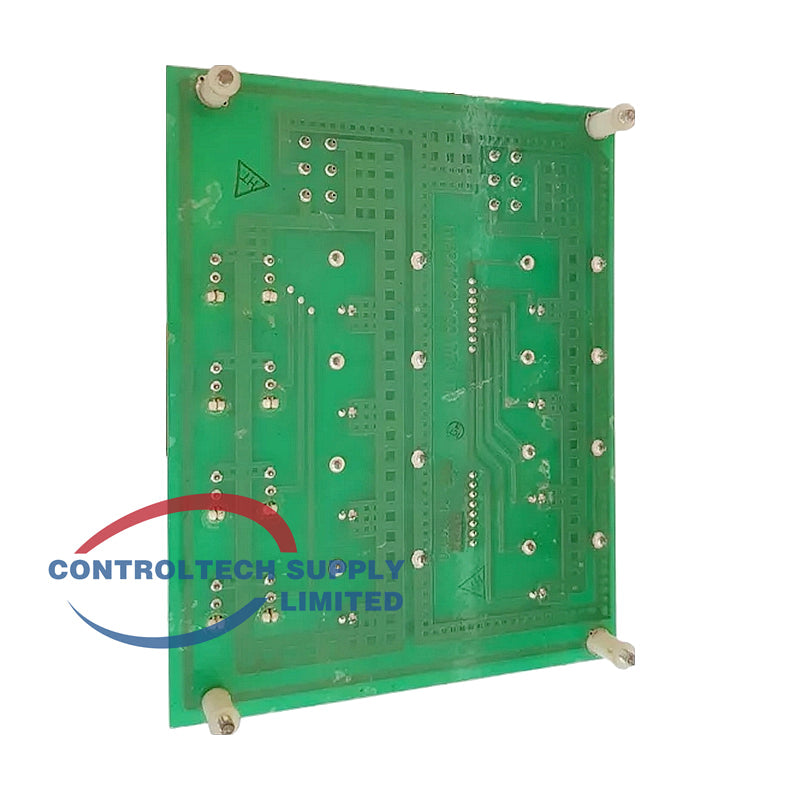

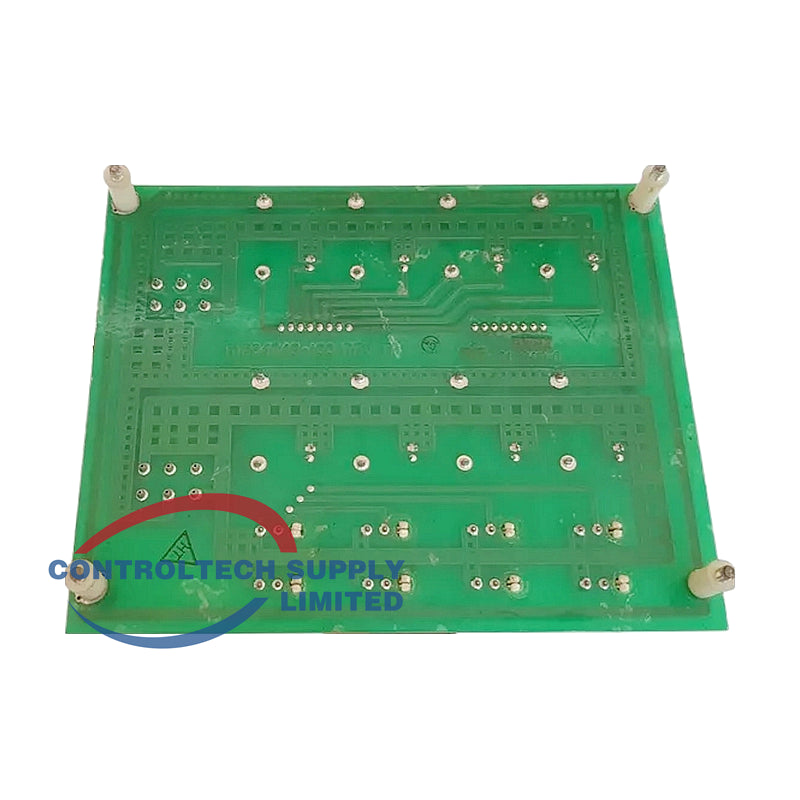

GI Power Distribution 51304644-175 Honeywell

Product Overview

Honeywell 51304644-175 is a Galvanic Isolation Power Distribution Assembly that supplies individually fused 24 VDC power to galvanically isolated FTAs. It supports higher power demand of GI field termination assemblies.

Technical Specs

• Type: GI Power Distribution Assembly
• Output: Individually fused 24 VDC
• Application: Power for Galvanically Isolated FTAs
• Version: CE compliant, conformally coated
• Mounting: FTA mounting channel (maintain spacing)

Key Features

• Individually fused outputs for protection
• Supplies power directly to GI FTAs
• Prevents ground loops and interference
• Designed for increased GI FTA power demand

FAQ

• What does it power? Galvanically Isolated FTAs.
• Voltage? 24 VDC fused outputs.
• Why needed? GI FTAs require more power than standard FTAs.

Installation Guide

1. Mount on the FTA channel with proper spacing from FTAs.
2. Connect input power and distribute to GI FTAs.
3. Verify fuse ratings and polarity.
4. Power up and check voltage at each output.
5. Secure all connections.

Selection Tips

• Required when using galvanically isolated FTAs.
• Maintain recommended spacing from FTAs.
• Keep as spare for GI-equipped cabinets.
