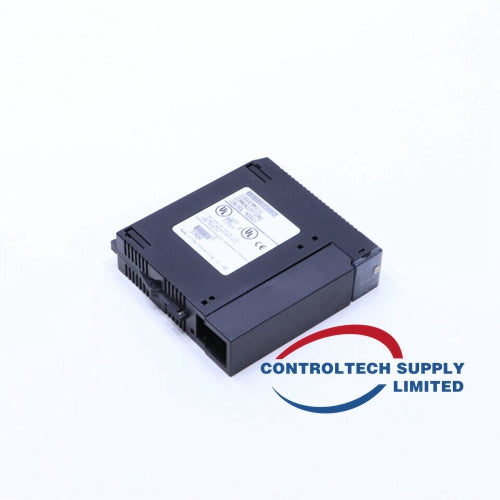

GE IS420UCSBH1A UCSB Controller Module
GE IS420UCSBH1A UCSB Controller Module
Manufacturer: GE
Product No.: IS420UCSBH1A
Product Type: UCSB Controller Module
Product Origin: USA
Payment: T/T
Weight: 1100g
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The GE IS420UCSBH1A UCSB Controller Module is a high-performance industrial controller designed by General Electric (GE) for use in Mark VIe, EX2100e, and LS2100e distributed control systems. It functions as a core processing unit that executes control system logic, manages communication with I/O modules, and ensures real-time operation in mission-critical automation applications such as power generation and turbine control. The module features a rugged, fanless and battery-free design optimized for harsh environments with wide temperature ranges, and supports precision timing synchronization via IEEE 1588 protocol.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IS420UCSBH1A |
| Manufacturer | General Electric (GE) |
| Product Type | UCSB Controller Module (Universal Control Subsystem Board) |
| Compatible Series | Mark VIe, EX2100e, LS2100e Control Systems |
| Processor | Intel EP80579, 600 MHz |
| Memory | 256 MB DDR2 SDRAM with ECC + 2 GB NAND Flash |
| Operating System | QNX Neutrino Real-Time OS |
| Clock Sync | IEEE 1588 synchronization (±100 µs accuracy) |
| Execution Speed | Up to ~100,000 rungs/blocks per second (typical) |
| Communication Interfaces | IONet (proprietary high-speed Ethernet), standard Ethernet; optional RS-232C |
| Power Supply | 18 – 30 V DC (24 – 28 V nominal), max ~1.5 A |
| Typical Power Consumption | 15.6 W nominal, ~26.7 W peak |
| Dimensions | 150 × 100 × 50 mm (approx.) |
| Weight | 0.8 kg – ~1.1 kg depending on source |
| Operating Temp. Range | –40 °C to +85 °C (–40 °F to +185 °F) |
| Cooling | Fanless natural convection |
| Mounting | Panel or VME rack installation |
| Certifications | UL E207685 (Class I, Division 2), ATEX Zone 2 Group IIC |
| Environmental | Designed for harsh industrial conditions (vibration, dust) |
