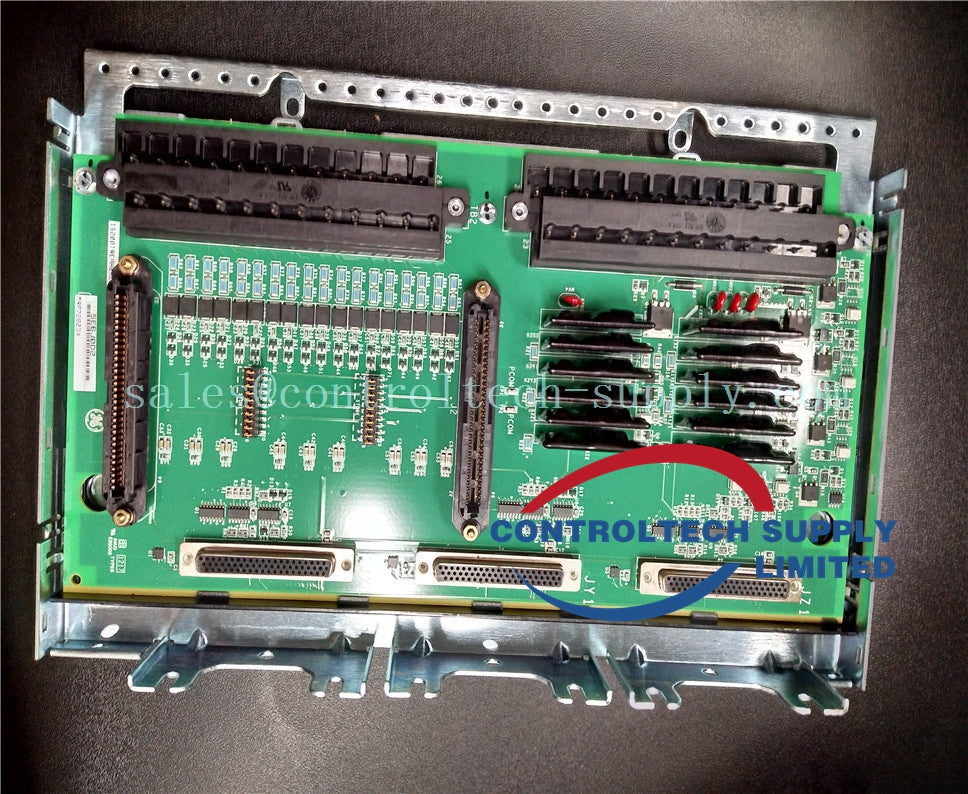

GE IS200TTURH1CFD (IS230TNTRH1C) Turbine Specific Primary Trip Board

Specifications

• Part No.: IS200TTURH1CFD

• Manufacturer: General Electric

• Made in: United States of America (USA)

• Product Type: Turbine Specific Primary Trip Board

• Series: Mark VI

• Availability: In Stock

• Speed Sensor Range: MPU pulse rate from 2 Hz to 20 kHz

• Speed Sensor Accuracy: Pulse rate accuracy of 0.05%

• Speed Sensor Input Circuit Sensitivity: 27 mV pk

• Technology: Surface mount

• Dimensions: 8.26 cm (H) x 4.19 cm (W) x 12.1 cm (D)

• Operating Temperature: -30°C to 65°C

Functional Description

• Developed by GE for turbine protection within the Mark VI control system

• Acts as the Primary Turbine Protection Input terminal board

• Interfaces directly with the VTUR module

• Ensures precise protection functionality in high-performance turbine environments

• Compatibility:

• Works with TTURH1C and STUR boards

• Not compatible with DIN rail-mounted DTUR or other TTUR versions
