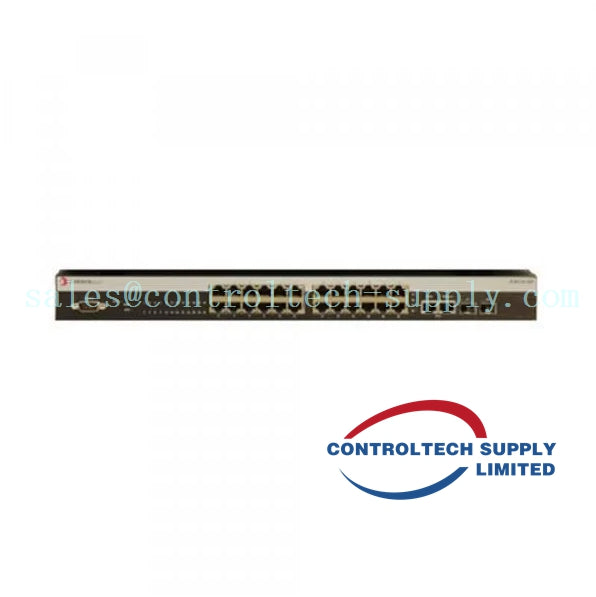

Foxboro A2H124-24P Layer 2 managed Ethernet Switch

Product Overview

• Industrial-grade Layer 2 managed Ethernet switch

• Designed for automation and enterprise networks

• Supports Power over Ethernet (PoE) for IP phones, cameras, and wireless APs

• Stackable architecture for scalable deployment (up to 8 units)

• Origin: USA

• Warranty: 12 months

• Form factor: 1U rack-mountable

Technical Specifications

• Port Configuration:

• 24 × 10/100Base-TX RJ-45 (PoE-enabled)

• 2 × 10/100/1000Base-T RJ-45 uplink ports

• 2 × 1000Base-X SFP uplink ports

• PoE Support:

• IEEE 802.3af compliant

• Per-port output: up to 15.4 W

• Total PoE power budget: up to 446 W

• Typical power consumption: ~47 W

• Performance:

• Switching capacity: 17.6 Gbps (standalone), 140.8 Gbps (stacked)

• Forwarding rate: 12.8 Mpps (standalone), 104.8 Mpps (stacked)

• MAC address table: 8,000 entries

• VLAN & QoS:

• VLAN support: up to 4096 VLANs (IEEE 802.1Q)

• Jumbo frame support: up to 9216 bytes

• QoS: 8 priority queues per port

• Scheduling: strict priority & weighted round-robin

• Security Features:

• IEEE 802.1X authentication

• MAC-based filtering

• RADIUS, SSHv2, SSL encryption

• Management Interfaces:

• WebView GUI

• CLI

• SNMP v1/v2/v3

• Telnet, SSH

• Environmental Conditions:

• Operating temperature: 0°C to +50°C

• Humidity: 5% to 95%, non-condensing

• Heat dissipation: ~1580 BTU/hr

• MTBF: 169,150 hours

• Physical Dimensions:

• Width: 44.1 cm

• Height: 4.4 cm

• Depth: 36.85 cm

• Weight: 3.1 kg

• Power Input:

• Voltage: 100–240V AC

• Frequency: 50–60 Hz

• Redundant Power Supply (RPS): supported
