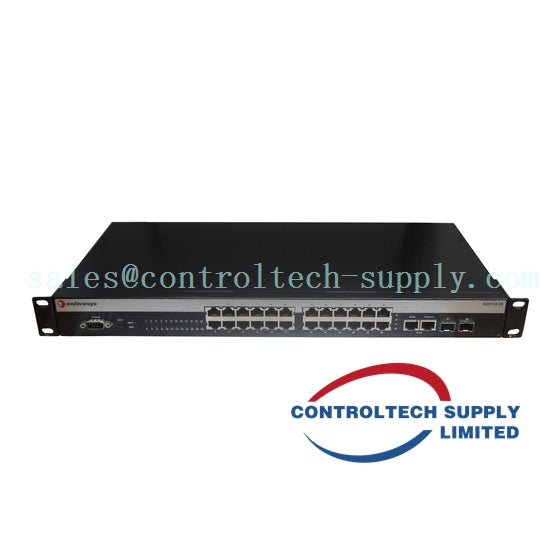

Foxboro A2H124-24 Layer 2 Managed Fast Ethernet Switch

Product Overview

• Industrial-grade Layer 2 managed Fast Ethernet switch

• Designed for edge networking in automation and enterprise environments

• Supports stacking up to 8 units for scalable deployment

• Ideal for distributed control systems, smart manufacturing, and utility networks

• Origin: USA

• Warranty: 12 months

• Mounting: 1U rack-mountable

Technical Specifications

• Port Configuration:

• 24 × 10/100Base-T RJ-45 Ethernet ports

• 2 × 10/100/1000Base-T RJ-45 uplink/stacking ports

• 1 × Console port (DB9)

• 1 × RPS port for redundant power supply

• Performance:

• Switching capacity: 17.6 Gbps (standalone), 140.8 Gbps (stacked)

• Forwarding rate: 13.1 Mpps (standalone), 104.8 Mpps (stacked)

• MAC address table: 8,000 entries

• Jumbo frame support: up to 9216 bytes

• Power & Consumption:

• Input voltage: 100–240V AC, 50–60 Hz

• Power consumption: approx. 30 W

• Optional redundant power supply support

• Environmental Conditions:

• Operating temperature: 0°C to +50°C

• Storage temperature: -40°C to +70°C

• Humidity: 10% to 90%, non-condensing

• Management & Protocols:

• Web GUI, CLI, SNMP v1/v2/v3, RMON

• VLAN (IEEE 802.1Q), QoS (IEEE 802.1p)

• STP/RSTP, IGMP snooping, LACP, port mirroring

• Security Features:

• IEEE 802.1X authentication

• MAC-based access control

• Access Control Lists (ACLs)

• RADIUS support

• Physical Dimensions:

• Width: 44.1 cm

• Height: 4.4 cm

• Depth: 21.0 cm

• Weight: 2.7 kg
