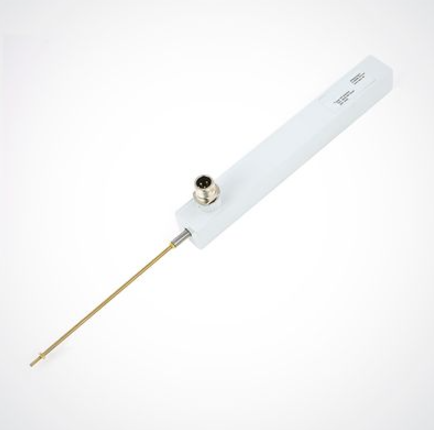

EPRO PR9350/04 Inductive Sensor

EPRO PR9350/04:

Product Description

• The EPRO PR9350/04 is an inductive sensor designed for critical turbomachinery applications such as steam, gas, and hydro turbines, compressors, pumps, and fans.
• It measures radial and axial shaft dynamic displacement, position, and eccentricity.
• Built to operate under tough environmental conditions.

Technical Specifications

• Dynamic Performance Range: ±50 mm
• Sensitivity: 270 mV/V
• Linearity Error: 2.5%
• Operating Temperature Range: -20 to 100°C (-4 to 212°F)
• Temperature Error: < 3%
• Supply Voltage: 5 Vrms
• Carrier Frequency: 3 to 5 kHz
• Capacitance: 250 pF (each winding)
• Weight: 370 grams
• Dimensions: 197 x 229 x 112 mm
