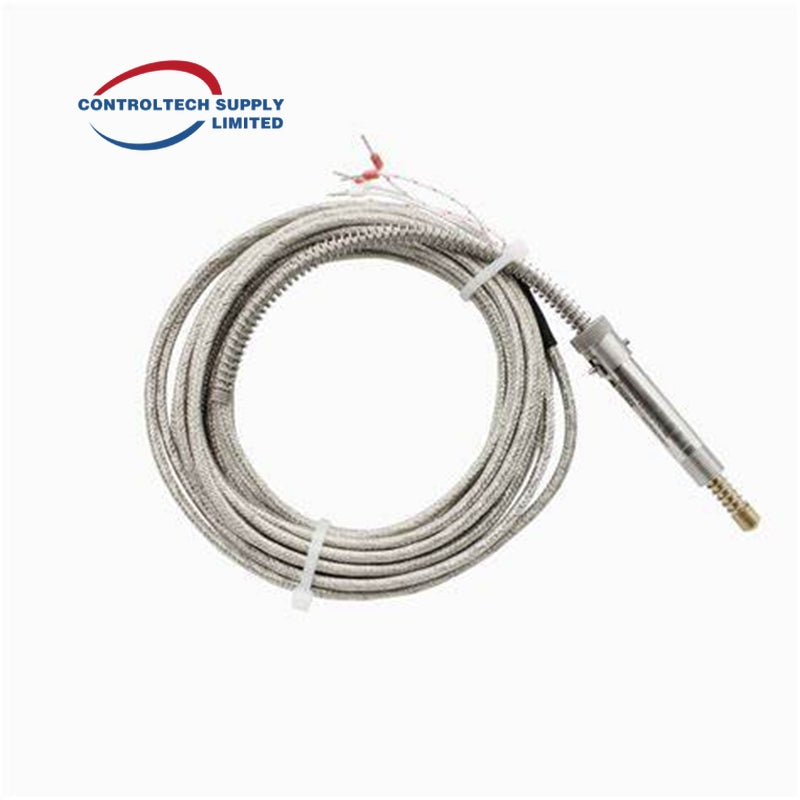

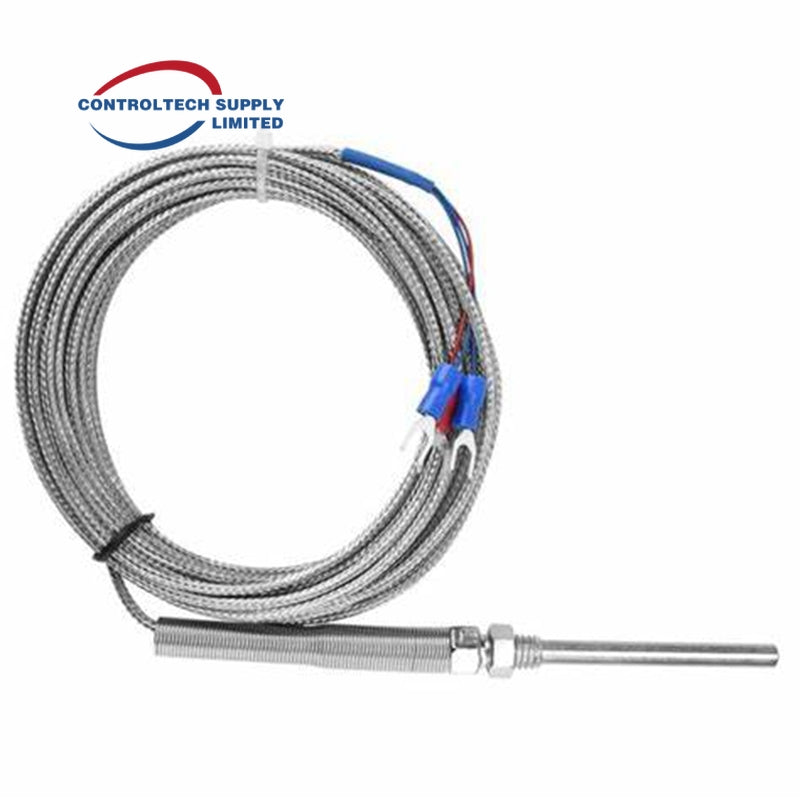

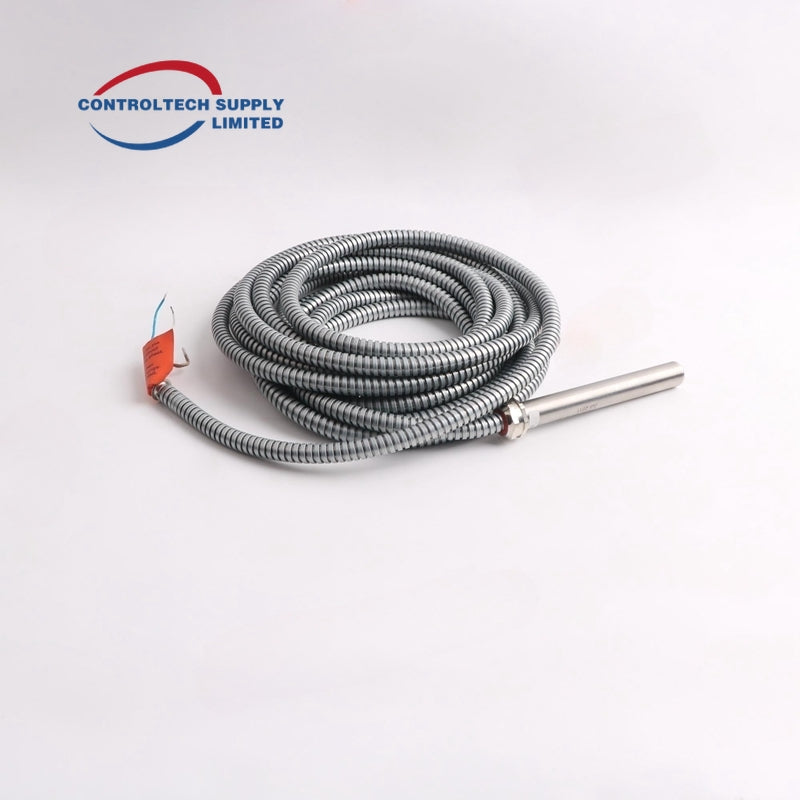

EPRO PR6423/018-010 Axial Vibration Sensor

Product Description

EPRO PR6423/018-010 is an Axial Vibration Sensor designed for high-precision measurement in critical rotating machinery applications. It ensures accurate monitoring of shaft dynamics, including radial and axial displacement, position, eccentricity, and speed. This sensor is widely used in turbomachinery, such as steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans.

Technical Specifications

• Model Number: PR6423/018-010

• Measurement Range: Up to 2mm, with some models supporting up to 3mm (peak-to-peak)

• Frequency Range: 10–1000Hz and 4–1000Hz

• Sensitivity: Varies depending on the amplifier type

• Maximum Amplitude: Up to 2mm (some models up to 3mm)

• Operating Temperature: -35°C to +380°C
