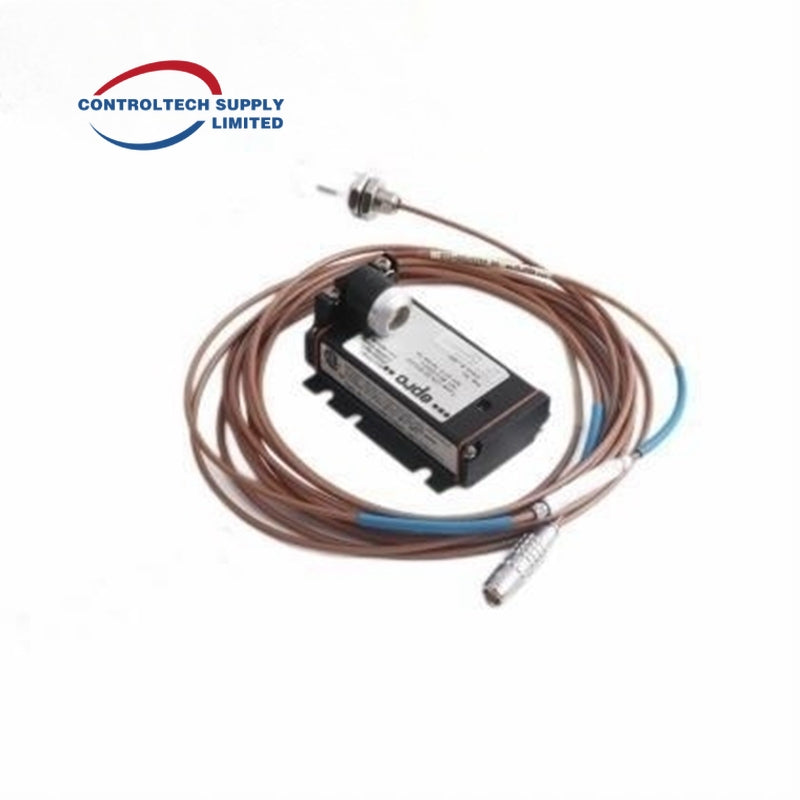

EPRO PR6423/009-010-CN Eddy Current Sensor

Product Description

EPRO PR6423/009-010-CN is an Eddy Current Sensor designed for high-precision measurement in critical rotating machinery applications. It ensures accurate monitoring of shaft dynamics, including radial and axial displacement, position, eccentricity, and speed. This sensor is widely used in turbomachinery, such as steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans.

Technical Specifications

• Model Number: PR6423/009-010-CN

• Measurement Range: 2 mm (80 mils)

• Initial Air Gap: 0.5 mm (20 mils)

• Incremental Scale Factor (ISF): 8 V/mm (203.2 mV/mil) ± 5%

• Deviation from Best Fit Straight Line (DSL): ± 0.025 mm (± 1 mil)

• Minimum Shaft Diameter: 25 mm (0.79”)

• Target Material: Ferromagnetic Steel (42CrMo4 / AISI 4140)

• Protection Class: IP66 (IEC 60529)

• Operating Temperature Range:

• Sensor: -35°C to +180°C (-31°F to 356°F)

• Cable & Connector: -35°C to +150°C (-31°F to 302°F)
