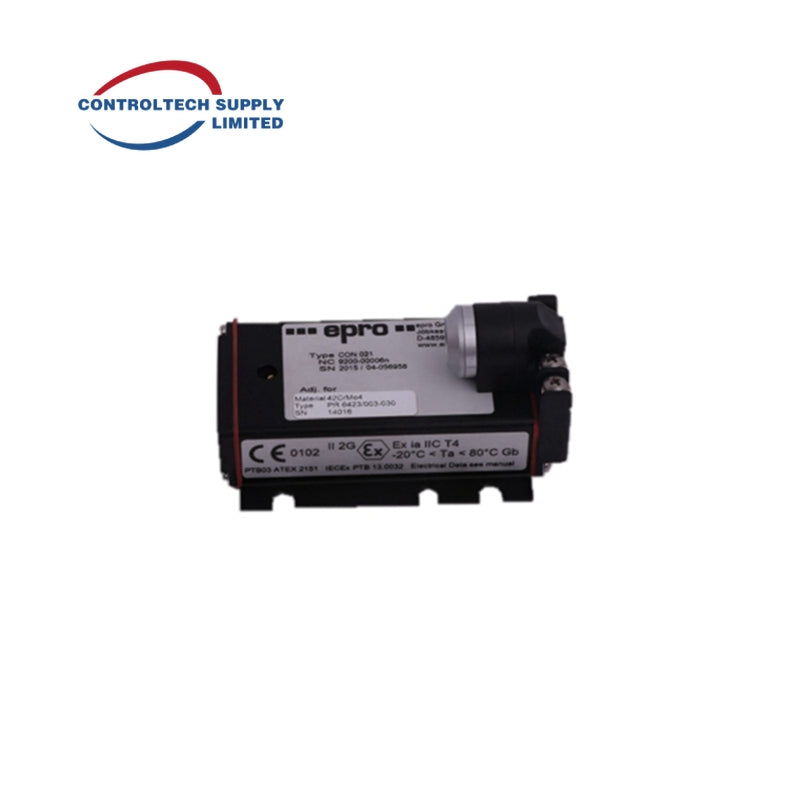

EPRO PR6423/002-030+CON021 Eddy Current Sensor System

Product Description

EPRO PR6423/002-030+CON021 is an Eddy Current Sensor System designed for high-precision measurement in critical rotating equipment applications. It combines the PR6423/002-030 sensor with the CON021 signal converter, ensuring accurate monitoring of shaft dynamics, including radial and axial displacement, position, eccentricity, and speed.

Technical Specifications

• Model Number: PR6423/002-030+CON021

• Sensor Type: Eddy Current Sensor

• Measurement Range: 8 mm

• Accuracy: ±1%

• Output Signal: 0.5 to 4.5 V

• Power Supply: DC 12V to 24V

• Operating Temperature: -40°C to +85°C

• Weight: 0.8 kg

• Sensor Tip Diameter: 8 mm

• Case Thread: M10x1

• Cable Length: 8 meters (non-armored)

• Cable Connector: Lemo

• Response Time: <1 ms

• Linearity: ±0.5%

• Repeatability: ±0.2%
