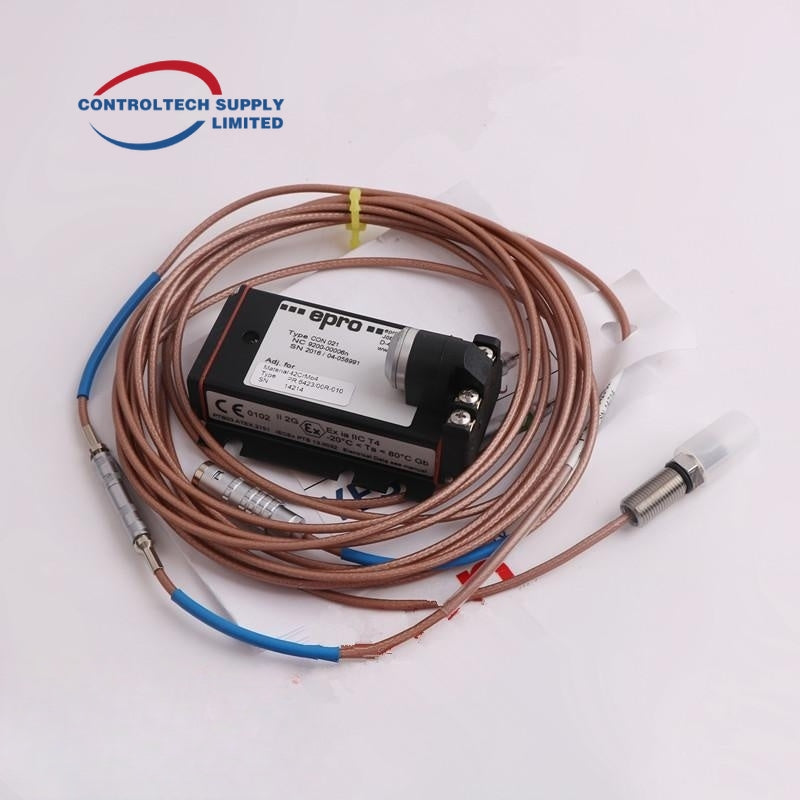

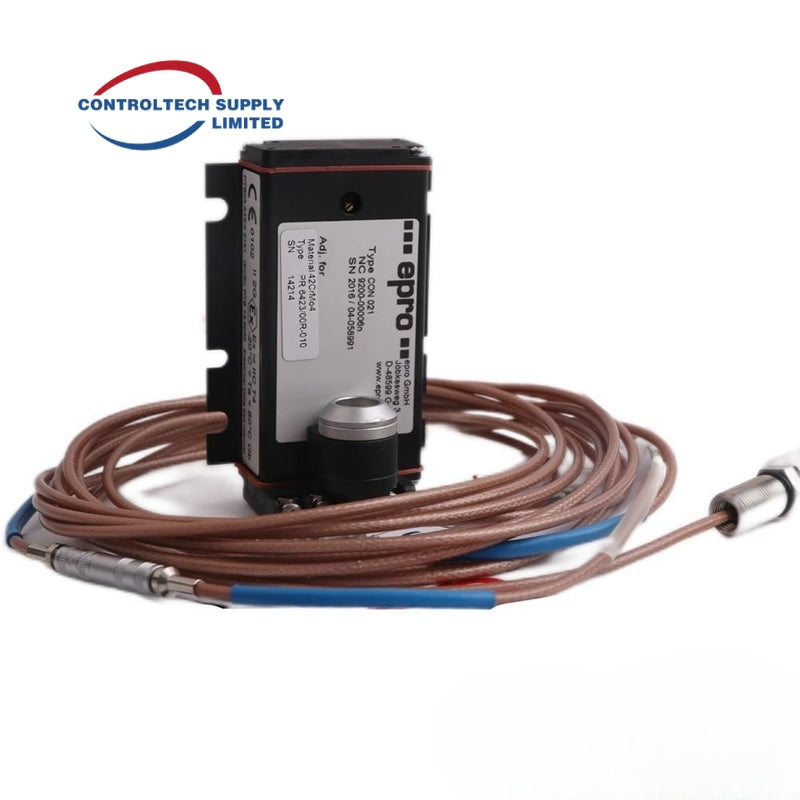

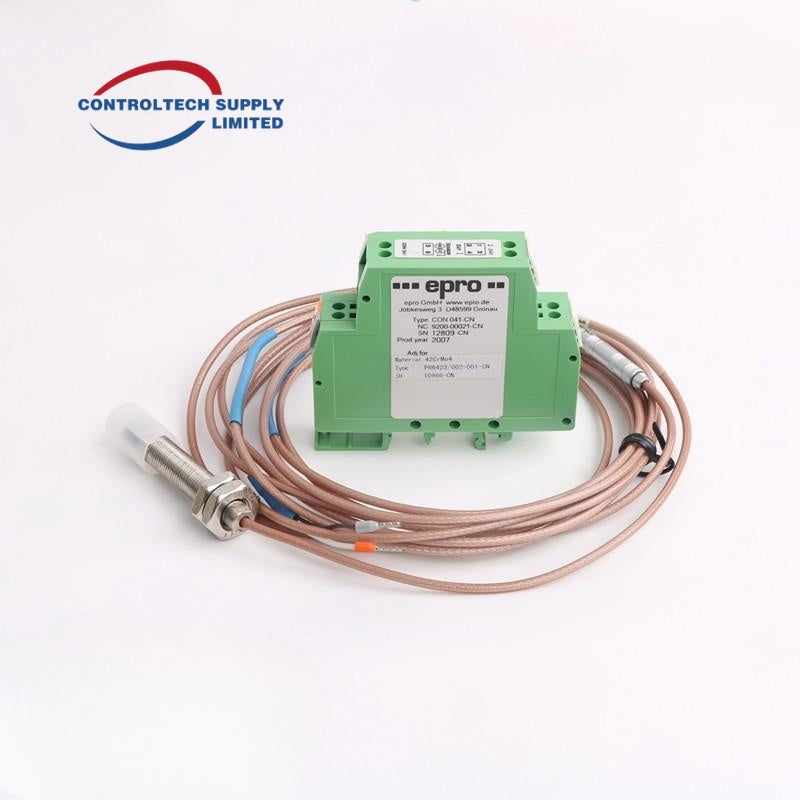

EPRO CON041 Eddy Current Signal Converter

Product Description

EPRO CON041 is an Eddy Current Signal Converter designed for critical turbomachinery applications such as steam, gas, and hydro turbines, compressors, pumps, and fans. It ensures high-precision measurement of radial and axial shaft displacement, position, eccentricity, and speed.

Technical Specifications

• Model Number: CON041

• Measurement Range: 1.0mm to 24.0mm (Standard & Extended Ranges)

• Linearity Error: ≤ 1.5% (Standard Range), ≤ 2.5% (Extended Range)

• Frequency Range (-3 dB): 0 to 20,000 Hz

• Rise Time: <15 μs

• Operating Temperature: -30°C to 100°C (-22°F to 212°F)

• Shock and Vibration Resistance: 5g @ 60 Hz @ 25°C (77°F)

• Protection Class: IP20

• Supply Voltage Range: -23V to -32V (Output Range -4V to -20V)

• Housing Material: PA 6.6

• Weight: ~60 grams (2.12 oz)
