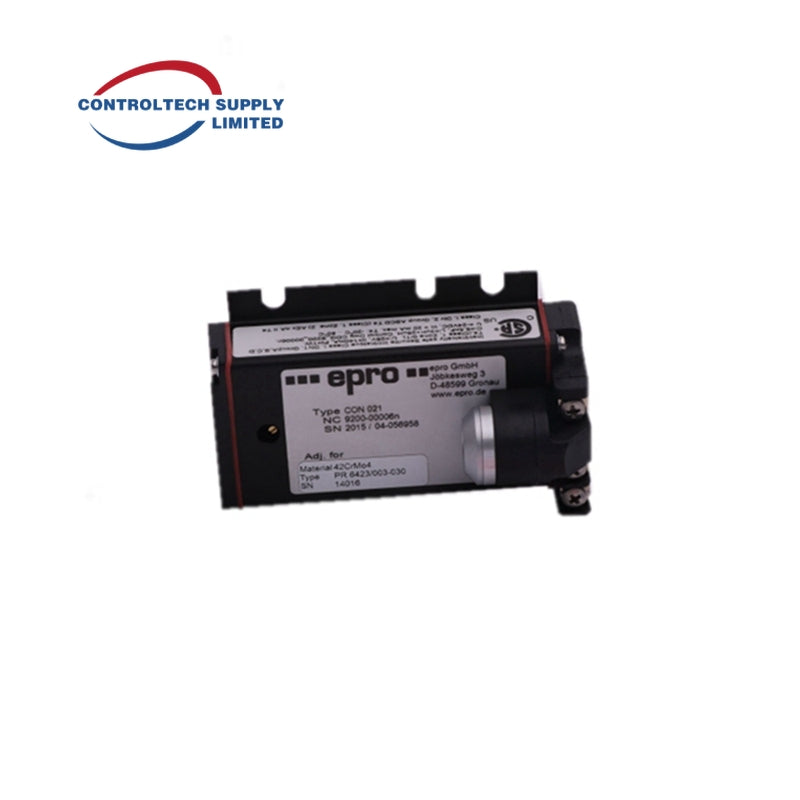

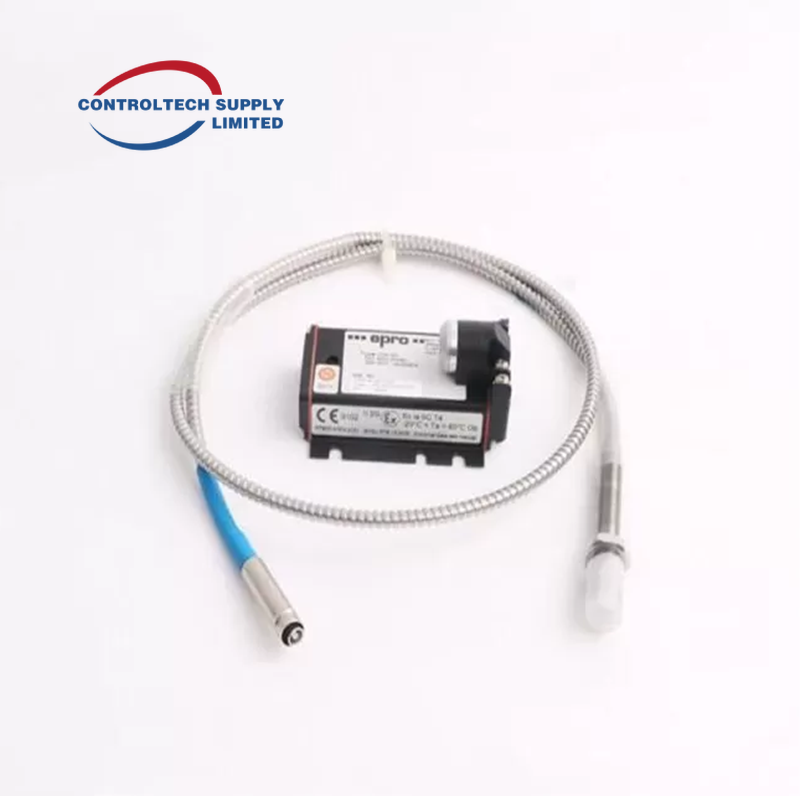

EPRO CON021/916-160 Eddy Current Signal Converter

Product Description

EPRO CON021/916-160 is an Eddy Current Signal Converter designed for critical turbomachinery applications such as steam, gas, and hydro turbines, compressors, pumps, and fans. It ensures high-precision measurement of radial and axial shaft displacement, position, eccentricity, and speed.

Technical Specifications

• Model Number: CON021/916-160

• Measurement Range: 16.0mm (Extended Range)

• Linearity Error: ≤ 2.0%

• Frequency Range (-3 dB): 0 to 20,000 Hz

• Rise Time: <15 μs

• Operating Temperature: -30°C to 100°C (-22°F to 212°F)

• Shock and Vibration Resistance: 5g @ 60 Hz @ 25°C (77°F)

• Protection Class: IP20

• Supply Voltage Range: -23V to -32V (Output Range -4V to -20V)

• Housing Material: LMgSi 0.5 F22

• Weight: ~120 grams (4.24 oz)

• Mounting Type: 4 Screws M5x20 (Included in Delivery)
