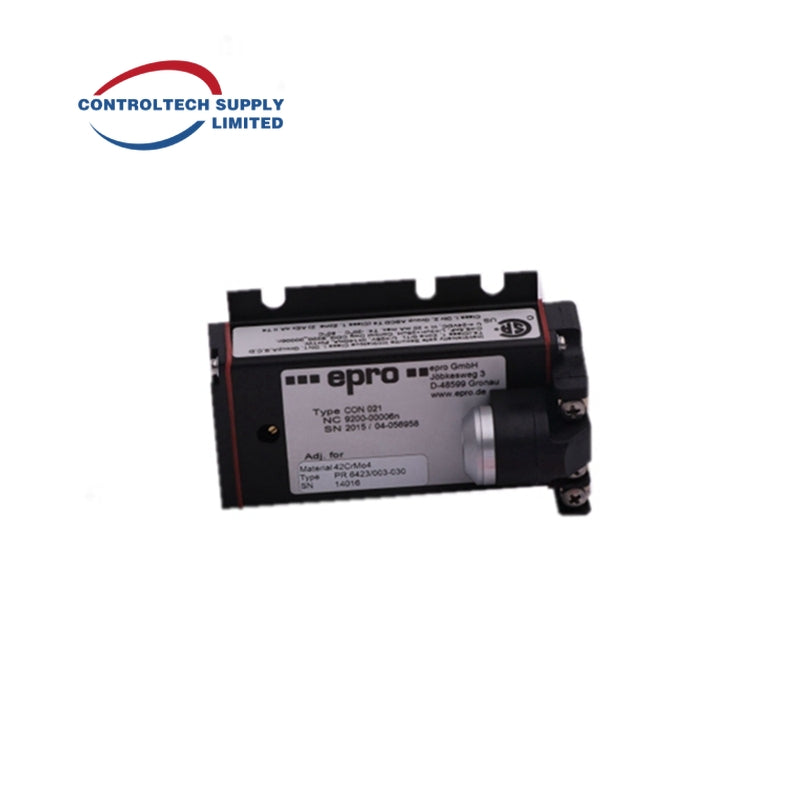

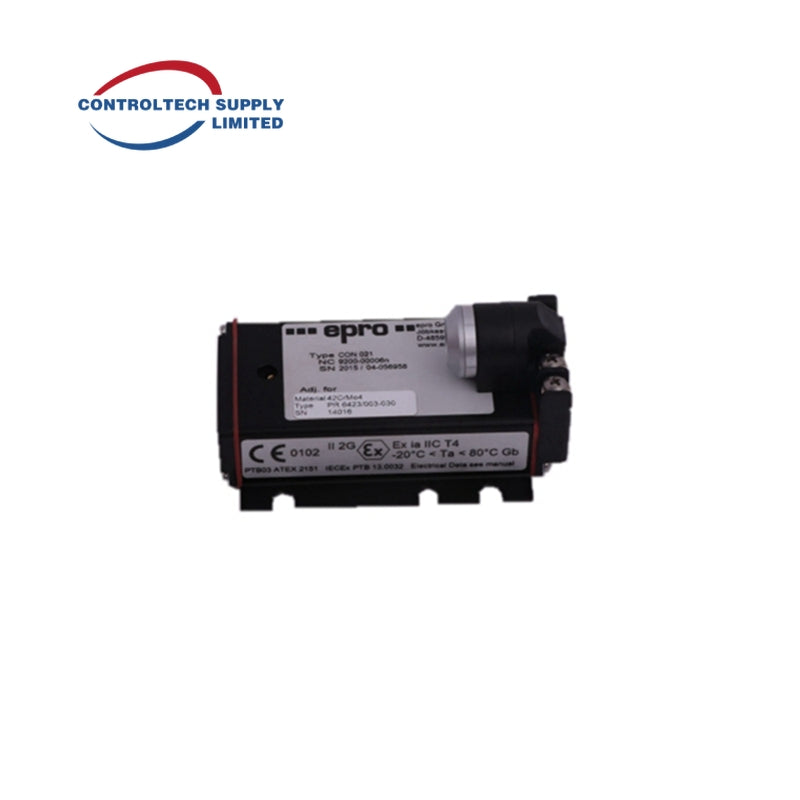

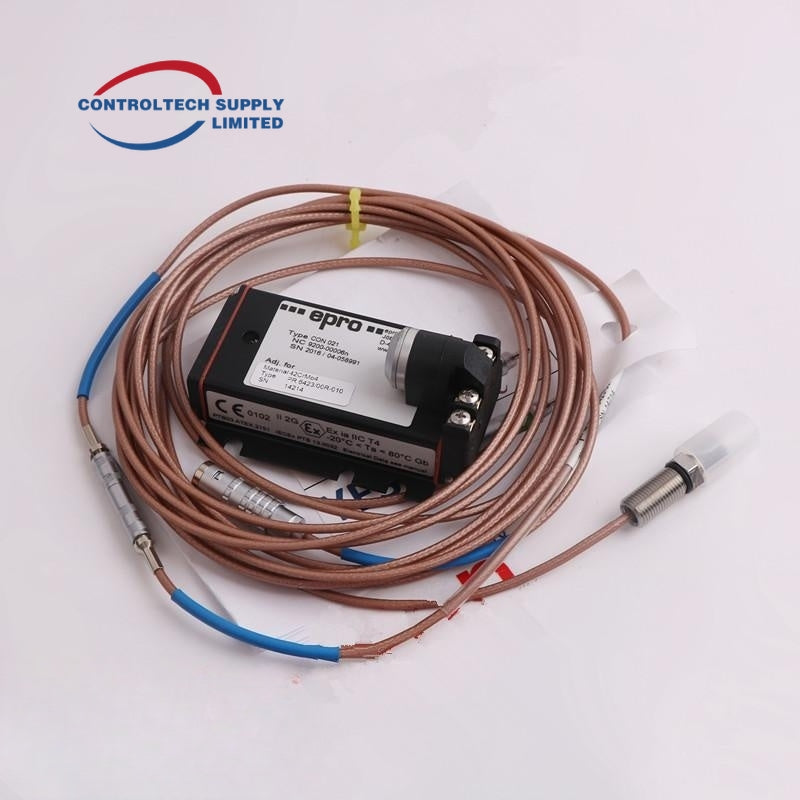

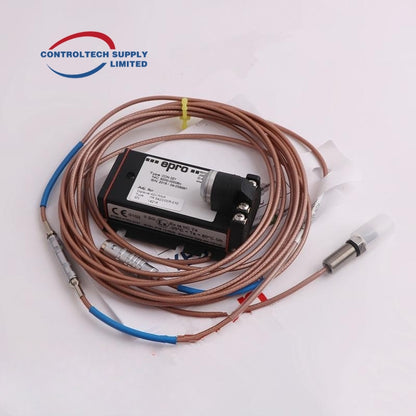

EPRO CON011/916-120+PR6426/010-140 Eddy Current Sensor

Product Description

EPRO CON011/916-120+PR6426/010-140 is a 32mm Eddy Current Sensor System designed for high-precision measurement in critical rotating machinery applications. It ensures accurate monitoring of shaft dynamics, including radial and axial displacement, position, eccentricity, and speed. This sensor system is widely used in turbomachinery, such as steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans.

Technical Specifications

• Model Number: CON011/916-120+PR6426/010-140

• Measurement Range: 0.1 to 10mm

• Sensitivity: 2 V/mm (50.8 mV/mil) ±1.5%

• Operating Temperature: -20°C to 80°C

• Protection Rating: IP65

• Material: Stainless Steel

• Weight: 0.15 kg

• Dimensions: 60 x 32 x 20 mm

• Shock and Vibration Resistance: 5g @ 60 Hz @ 25°C (77°F)

• Target Material: Ferromagnetic Steel (42CrMo4 / AISI 4140)
