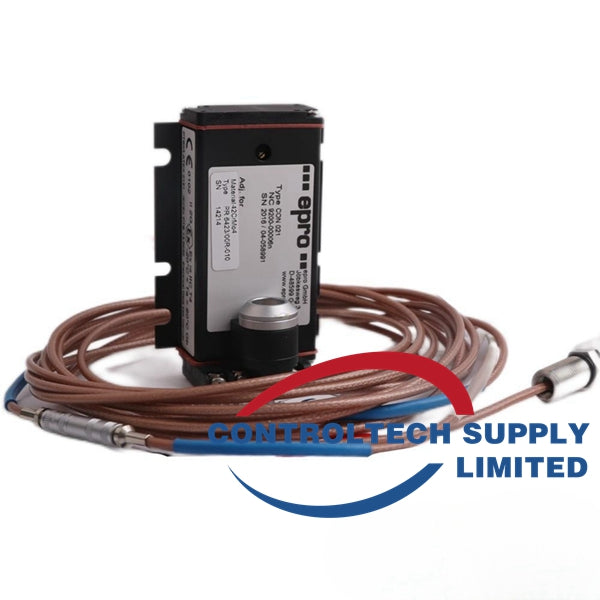

Emerson EPRO CON021 + PR6423/000-010 Eddy Current System
Emerson EPRO CON021 + PR6423/000-010 Eddy Current System
Manufacturer: EPRO
Product No.: CON021+PR6423/000-010
Product Type: Eddy Current System
Product Origin: Germany
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The EPRO CON021 + PR6423/000-010 is a high-precision eddy current displacement measurement system designed for critical turbomachinery applications. The system consists of the PR6423 non-contact eddy current sensor and the CON021 signal converter. It is primarily used for radial and axial shaft displacement, eccentricity, vibration, and position measurements in steam, gas, and hydro turbines, compressors, pumps, and motors.
This system provides excellent linearity, high temperature stability, and reliable operation in harsh industrial environments. It is widely applied in condition monitoring and protection systems for rotating machinery.
Technical Specifications
| Specification | Description |
|---|---|
| Sensor Model | PR6423/000-010 |
| Converter Model | CON021 |
| Measurement Principle | Eddy current (non-contact) |
| Measuring Range | 0 to 10 mm |
| Sensitivity | 2 V/mm (200 mV/mil) |
| Output Signal | 0 to 20 V DC (proportional to displacement) |
| Linearity Deviation | ≤ ±1% of full scale |
| Frequency Range | DC to 10 kHz |
| Operating Temperature (Sensor) | -35°C to +180°C |
| Operating Temperature (Converter) | -35°C to +85°C |
| Supply Voltage (CON021) | -23 V DC to -32 V DC (typically -24 V DC) |
| Probe Thread Size | M10 × 1 |
| Cable Length (Integrated) | 1 meter |
| Protection Class (Sensor) | IP67 |
| Application | Shaft displacement, vibration, position, and eccentricity monitoring in turbomachinery |
