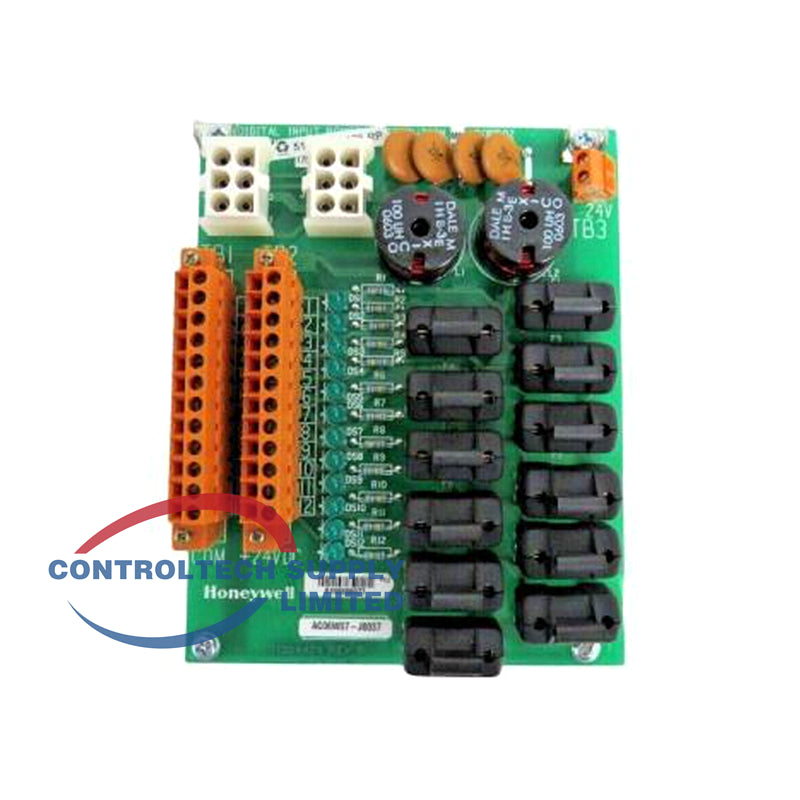

Digital Input Power Distribution 51304425-175 Honeywell

Product Overview

The Honeywell 51304425-175 is a digital input power distribution module used with Field Termination Assemblies in TDC 3000 and related systems. It distributes 24 VDC power for digital input sensing circuits.

Technical Specs

• Type: Digital Input Power Distribution
• Input voltage: 24 VDC
• Application: Power distribution for digital input FTAs
• Compatible systems: TDC 3000 / TPS Field Termination Assemblies
• Terminal style: Compression / push type (model dependent)

Key Features

• Provides dedicated power for digital input channels
• Supports Honeywell FTA architectures
• Designed for reliable industrial power distribution
• Integrates with existing TDC field termination setups

FAQ

• What does it power? Digital input sensing circuits via FTA.
• Voltage? 24 VDC.
• System? Honeywell TDC 3000 and compatible FTA systems.

Installation Guide

1. Install the module in the power distribution or FTA area.
2. Connect the 24 VDC supply input.
3. Wire the distributed power outputs to the digital input FTAs.
4. Verify polarity and secure all connections.
5. Power up and confirm voltage at the distribution points.

Selection Tips

• Use when replacing or expanding digital input power distribution.
• Confirm compatibility with your specific FTA models.
• Keep as a spare for critical digital input cabinets.
