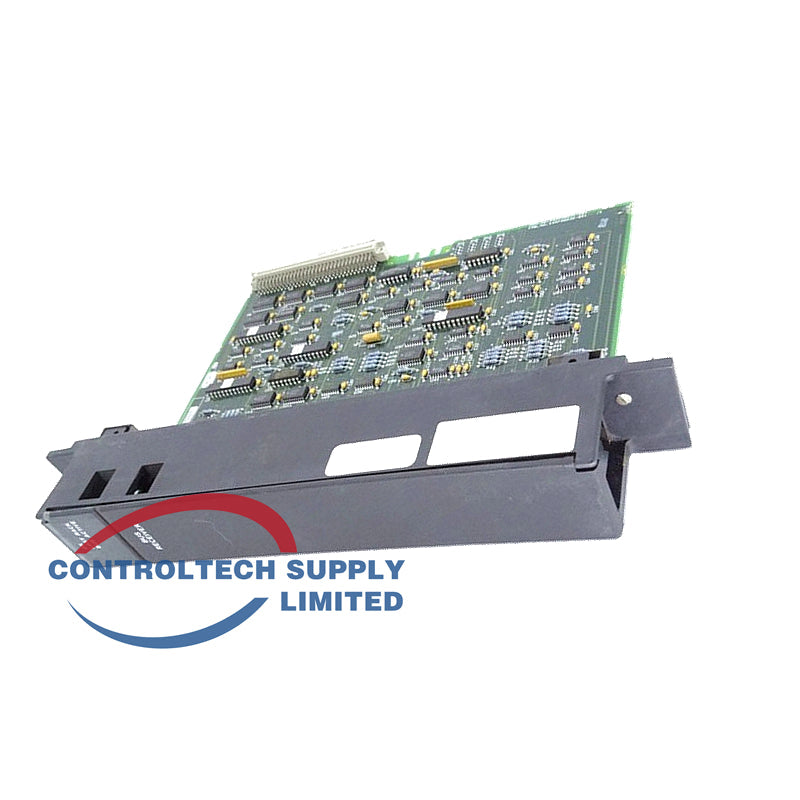

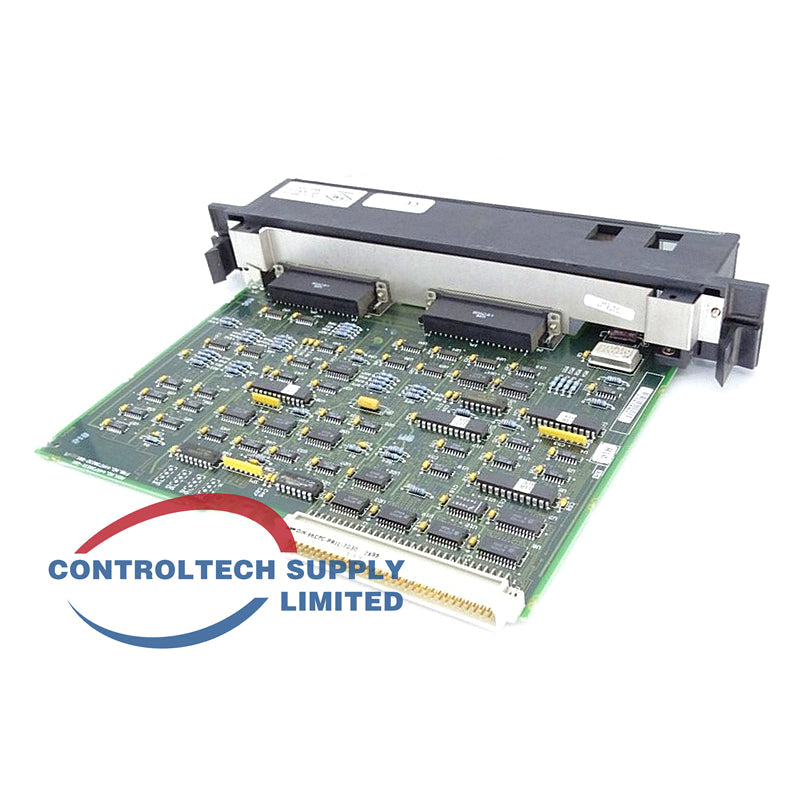

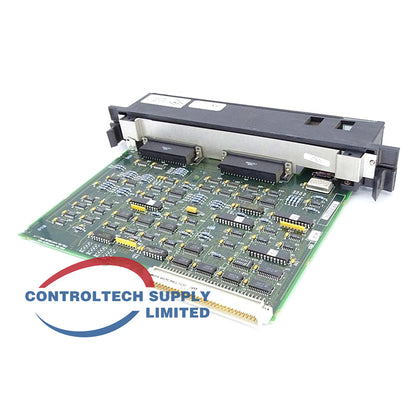

GE IC698BEM711 is a Bus Expansion Module for PACSystems RX7i. It enables high-speed parallel bus connection between the CPU rack and expansion racks, supporting deterministic data transfer and extended I/O capacity.
Technical Specs
Type: Bus Expansion / Receiver Module
Platform: PACSystems RX7i
Expansion: CPU rack to additional expansion racks
Power: Backplane powered (5 V DC class)
Status LEDs: Module, rack activity, bus port
Operating temperature: 0–60 °C class
Key Features
High-speed backplane expansion for RX7i
Deterministic data transfer to remote racks
Status LEDs for rapid diagnostics
Single-slot RX7i form factor
FAQ
Function? RX7i bus expansion module.
System? PACSystems RX7i.
Power? Backplane 5 V DC class.
Installation Guide
Install the module in the designated RX7i slot.
Connect the expansion cable to the remote rack.
Configure the expansion topology in the software.
Power up and verify LED status and communication.
Confirm remote I/O scan performance.
Selection Tips
Required for RX7i multi-rack expansion.
Confirm cable type and maximum length for the installation.
