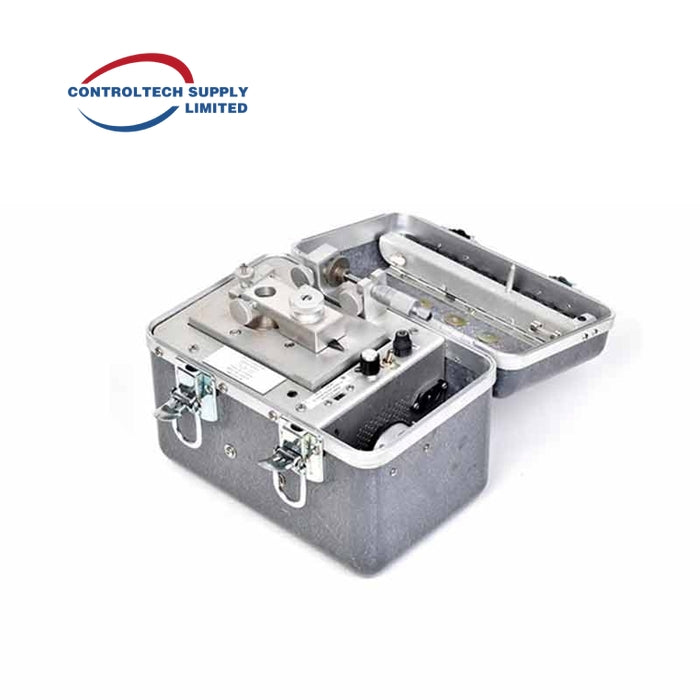

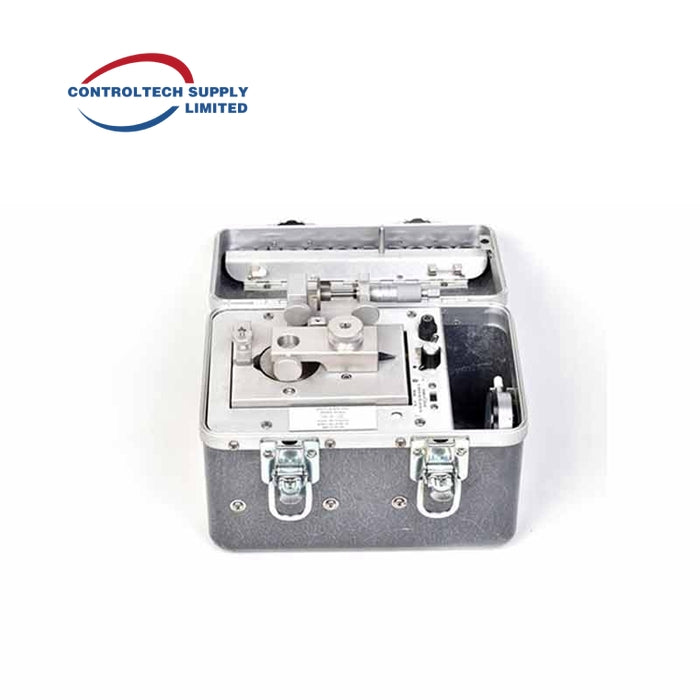

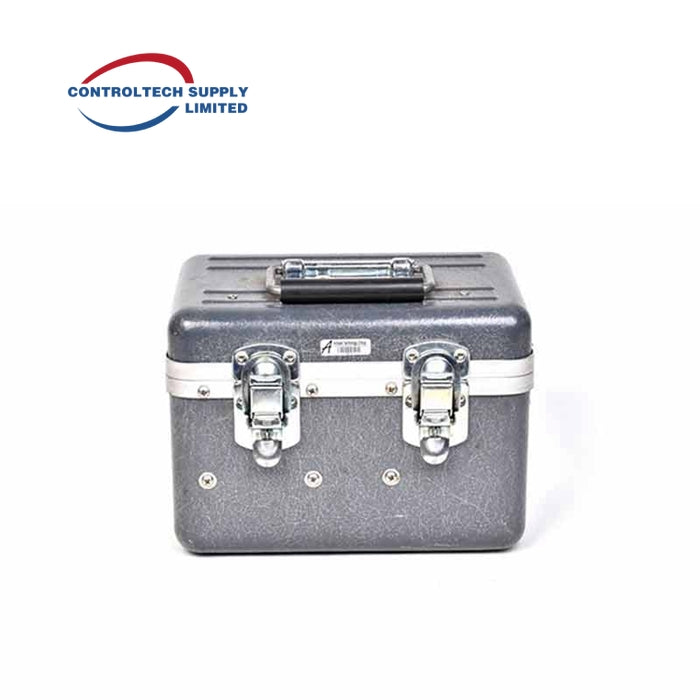

Bently Nevada TK-3E Proximity System Test Kit

The Bently Nevada TK-3E is a Proximity System Test Kit designed for calibrating machinery condition monitoring systems. Here are its key specifications and features:

Technical Specifications:

• Vibration Amplitude Range: 50 µm to 254 µm (2 to 10 mils) peak-to-peak

• Spindle Micrometer Range: 0 – 25.4 mm (0 – 1000 mils)

• Power Supply: 115/230 VAC, 50/60 Hz

• Dimensions: 300 x 200 x 100 mm

• Weight: 5 kg

• Operating Temperature Range: 0°C to 54°C (32°F to 130°F)

• Storage Temperature Range: -18°C to 65°C (0°F to 150°F)

• Humidity Exposure: 95% Non-Condensing

Features:

• Simulates Shaft Vibration and Position: Used for calibrating Bently Nevada machinery condition monitoring systems

• High Precision: Ensures accurate calibration and monitoring

• User-Friendly: Easy to use in the field with a magnetic base for stability

• Versatile: Can be used with various probe diameters (5 mm to 19 mm)
